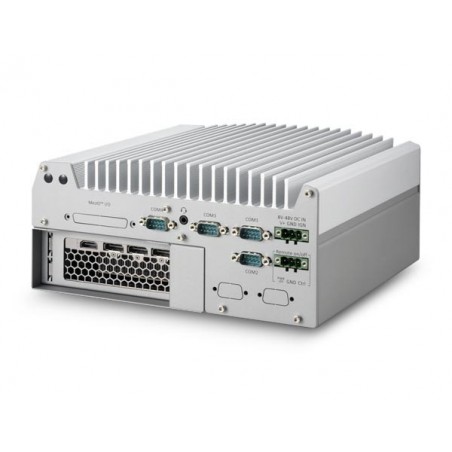

Embedded PC

Model 0: No PCI/PCIe expansion

Model 1: 1 x PCI/PCIe slot

Model 2: 2 x PCI/PCIe slots - supports GPU cards up to 130W

CPU: Intel® Core™ i9/i7/i5/i3 (14th/13th/12th generation, LGA1700, max. 65W TDP)

RAM 2x DDR5 SO-DIMM, ECC/non-ECC, up to 5600 MHz, max. 64 GB

2x 2.5" SATA

3x mSATA sockets

1x M.2 Key M for NVMe SSD

2x GbE LAN (upgradable to 2x 10 GbE LAN upon order)

Up to 2x PCI/PCIe slots

1x M.2 + 2x Full-size Mini PCIe

Support for CMI and CFM modules (including for I/O expansion, ignition control, and PoE+)

2x DisplayPort

1x VGA

Up to 8x USB (USB 3.2 Gen2 and USB 2.0)

4x COM (RS-232/422/485)

9–48 VDC input, with ignition control

Operating temperature: -40 °C to 70 °C

Certifications: Military: MIL-STD-810G, Transportation: EN50155 (EN 50121-3-2), Safety: UL, cUL, CB, IEC/EN 62368-1

Supports Intel® OpenVINO™

Intel® ESDQ Certified: Edge Insights for AMR Software Stack

The system is assembled according to your needs. Contact us for advice and pricing.

Small embedded PC, fanless with Intel Atom CPU

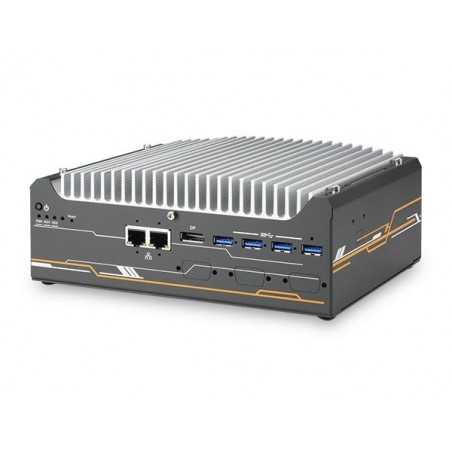

Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
SODIMM MAX. 32GB DDR4 3200
2x 2.5GbE
4x USB3.2 Gen 1 with screw-lock
1x M.2 2280
Gen4 x4 NVMe
1x 3.5"/2.5" SATA HDD/SSD storage
4-CH isolated DI and 4-CH isolated DO
TPM 2.0
VGA + DP dual display outputs
-25°C to 60°C fanless operation (Need special RAM and SSD)
Compact 212 x 165 x 80 mm
Can be wall and DIN mounted needs to be ordered special
1x3-PIN terminal 8~35Vdc remote ON/OFF

Fanless design (embedded heat pipe cooling solution)

12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)

Up to 60W GPU MXM module expansion

802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports

DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)

On/off delay control / configurable ignition current control

Supports TPM 2.0 and Time-Sensitive Networking (TSN)

Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported

Front-accessible I/O

1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT

1 x M.2 M for NVMe SSD

285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN

DC 9~36V input

CE, FCC Class A, E-mark

optional extras

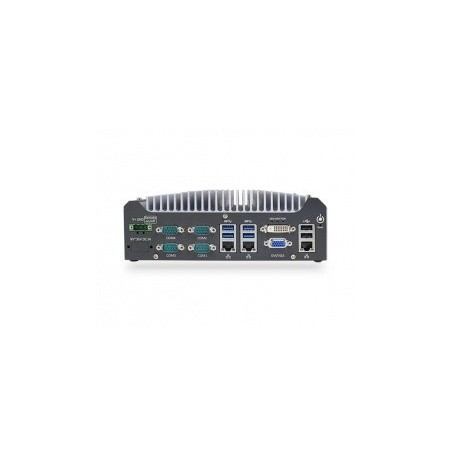

Intel® 6th-Gen Core™ i7/i5/i3
Kompakt 221x173x76mm
3x GbE og 4x USB 3.0
2x RS-232/ 422/ 485 og 2x RS-232
VGA + DVI
1x3.5" HDD eller 2.5" HDD/ SSD
8xDI/DO

Intel® Haswell & Core™ i3-5010U Broadwell ULT SoC
204-pin DDR3L-1600 SO-DIMM, up to 8GB
Fanless operation design with compact size
1 RS-232/422/485 and 1 RS-232 port
One 2.5” 9.5mm SATA HDD drive bay and mSATA interface
1 PCI Express Mini Card slot and 4 USB 3.0 ports
DisplayPort and HDMI with dual-view supported

Intel Atom D510 1.66GHz

2GB RAM onboard

2x ethernet

254x59x152mm

6x USB 2.0 (not all cabled out)

8x RS232 (not all cabled out)

Input Voltage DC: 9 ... 36 V, 16 W

OS Support: Windows CE 6.0, Windows XP, Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 2009, Linux OS, QNX, WIN10 iot

Fuldt bestykket industri PC, 5 x gigabit netværk, u/OS.

Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported
3xGbit

i5-7300U 2.2GHz or Celeron 3965U CPU
Max. 16 GB of RAM
2 x USB (M12)
1 x RJ45 Gbit
1 x VGA (M12)
2 x RS232/422/485 (M12)
Watchdogtimer
1 x 2.5" SATA HDD (max. 9.5mm)
1 x mSATA (enabled in BIOS)
1 x Full-size and 1 x Half-size PCI Express Mini Card slot (USB + PCIe signal)
TPM 1.2
4 x N-jack antenna opening with water proof design
Vibration Endurance 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
-30°C ~ +60°C
210 mm (8.27") x 366.83 mm (14.44") x 83.8 mm (3.27")
9~36VDC Power input (M12)
Support: WIN10IoT & Linux

6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HDD (RAID0/1 support)
9-36VDC

Intel® Core ™ 6th Gen
Supports I3, i5, i7 - CPU Not included in the price
Integrated Intel® HD 530/510 Controller
Up to 16GB DDR4-2133 - RAM NOT INCLUDED IN Price
3xgbit (1x Intel i219-lm, 2xintel i210-it)
4 x USB 3.0
2 x USB 2.0
2 x RS-232 2x Rs 232/422/485
VGA DVI
8 ~ 35vdc
excl. OS and power supply
-25 ° C ~ 70 ° C (requires special SSD and RAM)
DIN-RAIL MOUNT KIT (OPTIONAL)
120W AC / DC Power Adapter (Optional)
8- CH Isolated di and 8-CH Isolated do (optional)

Fanless
Support Intel® i3/i5/i7/Celeron Processor
Intel® H61 Chipset
1 x VGA
2 x  USB 1.0
1 x RS232
IP67 Fanless operation design
RAM Max. up to 16 GB
One 2.5" SATA HDD drive bay
Option (WiFi / 3G / Bluetooth Optional)
OS Support Windows XP, 7, CE6.0, Linux

Fanless Design
CPU Socket LGA 1151 Gen. 6 & 7
Max. 32GB RAM
2 x RS232 / 422/485
4 x RS232
6 x USB 3.0 / 2.0
3 x RJ45 Gbit
DisplayPort, HDMI, VGA and DVI (Supports 3 screens simultaneously)
Power on / off delay control / Configurable ignition power control
Option:WiFi / 3G / 4G / GPS and I / O Extension
2 SATA SSD (1 x removable, 1 x internal),
Supports RAID 0.1
TPM 2.0 Support
DC power input (9 ~ 36V)
Windows 10 IOT ( For 7th Gen Intel CPU)
Windows 7 / Windows8.1/ Windows 10 IOT ( For 6th Gen Intel CPU)
Linux (Kernal 4.4.x )

Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
Max. 64GB RAM
Intel Q370 Chipset
Intel UHD 620 Graphics
XLow-profile chassis with hot-swappable 2.5" HDD/ SSD tray
Rugged,
4x COM port (2x RS232, 2x RS232/422/485)
2x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolutionwide
Temperature range from -25°C to 70°C fanless operation

Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
Max. 64GB RAM
Intel Q370 Chipset
Intel UHD 620 Graphics
XLow-profile chassis with hot-swappable 2.5" HDD/ SSD tray
Rugged,
4x COM port (2x RS232, 2x RS232/422/485)
2x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolutionwide
Temperature range from -25°C to 70°C fanless operation

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE + ports via M12 or RJ45 connectors (To be specified when ordering)
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x 802.3at Gigabit PoE + ports via RJ45 connectors
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control
