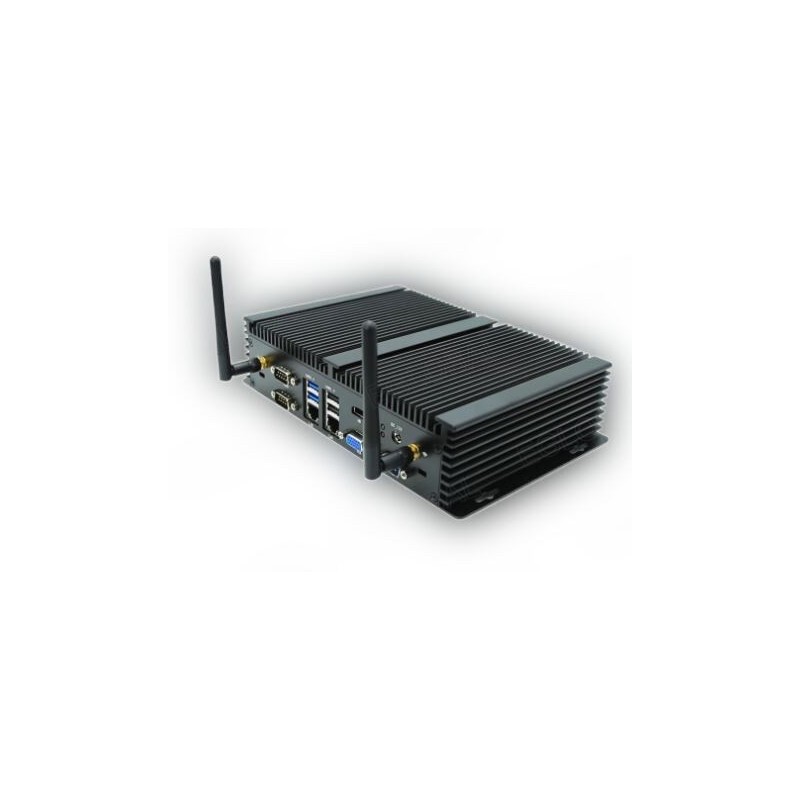

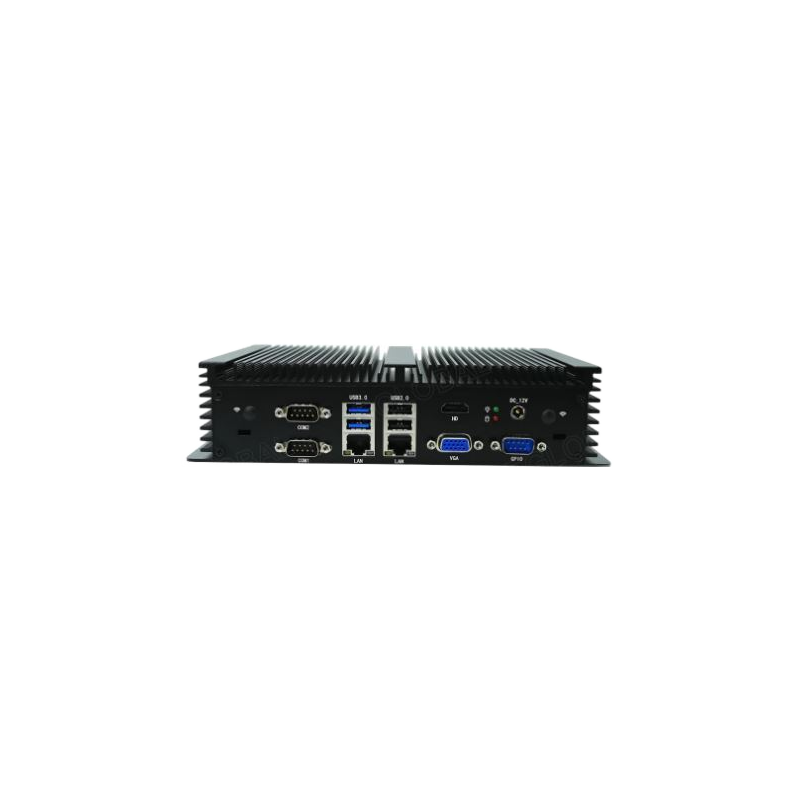

Fanless Mini PC Intel Core I7 4578U 2xLan, 6xCom HDMI, VGA WiFi Windows 10 Linux Industrial Computer

i7 Haswell i7 4578U 3.0GHz, Dual Core, 4 Threads 4MB Cache
2 x SO-DIMM DDR3L, Max. 16GB
TPD 28W
Intel Irus Graphics 5100
2 x Intel Gbit RJ45, Wake on Lan, PXE
6 x RS232/422/485 (2 is BIOS select RS422/485)
8 x USB (4xUSB3.0, 4x USB2.0)
SIM card slot
GPIO
HDMI, VGA (dual display support)
1x MSATA3.0, 1x mini PCIe
-20 ~ +75 Centigrade (requires special RAM)
OS Support: windows 7, 8, Windows 10, Linux
212,5x149,5x52mm
12Vdc

EPC-I7-6S2L4GW
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industrial 24/7 Build To Order embedded PC, Fanless. We can makes special solutions!

CPU
Haswell i7 3.0Ghz Low Power 4578U
Chipset
Intel
Andet
Wake on lan, RTC, Autopower on
Antenne
2 x Intter RF cable and 2 x external antennas
Dimensioner
212.5(base: 234.2)*149.5*52mm
Forsyning
12VDC / 5A Max
GPIO
1 x GPIOD
Grafik
Intel Iris Graphics 5100
Lyd
Realtek ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Montering
wall mount 4 holes on case
mPCIe
1 x mmini PCIe-Half port for WIfi/Bluetooth modul, 1 x Mini PCIe-full port for 3G/4G module
OS SUPPORT
Windows 7, windows 8, Windows 10, Linux
Porte
6 x COM, COM 1 and 2 can be changed to RS232/422/485 from BIOS
SIM kort
Onboard embedded Sim card Slot
Udgange
1 x VGA, 1 x HDMI
USB
4 x USB2.0, 4 x USB 3.0
Weight
1.6Kg, Gross 2,5KG
WiFi/WLAN
1 x mini PCIE-half port for Wi-Fi/3G/4G module, 2 x inner RF cables and 2 x external antennas option
