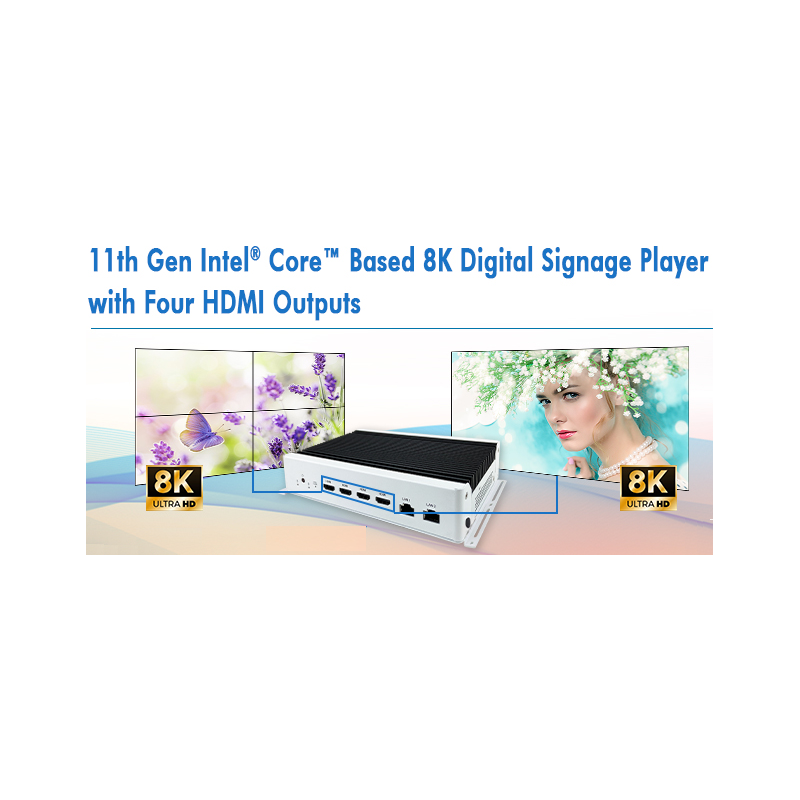

8K digital Signage Player 4xHDMI Gen. 11 CPUs

ISMART Intelligent energy-saving technology with Power On / Off Scheduling and Power Resume Functions
11th Gen Intel® Core ™ U-Series Processor
4x HDMI 2.0 with independent audio output
Built-in hardware Edit Emulation function
HDMI-CEC and display monitoring functions
2x DDR4-3200 SO-DIMM, Dual Channel, Max. 64DK
1x M.2 B-Key (3042) for 4G LTE
1x M.2 E-Key (2230) for WiFi, Bluetooth or Capture Card Selection
TPM 2.0, VPRO and WatchDog Timer
Industrial-Grade Robust Fanless and Compact Design

EPC-DSP-8K
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Fanless 8K digital media player powered by Intel's latest 11th generation Core ™ U-series processors (formerly Tiger Lake) manufactured with Intel's 10nm SuperFin transistor, achieving up to 17.5% performance boost and significantly higher clock speeds at lower power compared to with the original 10nm. It is currently offered with an Intel® Core ™ i7-8665UE processor (8M cache, up to 4.40 GHz) that integrates the high-performance Iris Xe GPU, Intel's 12-generation graphics with 96EUs. The compact SI-654-N measures 200 x 139 x 41 mm and can be easily installed in space-constrained environments. It houses four HDMI 2.0 connections to deliver up to 1x 8K display or 4x 4K displays, delivering vivid 8K resolution and ensuring a truly immersive audience viewing experience.

Mainly designed for digital advertising signage in busy locations where there is a constant demand for practical information, they feature HDMI-CEC control, display status monitoring, flexible video wall configurations and hardware EDID emulation that prevents distorted or black screen due to problem with screen and cable connection. Industrial quality is perfectly suited for video wall solutions in airports, shopping centers and other business premises that require reliable operation around the clock. With advanced iSMART and Observer technologies, the player is equipped with dust protections, resume playback after power failure, power on/off scheduling and hardware monitoring to enable continuous and stable operation of the system.

For signage implementation with high computing performance, other models with fan solution are also available. supports TPM 2.0 for optimal cyber security and vPro for easy remote monitoring and management.

CPU
Socket BGA-1449, i3, i5, i7
Chipset
Integrated
Approval
CE, FCC Class B, cULus & CCC
Chok/Vibration
M.2: 5 grms / 5~500Hz / random operation
Dimensioner
200.8mm(W) x 139.3mm(D) x 41.2mm(H) 7.90”(W) x 5.48”(D) x 1.62”(H)
Driftstemperatur
0°C~ 45°C (32°F~113°F)
Ethernet
2xRJ45 (1 lan i219LM i5 and i7 version, i3 Intel i219V, 2 lan: I211AT)
Forsyning
12Vdc, max 84Watt
Grafik
11th Gen Intel Core U-Series Gen 12 Integrated up to 96EU
Hukommelse
2 x DDR4-3200 SO-DIMM, MAX. 64GB
Lyd
1 x Audio Connector for line out
M.2
1x M.2 2280 M-key supports NMVe (PCI-E x4 / SATA) 1x M.2 2230 E-key supports CNVi (PCI-E x1 / USB 2.0) 1x M.2 3042 B-key (PCI-E x2, USB 2.0 and 3.0)
Porte
1x RJ45 RS232
SIM kort
1x UIM/SIM card slot
Storage
1x M.2 2280 M-key supports NMVe (PCI-E x4 / SATA)
Udgange
4 x HDMI 2.0
USB
1x USB2.0, 3x USB3.1 Gen.2
Weight
1.7Kg
Watchdog
Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/min)
