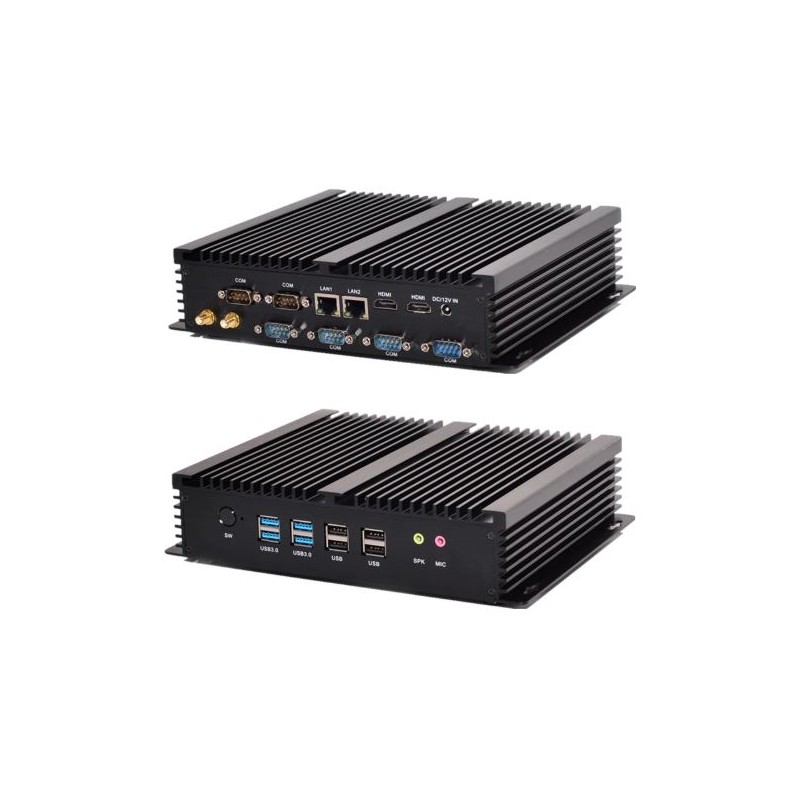

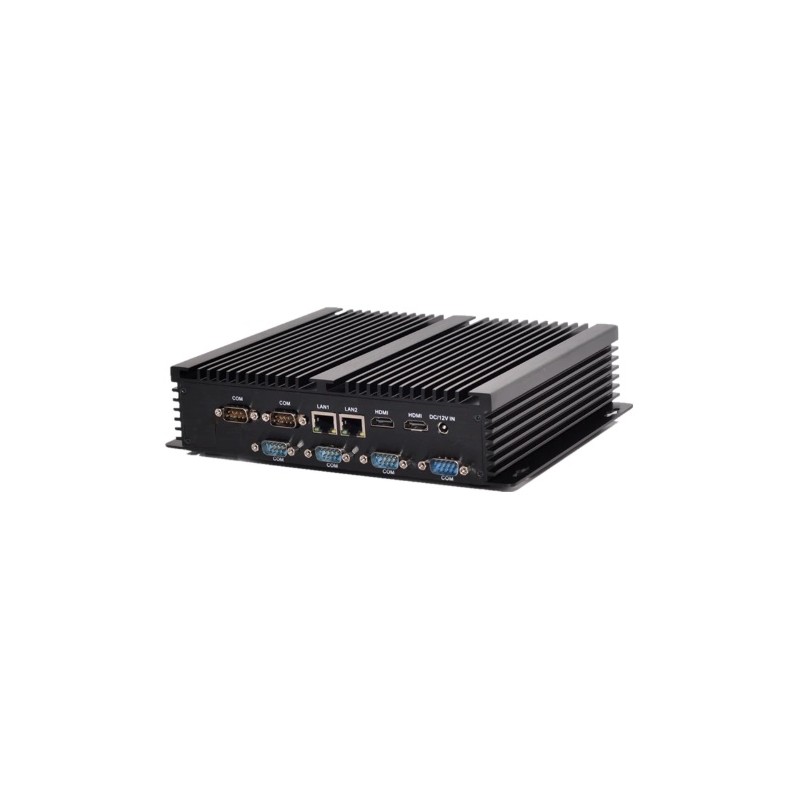

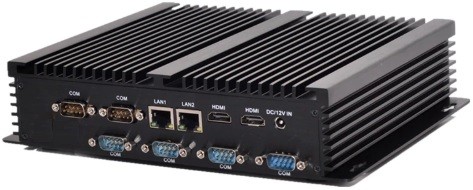

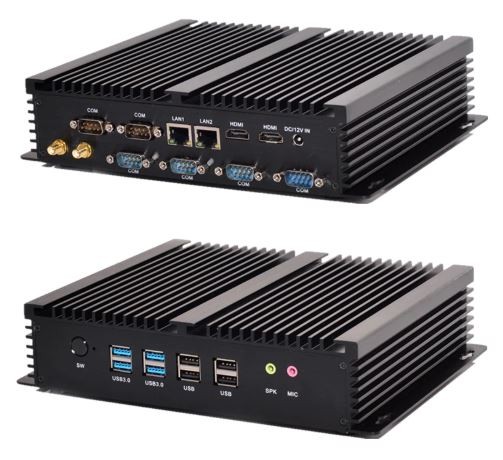

Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express Chipset High Speed
RAM: 1 x SO-DIMM DDR3L 1333/1600, 1333/1600 LPDDR3 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Gbit Intel
2 x HDMI
4x USB 3.0
4 x USB3.0
4 x USB 2.0
6 x RS232
WIFI: OPTION!
Supply DC12
234 * 150 * 50MM
Support: Windows 7 / Windows 8 / Windows 10 / Linux
CPU | Intel Celeron 2955U |
---|---|
Chipset | Intel QS77 Express High Speed Chipset |
Andet | PXE boot |
BIOS | AMI BIOS, ACPI supported, Support call on function automatically |
Dimensioner | 234*150*50 mm |
Driftstemperatur | 0-50 Centigrade |
Ethernet | 2xRJ45 Gbit Intel 82583V/82574L PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN |
Forsyning | 12vdc JACK connector 1 inner diameter 2.5mm,external diameter 5.5mm |
Grafik | Intel® HD Graphics 4400 |
Hukommelse | 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600 |
Luftfugtighed | 10%-85% |
Lyd | ALC892 HIFI sound chip, 6-channel |
Compositions | Aluminium housing |
Montering | 4 Mounting holes on case |
Msata | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
OS SUPPORT | Windows 7/Windows 8/Windows 10/Linux |
Porte | 6 x RS232 |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
SIM kort | 1 x embedded SIM card slot onboard(optional) |
Strømforbrug | TDP 15W |
Udgange | VGA + HDMI DUAL support |
USB | 4* USB 3.0 ports; 4* USB 2.0 ports |
Weight | 1.8KG |
WiFi/WLAN | OPTION ! not included |
Compact industrial fanless PC with i5 processor. We offer to provide the complete SSD, RAM and OS installleret.
We offer other models.
NOTE: Contract with Danbit A / S and User Agreement with service supplier MUST be established before purchase!
Payment system with touch display.
accept contactless, chip, magnetic stripe and mobilepay.
GSM antenna connector MMCX to 6 digital outputs. Can be programmed with the time difference when paying. To 6 deaktiveringsindgang2. Can be configured to disable the machine
can be connected to a vending machine, washing machine, door, etc.
Web-based control panel.
Communications Internet or WiFi or 4G
Support for setup can be purchased.
Supplied with SIM card (4G)
Supply voltage: 10 - 24VDC, 10 - 42VAC / 2Amp (power supply included)
Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection
Intel® Apollo Lake Atoms ™ E3950 quad-core processor
4-ch isolated di and 4-ch isolated do
1X isolated CAN bus 2.0
1 x M.2 Socket
3 x Mini-PCie Socks
8 ~ 35V DC Input
Operating Temp: -25 ° C Till 70 ° C
1x DDR3L-1866, up to 8GB
11th Gen. Intel® i3 CPU (Optional: i5, i7)
2 x 260-pin DDR4 SO-DIMM (64GB Max)
1 x M.2 M-Key, 1 x 2.5” HDD/SSD
16 x I/O
4 x COM
3 x LAN(2xPoE)
4 x USB3.1
Remote PWR
Video output: DVI-D, HDMI, DP
Mounting: Wall-mount (Option: DIN-rail or VESA)
Power Input: 9~36 VDC
Dimensioner: 210x180x70mm (WxDxH)
Operating Temp.-20 ~ 60 °C
I5 8265U 2.5-3.1Ghz
Intel HD620
2x DDR3L DO-DIMM max. 16 GB of RAM
1x 2.5" HDD/SSD
1x msata 3.0 (ssd support)
4x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000 RTL 8168E
1xVGA, 1x HDMI (Dual display support)
DC12Vdc (jack plug)
Wall mount
Auto power on, Wake On Lan
0~50 degrees
1.3Kg
Dimensions: 234x150x50mm (WxDxH)
OPTION: WIFI 2 antennas
OS support: Windows 7 / 8 / 10, Linux Compatible (64 bit)
Fanless
Intel i5 gen.7, 3.1 til 3.5GHz
2x RS232 (1x DB9, 1x RJ45)
4x USB 3.0
TDP 15W/28W
1x SO-DIMM DDR3K MAX 8GB RAM
Support PXE
Audio
6x Eth Intel(r) i210/i211 10/100/1000Mbp BaseT LAN
1x HDMI
1x SIM slot
1x Mini PCIE Full/mini for 3G/4G/Wifi modul
1x Msata 3.0 SSD 6Bb/s
1x 2½ support HDD/SSD SATA 3.0
Wifi
209x150x57mm (WxDxH)
Arbejds temp. -20/+60 Centigrade
DC +12V~+19V, recommend 12V/5A
