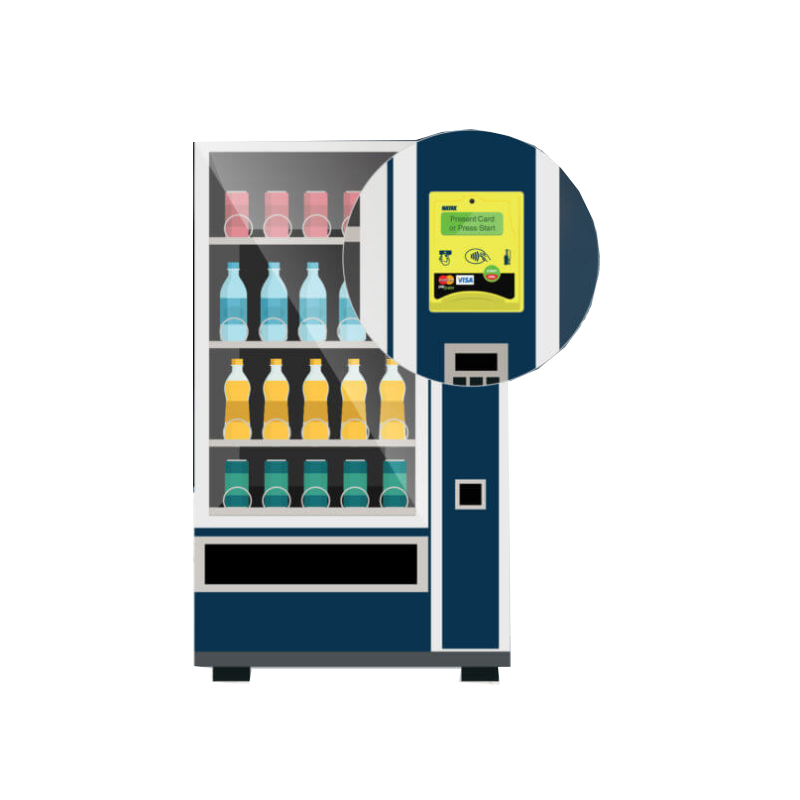

Nayax VPOS Touch cashless payment system payment terminal for vending machines
Nayax VPOS Touch cashless payment system payment terminal for vending machines
Previous
Next
Nayax VPOS Touch cashless payment system payment terminal for vending machines
Nayax VPOS Touch cashless payment system payment terminal for vending machines

Payment terminal with touch display for contactless cards, chip, magnetic stripe and mobilepay

NOTE: Contract with Danbit A / S and User Agreement with service supplier MUST be established before purchase!

Payment system with touch display.
accept contactless, chip, magnetic stripe and mobilepay.
GSM antenna connector MMCX to 6 digital outputs. Can be programmed with the time difference when paying. To 6 deaktiveringsindgang2. Can be configured to disable the machine
can be connected to a vending machine, washing machine, door, etc.
Web-based control panel.
Communications Internet or WiFi or 4G
Support for setup can be purchased.
Supplied with SIM card (4G)
Supply voltage: 10 - 24VDC, 10 - 42VAC / 2Amp (power supply included)

Call +45 56 66 20 20 for price
Quantity
Physically in stock
ADD TO CART
Product number PAY-N-VPOS-TOUCH
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Læser Magnetic, Contact, Contactless
Skærm Touch display

Give your customers the flexibility to pay as they choose. PAY2 provides an all-in-one solution for magnetic, contact and contactless

The system can either talk to a vending machine via MDB, or send pulse signals to activate the machine. This makes it easy to integrate the payment system into an existing machine.

The built-in touch screen makes it possible to display product prices directly on the payment terminal. The built-in image slideshow feature makes it easy to present the range of products to customers, while the machine is idle

Power supply AC adapter from 100 - 240VAC to 12VDC 1,25AMP.
12VDC 1.25 Amp (15Watt) power supply from 100 - 240VAC, C-14 power outlet, with 1.5m cable without DC plug

Switch Mode Type
Power Supply 100-240 VAC for 12VDC / 1,25A
