MDB for RS232 Converter for payment terminal, connect PAY terminal to the PC's COM port. 24VDC.

NOTE: Contract with Danbit A / S and User Agreement with service supplier MUST be established before purchase!

Payment system with touch display.
accept contactless, chip, magnetic stripe and mobilepay.
GSM antenna connector MMCX to 6 digital outputs. Can be programmed with the time difference when paying. To 6 deaktiveringsindgang2. Can be configured to disable the machine
can be connected to a vending machine, washing machine, door, etc.
Web-based control panel.
Communications Internet or WiFi or 4G
Support for setup can be purchased.
Supplied with SIM card (4G)
Supply voltage: 10 - 24VDC, 10 - 42VAC / 2Amp (power supply included)

MDB Master / Slave Controller via USB
Simple API for integration
can function as VMC or payment terminal
USB-COM Port ACM Driver
Built-in relay, can be controlled via command
Power supply via USB or MDB
Does not provide power output on the MDB port
Technical demanding product - Support for setup / integration can be purchased

BEMÆRK: Kontrakt med DANBIT A/S og Brugeraftale med serviceleverandør SKAL etableres før køb!

Betalingssystem med touch display.
All-in-one med POS og Data-kommunikation i samme hus
Accepterer kontaktløse kort og MobilePay.
GSM antennestik MMCX stik
6 digitale OC. pulsudgange til automat/vendingmaskine, maskiner, døre etc.
6 digitale indgange, inhibit, for at stoppe køb ved mangel/fejl
Konfigureres via platform med priser og funktioner
Kan tilkobles en salgsautomat, vaskemaskine, dør, osv
Web-baseret eller MQTT Cloud
Kommunikation: LAN eller 4G
Support til opsætning kan tilkøbes.
Leveres med SIM kort klar til funktioneopsætning
Forsyningsspænding: 10-24VDC, 10-42VAC / 2A (PSU medfølger ikke)

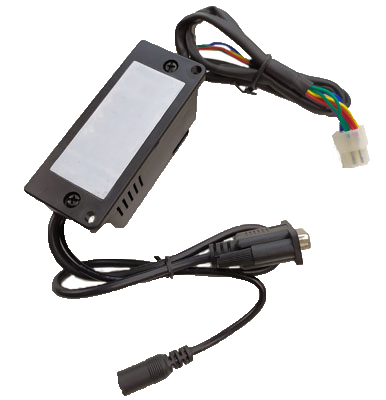

MDB Cable with USB Converter
USB-COM Port FT232RL
for integrating PAY terminal into a PC system
Demo software included
Power supply: 24VDC / VAC @ 0.5A (not included)
Dimensions: 100 x 50 x 30 mm
