NAYAX payment system VPOS+AMIT for unmanned machines / vending machines
NAYAX payment system VPOS+AMIT for unmanned machines / vending machines
NAYAX payment system VPOS+AMIT for unmanned machines / vending machines
Previous
Next
NAYAX payment system VPOS+AMIT for unmanned machines / vending machines
NAYAX payment system VPOS+AMIT for unmanned machines / vending machines
NAYAX payment system VPOS+AMIT for unmanned machines / vending machines

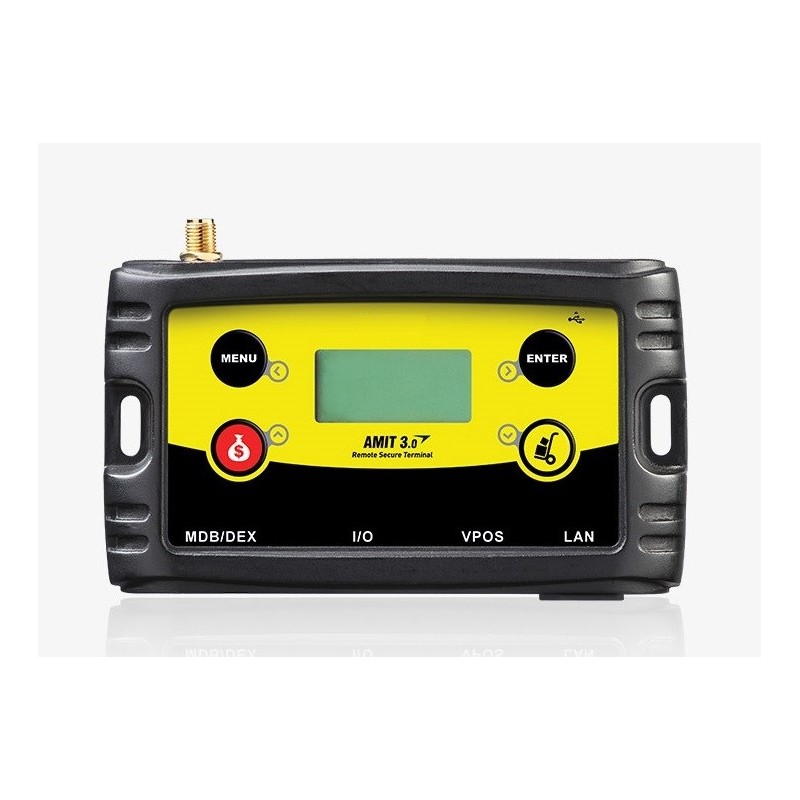

NAYAX payment system VPOS+AMIT with 2 units for contactless card, chip, magnetic stripe and MobilePay

Payment system for vending machines, doors etc.
Accepts contactless & nbsp; chip, magnetic stripe and MobilePay
GSM (SMA) and LAN (RJ-45)
2 x digital outputs. & nbsp;
1 x deaktiveringsindgang. Can be configured to deactivate the machine
Can be connected to a vending machine, washing machine, door, etc.
Web-based control panel, can be operated over the Internet
Support for setup can be purchased
Comes with SIM card
User agreement with service provider is required

500.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number PAY-N-VPOS+AMIT
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU ARM – Cortex, 32-bit, 168 Megahertz
Operating Temp. -30°C ~ 50°C
Forsyning 10 ~ 42 VAC, 10 ~ 30 VDC
Læser Magnetic, Contact, Contactless
Skærm 2 linjers LCD display

SUPPORT AND SETUP HELP can be purchased

Now it's easy to accept payments with the new PAY1. With the unattended payment terminal you get a all-in-one solution is to understand. The system is suitable for example. machines, washing machines, doors mm. The terminal accepts both contactless chip, magnetic stripe and mobilepay.

In addition, the payment terminal web-based, which means that the terminal can be operated over the internet. Easy and accessible.

5V relay circuit board 1 channel for Nayax
1 channel relay print for the PAY terminals, switching relay COM/NO/NC, 5VDC supply voltage. Opto-isolated input

Module with 1 relay output
5VDC from opto-isolated digital input
GND, VCC, IN (digital input)
COM, NC, NO
approx. size 43 x 17 x 19 mm
Max load: AC 250V/10A, DC 30V/10A - no inductive load!

150.00 kr
Item Number: REL5V1
Physically in stock
ADD TO CART
Quick view
Support for setting up nayax terminal
Support for setting up PAY terminals

Support for setting up PAY terminals.
You will be guided through Nayax portal and get help to set it up your first terminal.
Limited to two hours

6,300.00 kr
Item Number: PAY-N-OPSÆTNING
On the way in
ADD TO CART
Quick view
5V relay circuit modul board optoisolatet 2 channels for Nayax
2 channel relay print module for e.g. switching relays COM/NO/NC, 5VDC supply voltage. Opto-isolated input

Module with 2 relay outputs
5VDC from optically isolated digital input
GND (-), VCC (+), IN (digital input)
COM, NC, NO
Max load: AC 250V / 10A DC 30V / 10A - non-inductive load!
holes for mounting
approx. size 51x39x19mm (lx W x H)
REMEMBER THE RIGHT CABLE FOR YOUR NAYAX TERMINAL!

175.00 kr
Item Number: REL5V2
Physically in stock
ADD TO CART
Quick view
Previous
Next

Other products in same category:

5V relay circuit modul board optoisolatet 2 channels for Nayax
2 channel relay print module for e.g. switching relays COM/NO/NC, 5VDC supply voltage. Opto-isolated input

Module with 2 relay outputs
5VDC from optically isolated digital input
GND (-), VCC (+), IN (digital input)
COM, NC, NO
Max load: AC 250V / 10A DC 30V / 10A - non-inductive load!
holes for mounting
approx. size 51x39x19mm (lx W x H)
REMEMBER THE RIGHT CABLE FOR YOUR NAYAX TERMINAL!

175.00 kr
Item Number: REL5V2
Physically in stock
ADD TO CART
Quick view
Connecting Nayax Terminal to PC via RS232
MDB for RS232 Converter for payment terminal, connect PAY terminal to the PC's COM port. 24VDC.

MDB Cable with RS232 Converter
for integrating Pay Terminal into a PC system
Demo software included
Power supply: 24VDC / VAC @ 0.5A (not included)
Dimensions: 100 x 50 x 30 mm

614.00 kr
Item Number: CNV-MDB-RS232
On the way in
ADD TO CART
Quick view
MDB cable for Nayax VPOS Touch
Accessory: Full MDB cable for PAY2 and Onyx Payment Terminal

MDB Male and Female
EXT-MCR
TEMP
GND
DOOR OPEN
DEX Male and Female
RS232

345.00 kr
Item Number: PAY-N-K-MDB-FULL
Physically in stock
ADD TO CART
Quick view
MDB Master / Slave to USB converter
Simple MDB to USB converter, MDB Master / Slave, USB Host / Client

MDB Master / Slave Controller via USB
Simple API for integration
can function as VMC or payment terminal
USB-COM Port ACM Driver
Built-in relay, can be controlled via command
Power supply via USB or MDB
Does not provide power output on the MDB port
Technical demanding product - Support for setup / integration can be purchased

4,066.00 kr
Item Number: CNV-MDB-USB-S
Physically in stock
ADD TO CART
Quick view
MDB cable for Nayax VPOS Touch
Accessories: Basic MDB cable for VPOS Touch and Onyx

MDB Male and Female
DEX Male and Female

375.00 kr
Item Number: PAY-N-K-MDB-YDEX
On the way in
ADD TO CART
Quick view
Nayax VPOS Touch cashless payment system payment terminal for vending machines
Payment terminal with touch display for contactless cards, chip, magnetic stripe and mobilepay

NOTE: Contract with Danbit A / S and User Agreement with service supplier MUST be established before purchase!

Payment system with touch display.
accept contactless, chip, magnetic stripe and mobilepay.
GSM antenna connector MMCX to 6 digital outputs. Can be programmed with the time difference when paying. To 6 deaktiveringsindgang2. Can be configured to disable the machine
can be connected to a vending machine, washing machine, door, etc.
Web-based control panel.
Communications Internet or WiFi or 4G
Support for setup can be purchased.
Supplied with SIM card (4G)
Supply voltage: 10 - 24VDC, 10 - 42VAC / 2Amp (power supply included)

Call +45 56 66 20 20 for price
Item Number: PAY-N-VPOS-TOUCH
Physically in stock
ADD TO CART
Quick view
Connecting Nayax Terminal for PC
MDB for USB Converter for payment terminal, connect the Pay terminal to the PC USB port. 24VDC.

MDB Cable with USB Converter
USB-COM Port FT232RL
for integrating PAY terminal into a PC system
Demo software included
Power supply: 24VDC / VAC @ 0.5A (not included)
Dimensions: 100 x 50 x 30 mm

712.00 kr
Item Number: CNV-MDB-USB
On the way in
ADD TO CART
Quick view
Charging stand for electric car with payment. Mobilepay and card payment
Dual electric car charger with payment terminal, electricity tax return with CVR number. in Denmark

Universal electric car charging stand for all EV vehicles
Allow two electric cars to charge at the same time
Smart design
Dynamic management of charging
Interface protocol: OCPP 1.6
Payment for parking and charging by payment card
Monthly fees apply
AC Input 230-400 VAC +/- 10 (2 or 3 phase)
Total Power output 2 x 22kW / 2 x 32A Max (load sharing)
Payment: Payment card, Google Pay, Apple Pay (option: MobilePay)
Communication: 4G
IP degree: IP55
Operating temperature: -25 C° to 55 C°
Dimensions: 520 x 360 x 260 mm
Charger cable not included. The user uses the cable that comes with their car.

Call +45 56 66 20 20 for price
Item Number: EV-DUO-PAY
Physically in stock
ADD TO CART
Quick view
