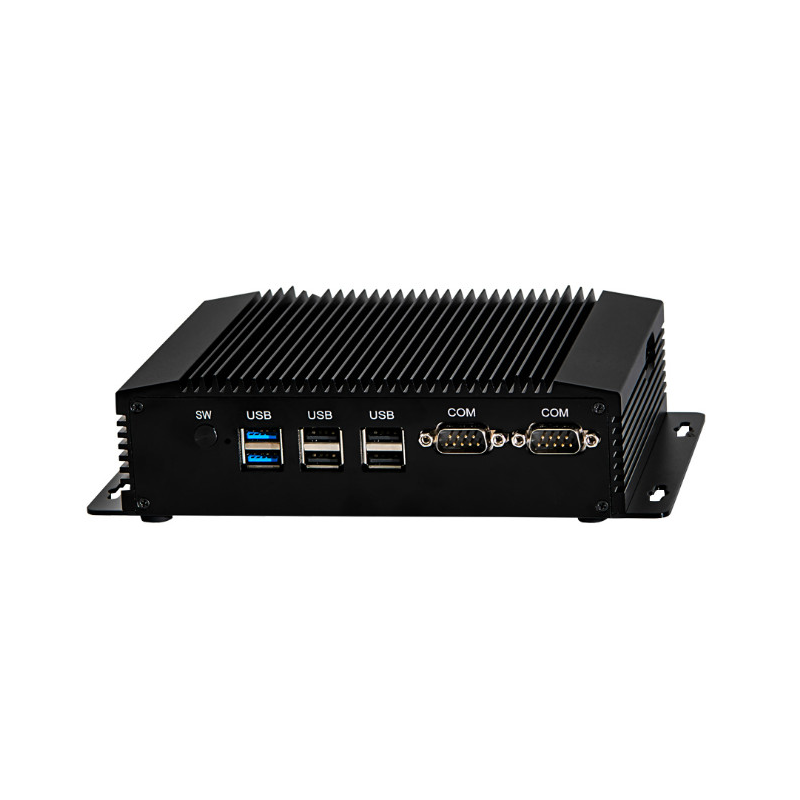

Embedded PC Intel N3520 4 core, 2xEthernet, 2xRS232/422/485, SIM Slot, VGA, HDMI, Auto power On, 6xUSB

CPU: Intel N3520

1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333

Supports PXE (network boot)

Audio: 1 x Audio, 1 x SPK

1 x VGA

1 x HDMI

4 x USB 2.0

2 x USB 3.0

2 x RJ45 Intel Giga Lan

2 x RS232/422/485 (BIOS Select)

1 x MSATA to MSATA SSD

1 x Sata3.0 for SSD/HDD

Sim Socket, 1 x micro SIM slot with PUSH function (on the side)

Fanless

TPM

175*125*37mm,

wall bracket

Net 0.5 kg, gross 1.5 kg

12V DC

OS Support: Windows 7/Windows 8/Windows 10/ Windows 11/ Linux

EPC-N3520-2E2S6UHV
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
Pentium
Intel Pentiium N3520 2.17Ghz, 4 core
Chipset
Intel BTY SOC
BIOS
AMI BIOS ACPI support
Digital I/O
1 x 8-bit GPIO
Driftstemperatur
-10/+60 C°(22°F~130°F)
Need speical RAM, SSD for this temperature
LAN
2
2xRj45 Intel Gia LAN i211
Montering
Wall mount
Watchdog
Yes
256-level Watchdog
TDP
7.5W
Dimension
175*125*37mm
RAM
1 x SO-DIMM DDR3L Slot
Support 4GB/8GB DDR3L 1333 MAX. 8GB
WiFi
yes
2 x inner RF cables and 2 x external antennas
