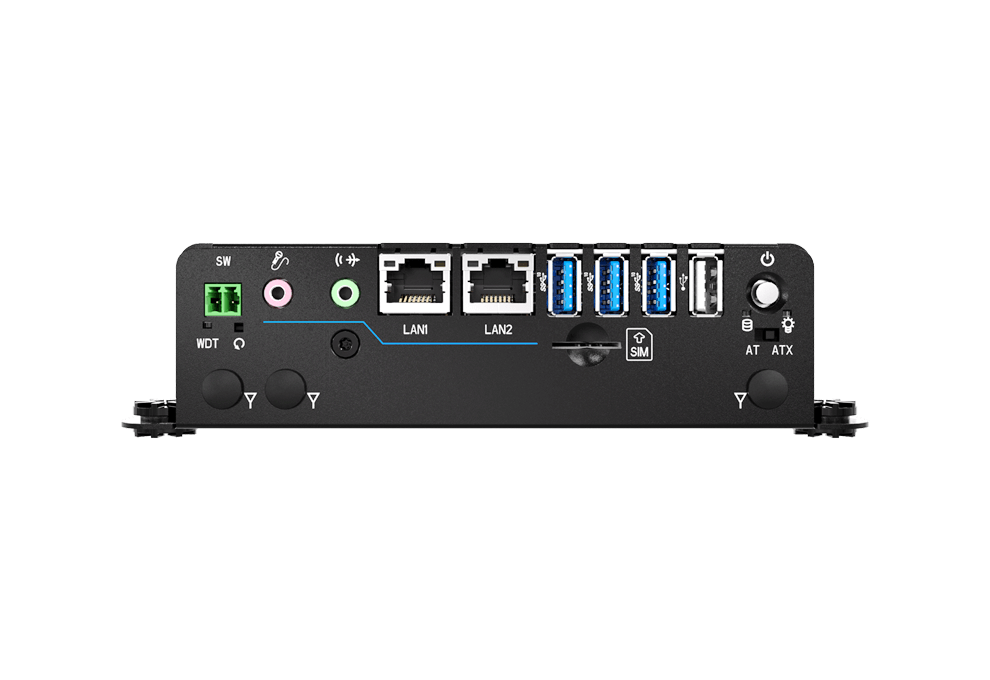

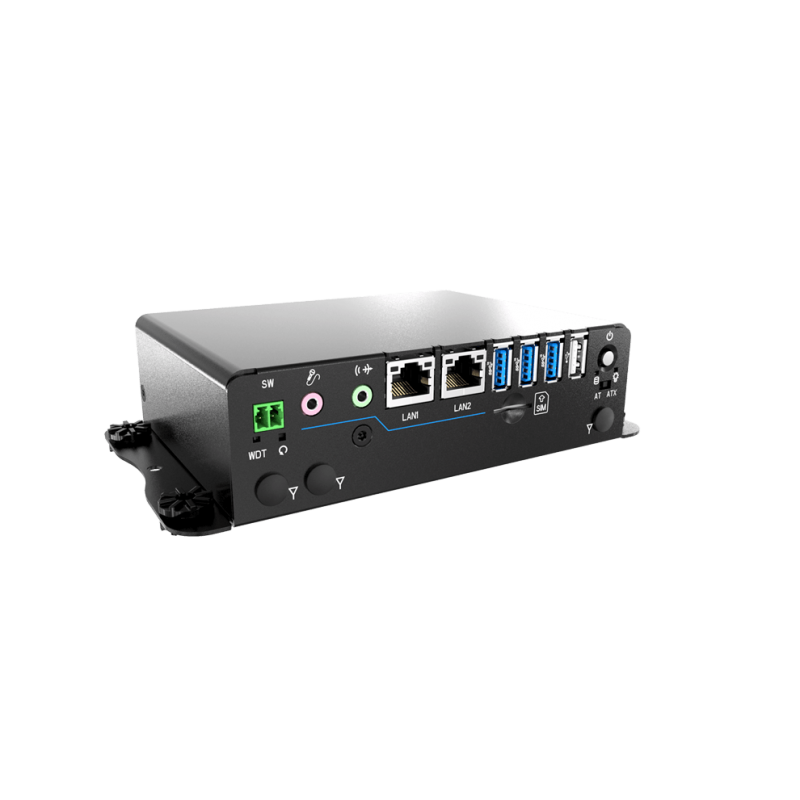

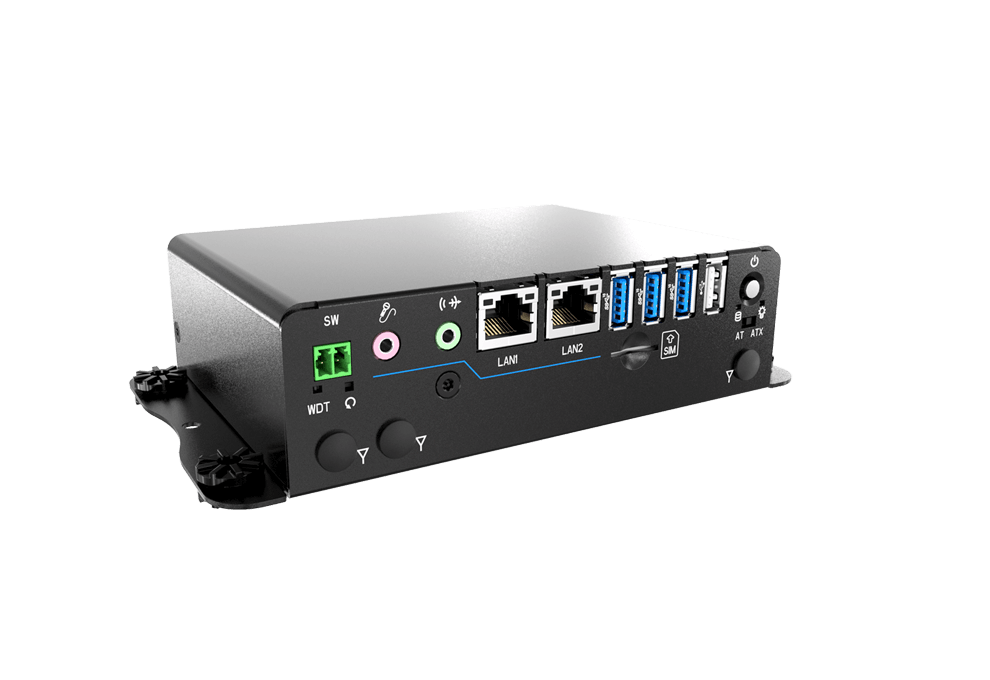

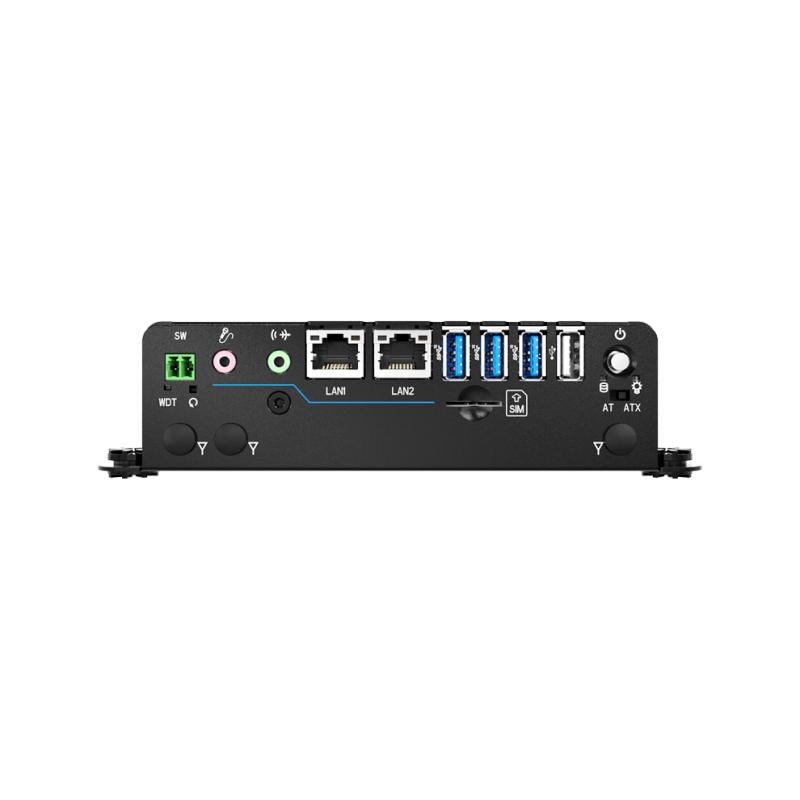

UL Listed Compact Fanless Embedded PC with Intel Celeron® CPU, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

Intel Celeron® J6413, Quad Core 1.8 GHz processor
1x 260-pin DDR4 SODIMM. Max. up to 32 GB
Dual independent screen with 2x screen port
1x 2.5 GbE, 1x GbE supports (Wake-on-LAN and PXE)
1x 2.5" SATA HDD bay, 1x mSATA
1x M.2 (B-KEY, 2242/3042/3052, supports 4G/LTE)
1x full-size mini-PCIe for communication or expansion modules
2x RS-232/422/485
3x USB 3.2 Gen2, 1x USB 2.0
M.2
SIM socket
watchdog
9 to 36VDC Wide Range Power Input supporting AT/ATX mode
Wide operating temperature -20°C to 50°C
TPM 2.0 supported
With 1x Universal expansion slot

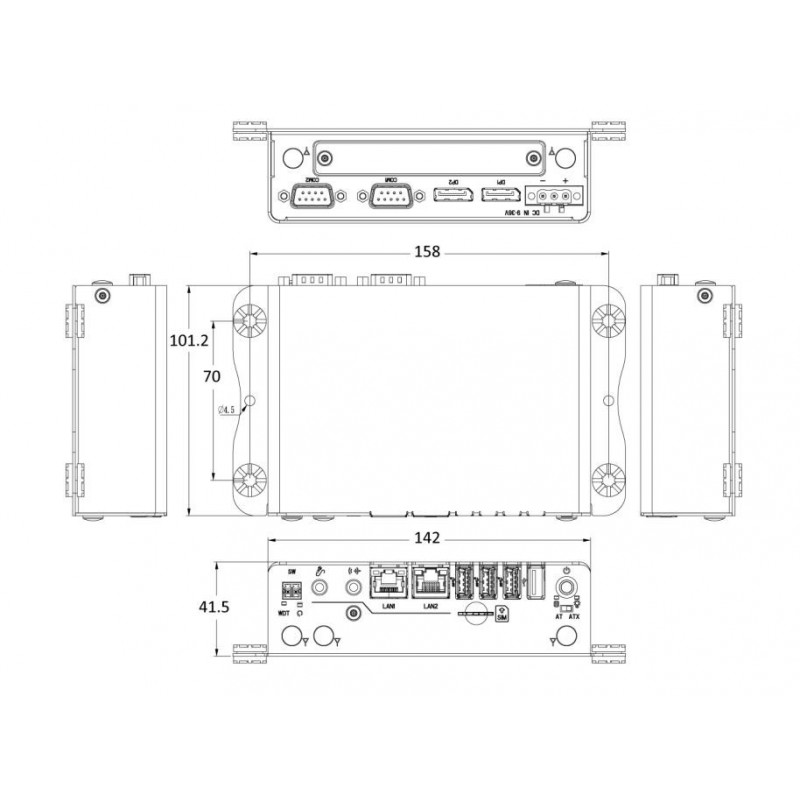

142 (W) x 101.2 (D) x 41.5 (H) mm
UL listed

EPC-CELJ6413-UL
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

latest innovation, the Series of Fanless Mini Industrial Computers. Equipped with the Intel® Celeron® J6413 Processor (Elkhart Lake) boasting a mere 10W TDP, this series seamlessly delivers x86 edge computing performance. Designed to excel in the harshest industrial and environmental conditions, the palm-sized. This embedded pc combines cutting-edge technologies for various edge deployments. The Embedded pc is a great alternative to the discontinued Intel NUC mini-PCs.

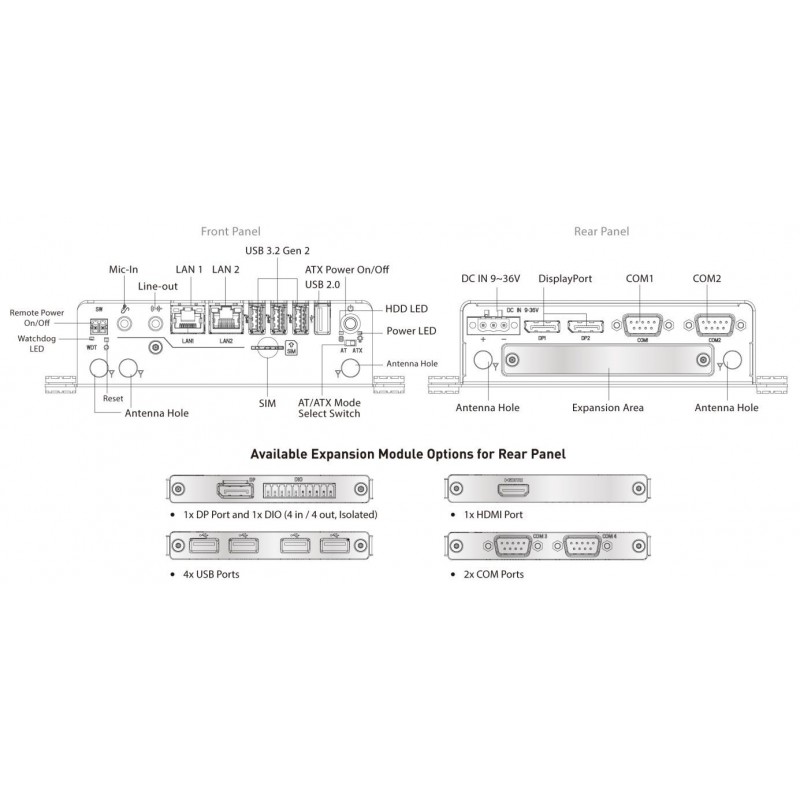

Ultra-Compact Size, UL Certified for Safety, Scalable EDGEBoost I/O, Rugged Fanless Design

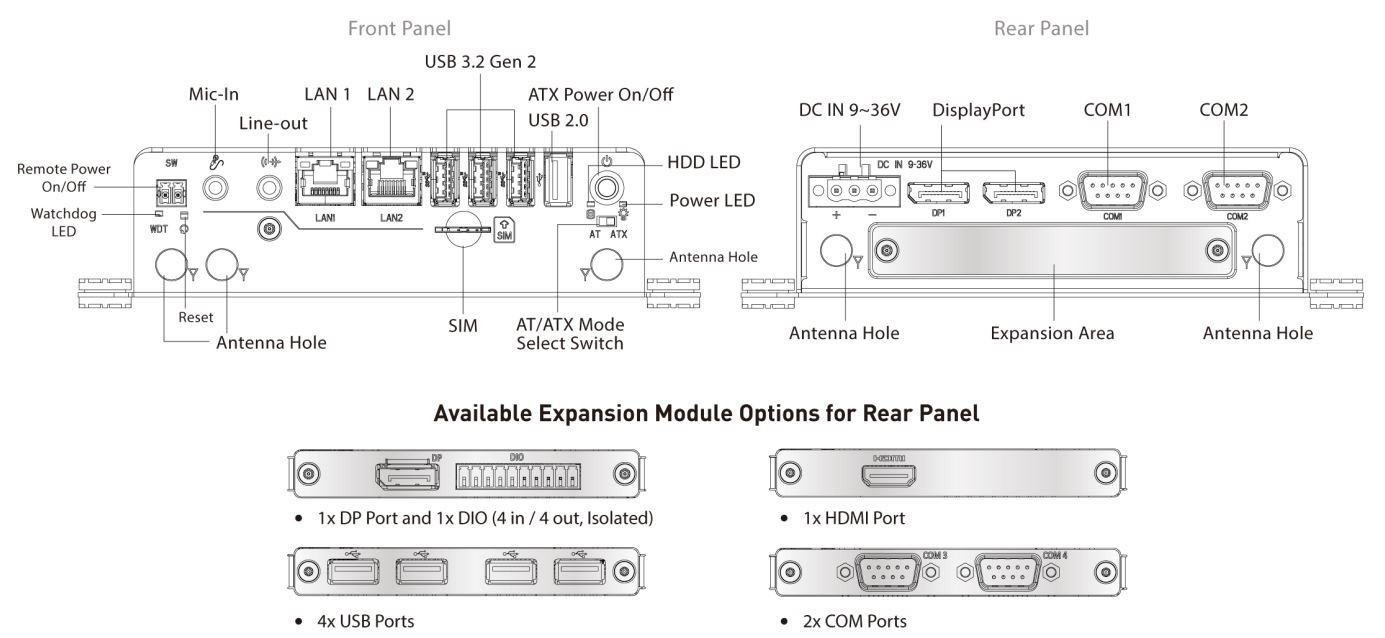

Expansion Modules

Needs to be ordered seperatly.
2-port COM module with Super I/O Chipset
4-Port USB module with USB hub

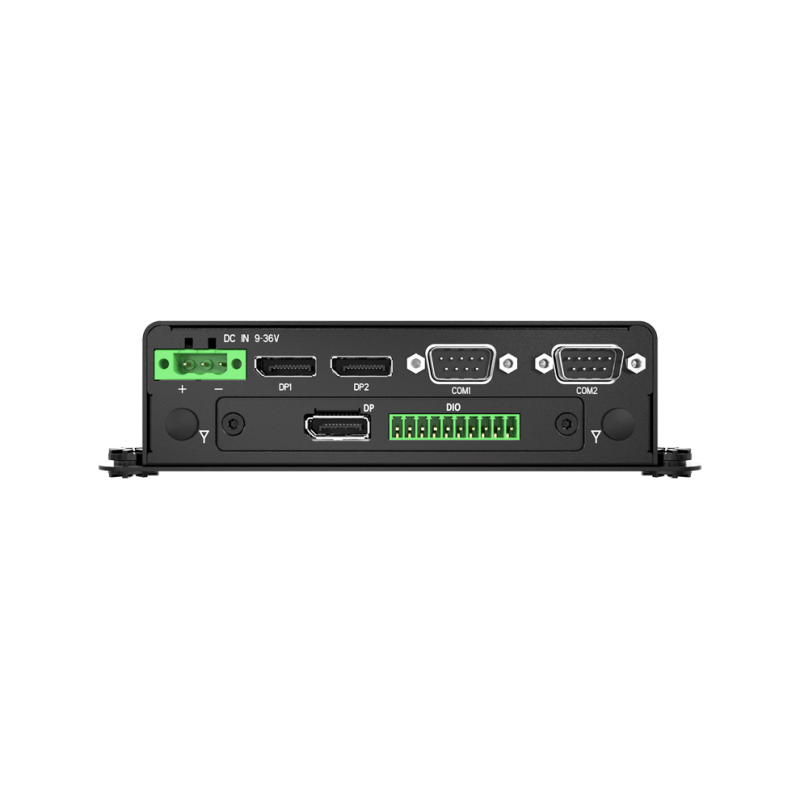

1-Port DP 1.4 and DIO (4 in / 4 out, Isolated)

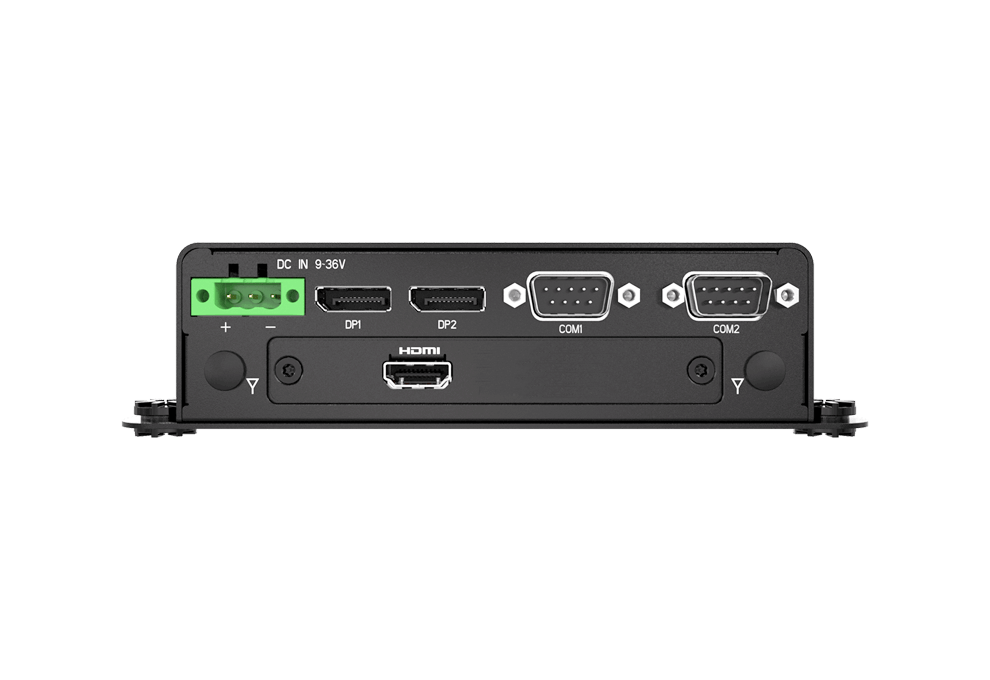

1-Port HDMI 2.0

4 other products in the same category:

IP67 sealed Embedded PC...

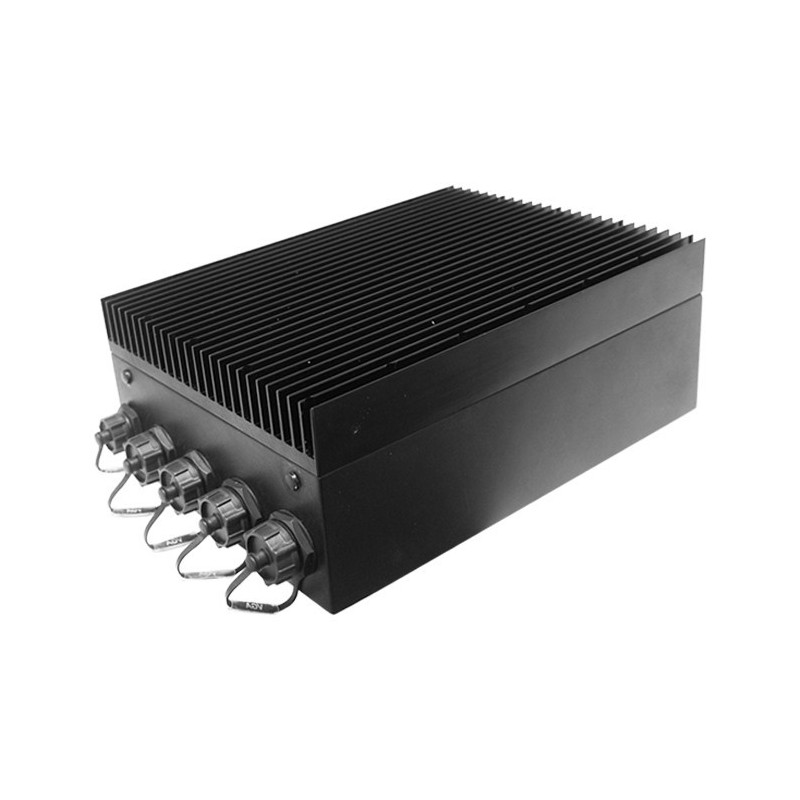

IP67 sealed Embedded PC Intel i5-7300U or Celeron 3965U, -30°C ~ +60°C, WIFI, Fanless

i5-7300U 2.2GHz or Celeron 3965U CPU
Max. 16 GB of RAM
2 x USB (M12)
1 x RJ45 Gbit
1 x VGA (M12)
2 x RS232/422/485 (M12)
Watchdogtimer
1 x 2.5" SATA HDD (max. 9.5mm)
1 x mSATA (enabled in BIOS)
1 x Full-size and 1 x Half-size PCI Express Mini Card slot (USB + PCIe signal)
TPM 1.2
4 x N-jack antenna opening with water proof design
Vibration Endurance 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
-30°C ~ +60°C
210 mm (8.27") x 366.83 mm (14.44") x 83.8 mm (3.27")
9~36VDC Power input (M12)
Support: WIN10IoT & Linux

Price Call for price
Product code: EPC-BT-IP67
On the way in
Quick view

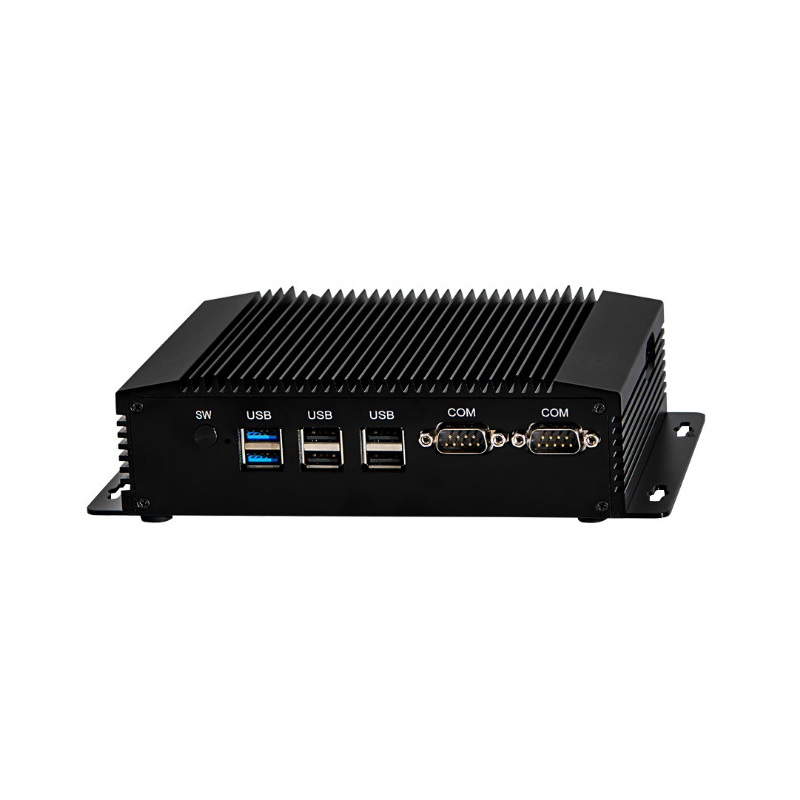

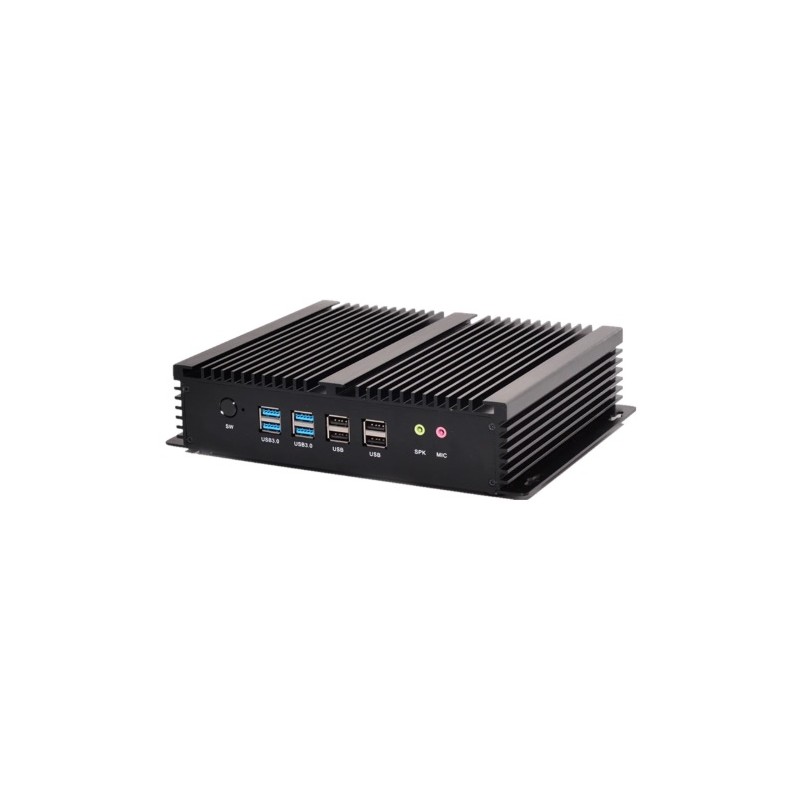

Embedded Fanless PC Celeron...

Embedded Fanless PC Celeron 2x HDMI, 6 RS232, 8 x USB Windows Windows 7 / Windows 8 / Windows 10 / Linux

Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express Chipset High Speed ​​
RAM: 1 x SO-DIMM DDR3L 1333/1600, 1333/1600 LPDDR3 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Gbit Intel
2 x HDMI
4x USB 3.0
4 x USB3.0
4 x USB 2.0
6 x RS232
WIFI: OPTION!
Supply DC12
234 * 150 * 50MM
Support: Windows 7 / Windows 8 / Windows 10 / Linux

Price Call for price
Product code: EPC-CEL-2G6S2H
On the way in
Quick view
Fanless Mini PC for...

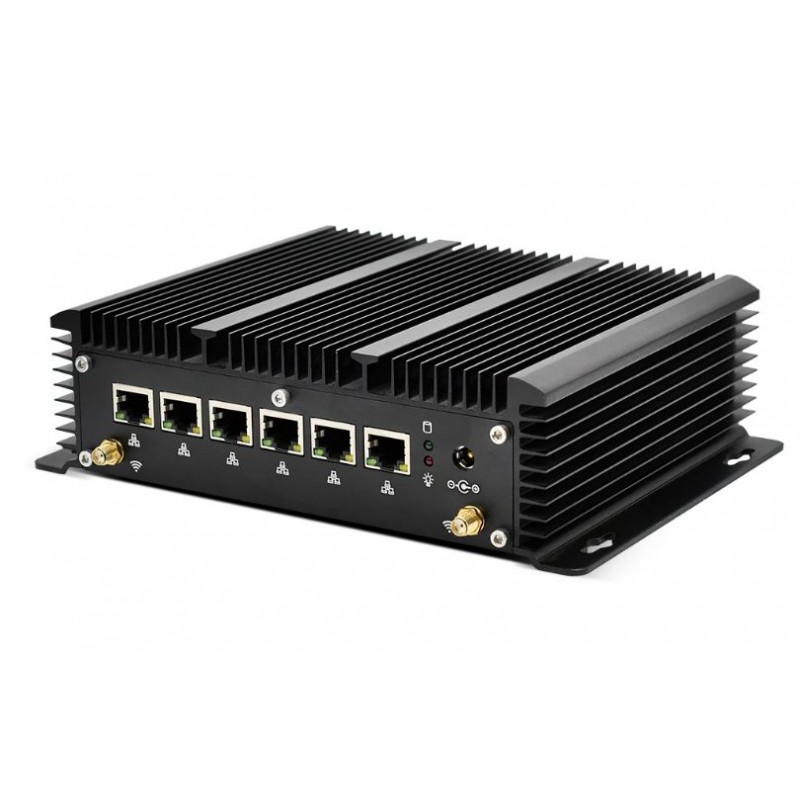

Fanless Mini PC for firewall, VPN or other network tasks, 6xRJ45, Option: SIM
