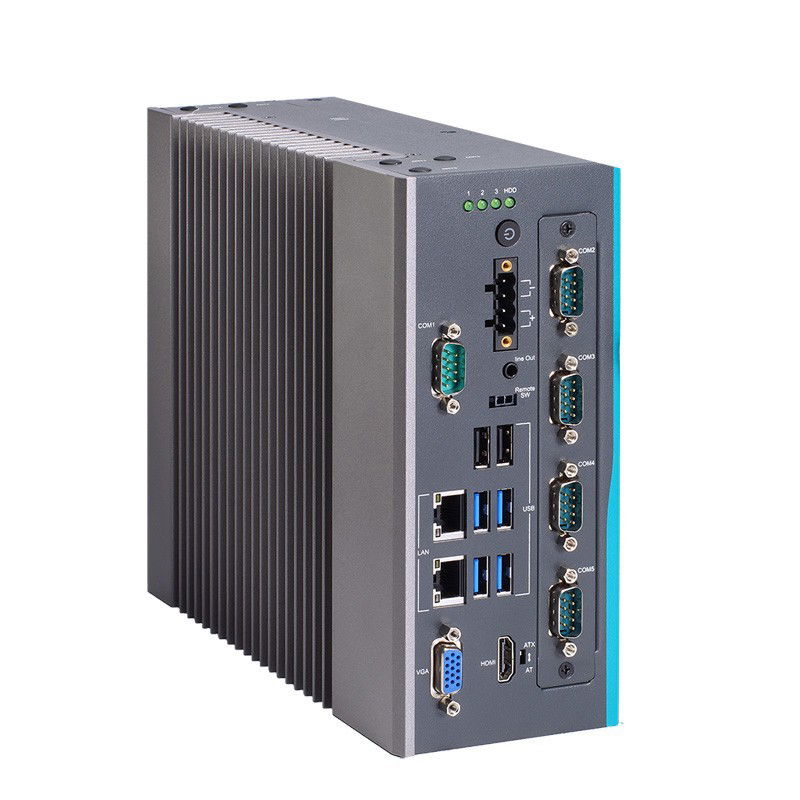

Fanless System, 9th/8th Gen. i7/i5/i3 Celeron® Processor, Intel® Q370, USB, RS232, VGA, HDMI, DIN-MOUNT

Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
Chipset Q370
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 2
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix

EPC-IX-2E1S6UHV-DIN+
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Special fanless industrial PC, intended for 24/7 operation year after year.
Possibility of expansion (MUST ORDER SPECIALLY)
NOT ALL EXTENSIONS CAN BE USED AT THE SAME TIME.

OPTION 1
-10°C to +60°C4 x RS-232/422/485 module (default RS-232)
OPTION 2
2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module

OPTION 3
4 x RS-232/422/485 with isolated 2kVDC module

OPTION 4
1 x 10/100/1000 Mbps (Intel® i211-AT) Ethernet

CPU
9th/8th gen Intel® Core™ processor, up to 65W
Chipset
Q370
BIOS
AMI
Approval
CE/FCC
Dimensioner
Dimensions (W x H x D) 83.5 x 192 x 230 mm (3.28" x 7.54" x 9.04")
Driftstemperatur
-10°C to +60°C (+14°F to +140°F) with Intel®, 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Ethernet
2 x 10/100/1000 Mbps (Intel® i211-AT & i219-LM) OPTION! More LAN ports available from extension I/O modules
Hukommelse
2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
Materiale
Aluminum extrusion heavy-duty cold-rolled steel
Montering
Wall mount as option, DIN mount as option
mPCIe
Intel® Q370: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B 3050 socket
Mål og vægt
Weight (net/gross) 3.82 kg (8.43 lb)/4.78 kg (10.55 lb)
OS SUPPORT
Windows® 10, Linux
Porte
1 x RS-232/422/485 (default RS-232) OPTION! More COM ports available from extension I/O modules
Spænding
Type: ATX/AT Input: 24 VDC (uMin=19V/uMax=30V)
TPM
Supports TPM 2.0
Udgange
1 x VGA 1 x HDMI
USB
4 x USB 3.1 Gen 2 2 x USB 2.0 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm
AMT
12
