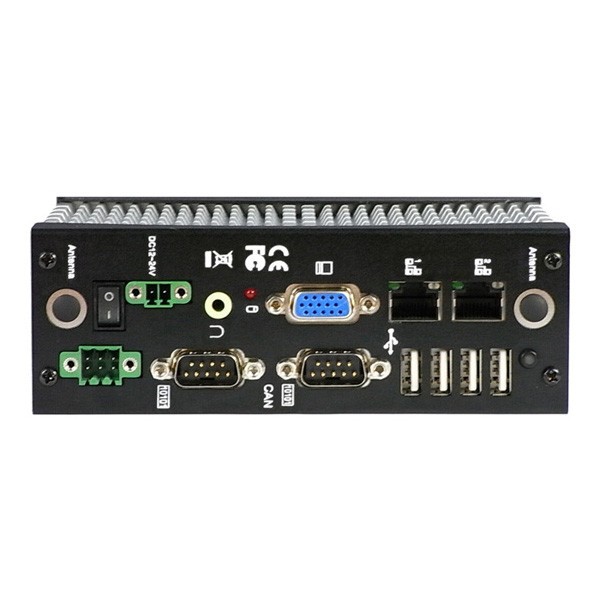

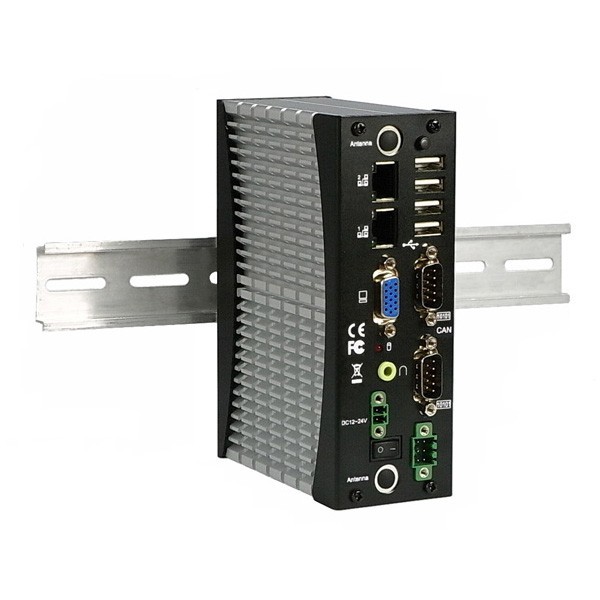

Embedded Industrial mini PC 3½", Atom N2600, CF, 4 x USB, 2 x RS232 CAN bus for older OS Windows 7, XP Embedded and Linux

Not recommended for newer OS! No Windows 10/11 support
Contact us regarding replacement
The chipset is EOL
Atom 1.6 GHz CPU N2600
2 GB RAM DDR3, So-DIMM socket
​1 x RS232/422/485 with DB9 connector
1 x RS232/422/485/CAN with DB9 connector
VGA
4 x USB 2.0
2-in/2-out digital
2 x 10/100/1000 RJ45 ethernet
Mini SIM slot
2.5" SSD/HDD slot (hard drive NOT included)
DIN rail mounting
9~32 VDC
Dimensions: 145 x 102 x 50 mm
Temperature: 0 - +50°C
OS support: Windows 7, XP Embedded and Linux

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPC-EMDIN-ATOM+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Atom-N2600 1.6GHz, 1MB L2 cache (Intel dual core CPU)
Chipset NM10
Hukommelse 1 x 200-pin DDR3-RAM SO-DIMM. Monteret med 2GB RAM (maks. 2GB)
I/O 1 x Digita I/O tilslutning via 6 pin terminalblok. Tænd/sluk knap, 1 x Power LED, 1 x HDD LED 1 x PCIe Mini-card interface til trådløs eller GPRS modul
Lyd 1 x lydudtag via jack-stik til hovedtelefon
Montering Mulighed for DIN skinne montage. Eller VESA 75*75 panel montering
Netværk 2 x 10/100/1000 Mbit m/RJ45-stik Realtek RTL8111F
OS SUPPORT Understøtter Windows 7, XP Embedded og Linux
Porte 1 x RS232/422/485 med DB9-stik. 1 x RS232/422/485/CAN med DB9-stik
SSD 2½” SATA harddisk
Strømforsyning 9~32 VDC, 35V A via 2 pin skrueterminal (benyt DC12V/5A-R-Q)
VGA 1 x VGA analog med DB15 tilslutning

Industrial mini PC
3½” format
Suitable for industrial automation tasks
Can DIN rail be mounted or panel mounted
Other models/specifications can be supplied
We offer to assemble and install software as desired. Contact our sales department.

Reguleret 100-240 VAC til 12 VDC strømforsyningforPower Supply
12VDC 5 Amp (60Watt) power supply, 100-240 VAC, plug: 5.5 / 2.5mm, C14 plug

Power supply 100 - 240VAC to 12 VDC / 5A, switch mode. 2.5mm / 5.5mm Jack
Power cord included.

355.00 kr
Item Number: DC12V/5A-R-Q
On the way in
ADD TO CART
Quick view

Other products in same category:

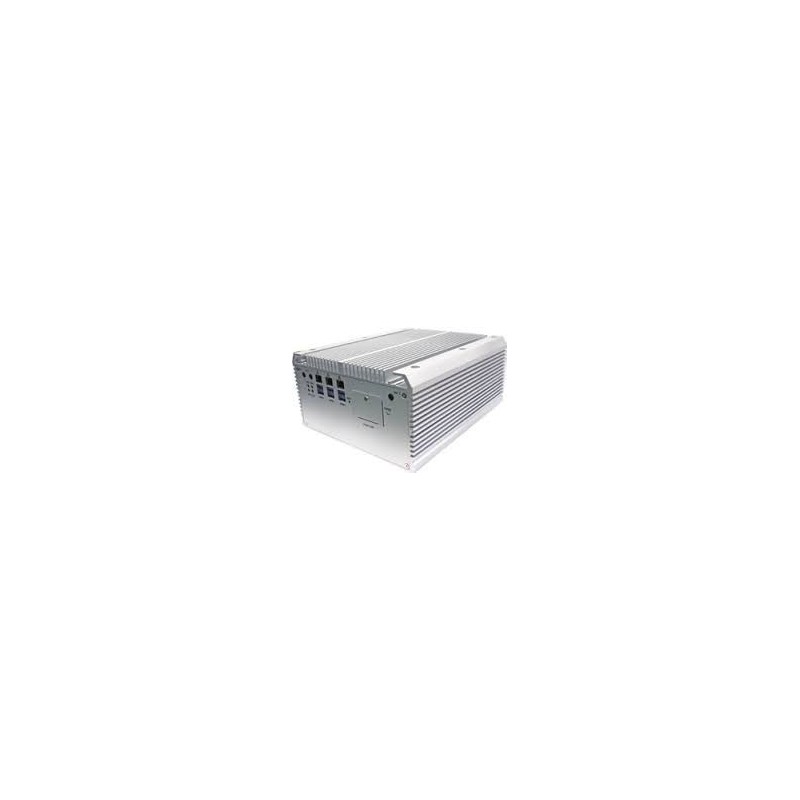

Industriel BOX PC med 2 x PCIex udvidelse. Intel i7/i5/i3 Haswellfo...
Industriel BOX PC med 2 x PCIex udvidelse. Intel i7/i5/i3 Haswell

Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported
3xGbit

Call +45 56 66 20 20 for price
Item Number: IPC-I5-2PCIEX
On the way in
ADD TO CART
Quick view
Embedded fanless PC Apollo Lake Atom to minus degrees POC-351VTC - DANBIT
Industry PC for vehicles, Intel Apollo, 4xcom, 4XDI / DO, isolated CAN bus

Intel® Apollo Lake Atoms ™ E3950 quad-core processor
4-ch isolated di and 4-ch isolated do
1X isolated CAN bus 2.0
1 x M.2 Socket
3 x Mini-PCie Socks
8 ~ 35V DC Input
Operating Temp: -25 ° C Till 70 ° C
1x DDR3L-1866, up to 8GB

Call +45 56 66 20 20 for price
Item Number: EPC-E3950-DIO
On the way in
ADD TO CART
Quick view
Dual Head VGA KVM Switch - KVM switch - 4 ports - USB
Iot Embedded PC Fanless, Railway Approved, -40°C to 70°C RS232 / 422/485, USB, Triple Display Support, 9 ~ 48VDC

Embedded 8th Gen Intel® Core™ U i7/i5/i3 CPU (TDP 15W)
1x 2.5" front-accessible SATA HDD bay for quick access and 1x mSATA socket
2x full-size Mini PCIe sockets for module expansion
2x front-accessible SIM card slots for signal redundancy
Optional CMI modules (2x 10 GbE LAN, M12 A-coded, or M12 X-coded)
Optional CFM modules (power ignition sensing, or 4x PoE)
Wide operating temperature -40°C to 70°C
203 mm (W) x 142 mm (D) x 66.8 mm (H)
MIL-STD-810G, EMC CE, FCC, ICES-003 Class A, EN50155 (Only EN50121-3-2), E-mark Safety IEC/EN 62368-1
9~48VDC via 3-pin Terminal Block

Call +45 56 66 20 20 for price
Item Number: EPC-IXGEN8C-2E2C6U
On the way in
ADD TO CART
Quick view
Embedded Fanless PC CAN bus interface RAID 0/1 POE Intel Gen 8/9 for Car and train use E-MARK and EN 50155 approval
Embedded E-MARK, fanless embedded computer, EN50155 certification with 4x M12 PoE+ ports, DIO, CAN bus and RAID GEN 8/9

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE + ports via M12 or RJ45 connectors (To be specified when ordering)
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

Call +45 56 66 20 20 for price
Item Number: EPC-CAR-GEN8
On the way in
ADD TO CART
Quick view
Powerful Industrial GPU Computer with Medical Approval
Industrial GPU Computer with Medical Approval, Gen 9 i7 CPU

Core i7-9700E 2.6Ghz
16GB Ram (optional up to 64GB)
DP x 1, VGA x 1, HDMI x 2
1x PCIe 16x to GPU 250W max
2x COM,2x LAN, 10x USB
Windows® 10 , Linux

Call +45 56 66 20 20 for price
Item Number: IPC-GEN9-MEDIC
On the way in
ADD TO CART
Quick view
Embedded Fanless PC CAN bus interface RAID 0/1 POE Intel Gen 8/9 for Car and train use E-MARK and EN 50155 approval
E-MARK, fanless Embedded computer, with 8x RJ45 PoE + ports, DIO, CAN bus and RAID GEN 8/9

EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control

Call +45 56 66 20 20 for price
Item Number: EPC-CAR-GEN8+
On the way in
ADD TO CART
Quick view

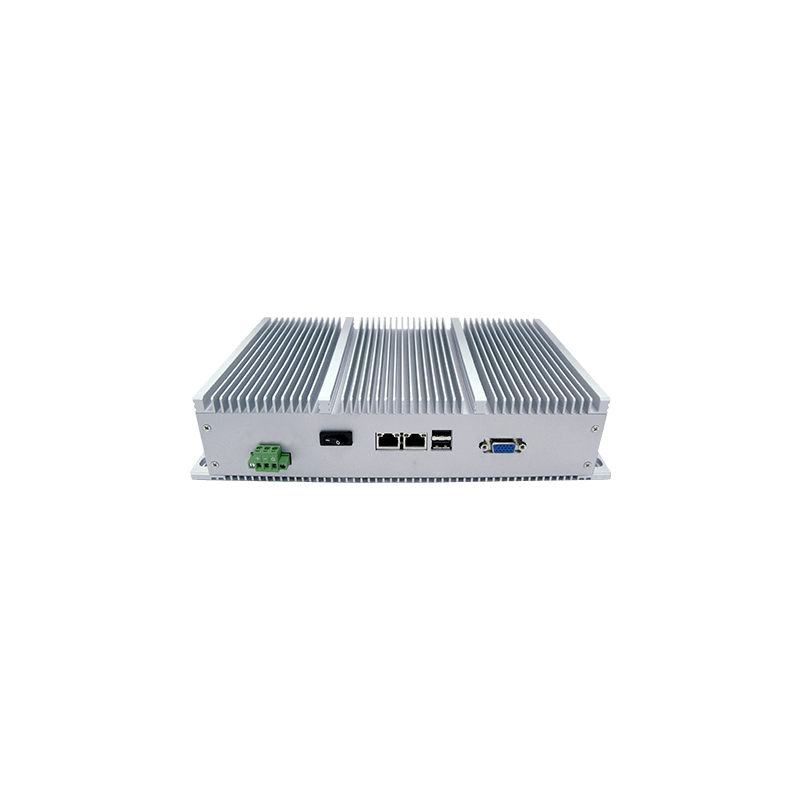

DNV approved Marine Computer I330EAC-ID3 Intel® Atom® N2600 Winmate
Embedded DNV Marine approved PC, 3 x RS422/485 Isolated, D2550 1.86GHz, 2 x Gbit

Design for Industrial Automation, M2M solutions

Onboard Atom Dual Core D2550 1.86 GHz processor

1 x DDR3 SODIMM, max. 4GB

3 x RS422/485 communication with isolation protection

Support 8 GPIO of Phoenix type Terminal Block

2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line out, Micro I

Fanless, High-efficiency thermal design weight/sealed construction

OS support: Windows7 32/64bit, Windows10 32/64bit,

1.5kV DC insulation resistance DNVGL-CG-0339, IEC 60945 4th Egdtion, CE/FCC

Call +45 56 66 20 20 for price
Item Number: IPC-ATOM-D2550M
Physically in stock
ADD TO CART
Quick view

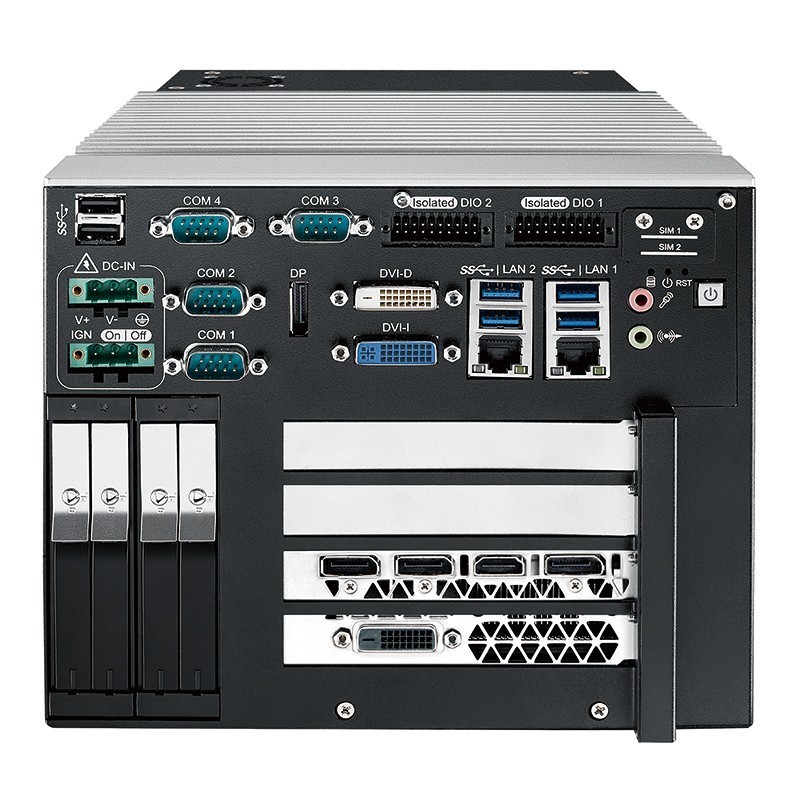

Industrial PC, i7 processor, x DVI, 1 HDMI, 4 display port, 2 x GigE
