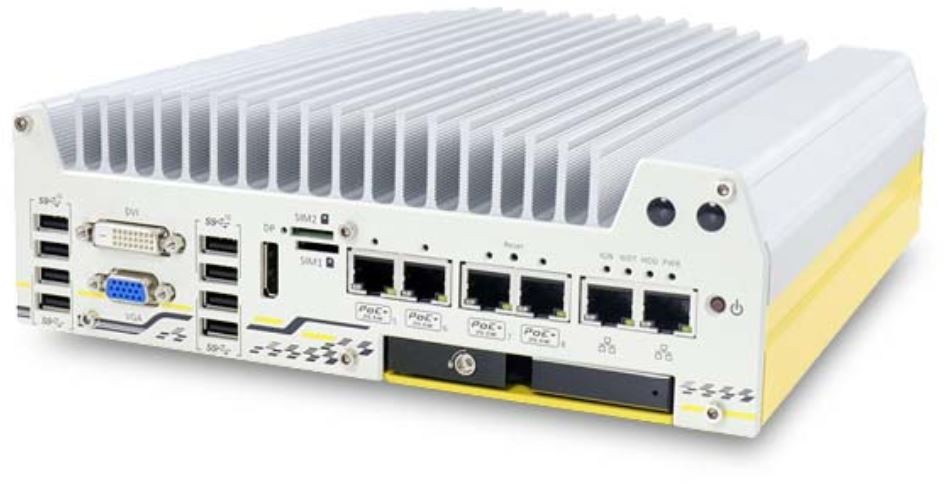

E-MARK, fanless Embedded computer, with 8x RJ45 PoE + ports, DIO, CAN bus and RAID GEN 8/9
EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control
Call +45 56 66 20 20 for price
Quantity
On the way in
Product number EPC-CAR-GEN8+
Specifications
CPU | Supporting Intel® 8th/ 9th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) - Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE - Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE - Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE |
---|---|
Chipset | Intel® Q370 Platform Controller Hub |
Approval | E-Mark (Nuvo-7108VTC) CE/FCC Class A, according to EN 55022 & EN 55024 |
Chok/Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
Digital I/O | 4x isolated DI and 4x isolated DO |
Dimensioner | 240 mm (W) x 225 mm (D) x 84 mm (H) |
Driftstemperatur | -40°C ~ 70°C For sub-zero operating temperature, a wide temperature HDD/SSD is required, For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C |
Forsyning | 1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+) Remote Ctrl. & Status Output 1x 3-pin pluggable terminal block for remote control and PWR LED output |
Grafik | Integrated Intel® HD Graphics 630, 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
Hukommelse | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
Interface | 1x isolated CAN 2.0 port |
Luftfugtighed | 10%~90% , non-condensing |
Lyd | 1x mic-in and 1x speaker-out |
M.2 | 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
Montering | patented damping bracket (standard) or optional DIN-rail mounting |
mPCIe | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
Porte | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
Storage | 1x hot-swappable tray for 2.5" SSD, 1x Internal SATA port for 2.5" SSD installation, supporting RAID 0/ 1 mSATA, 1x full-size mSATA port (mux with mini-PCIe) M.2, 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
Udgange | 1x VGA, supporting 1920 x 1200, 1x DVI-D connector 1920 x 1200 resolution 1x DisplayPort connector 4096 x 2304 resolution |
USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
Weight | 3.3 Kg |
latest rugged in-vehicle controller featuring purpose-built set and effortless connectivity, powered by Intel® 8th / 9th-Gen Core ™ processors with up to 8-core / 16-thread architecture and 64GB DDR4 memory that gets significant performance increase over previous generations for versatile in-vehicle applications.
The PCprovides flexibility to support a range of peripherals and connections. It offers four or eight 802.3at PoE + ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock / vibration environments. Wireless connectivity is essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G / 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost.
On top of all that, it also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor / actuator control, 8 ~ 35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155. The AiTEch embedded PC is the perfect solution with extraordinary reliability for various in-vehicle application needs.
