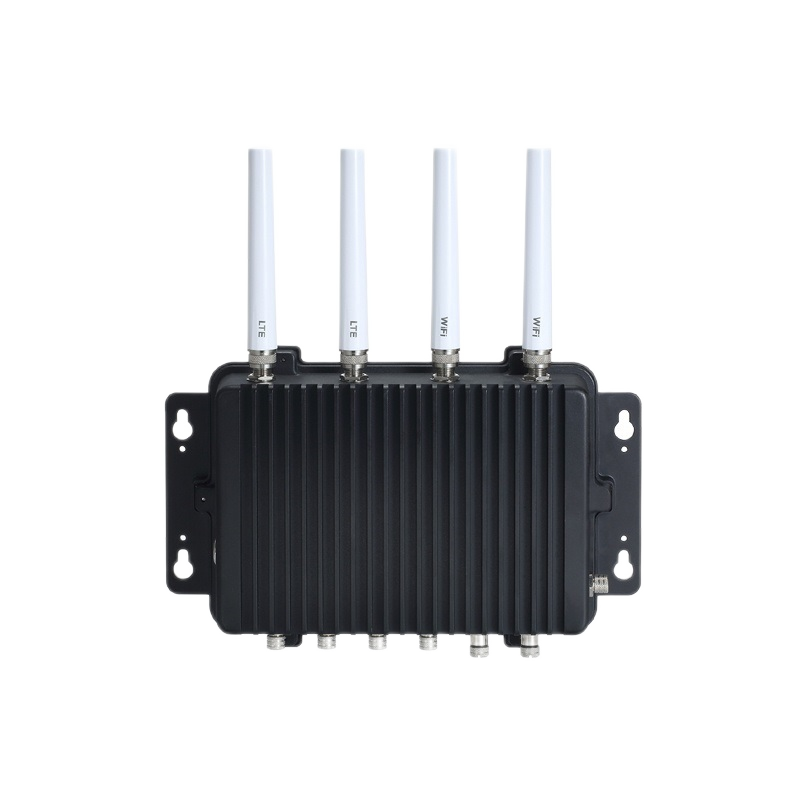

Full IP67 Fanless Embedded PC with Intel® Atom® Processor E3845, VGA, 2 GbE LAN, 2 USB, 2 COM and 9 to 36 VDC

1.91 GHz Intel Atom E3845 CPU
Wall mount/VESA mount
1x 204-Pin SO-DIMM DDR3L-1066/1333Mhz, MAX. 8GB
2 x RS232/422/485 (M12)
2 x USB 2.0 (M12)
2 x 10/100/1000 Mbps Ethernet Intel i210-IT (M12)
1 x VGA
1 x 2.5” HDD drive bay (max. up 9.5 mm height)
1 x mSATA (enabled in BIOS setting)
1 x CFast™
-30°C to +60°C
210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
9 to 36 VDC power input (M12)
OS Support: Win 10 IoT, WE8S, WES7, Linux



EPC-BT-IP67-ATOM
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

This fanless PC with IP67 protection for mission-critical market. The PC is designed for fanless operation at temperatures from -30°C to 60°C. Its 9-36V wide range DC input with various power protection, M12 lockable connectors and N-jack waterproof antenna connectors meet the performance needs for industrial Internet of Things (IIoT) applications. The PC is powered by the onboard quad-core Intel® Atom™ E3845 processor (formally codename: Bay Trail). This hardened embedded box PC comes with one DDR3L SO-DIMM slot with system memory up to 8 GB. Additionally, one 2.5" SATA HDD, one mSATA and one CFast™ are available to maintain sufficient storage.

CPU
Intel® Atom™ processor E3845 1.91 GHz
Chipset
SoC Integrated
BIOS
AMI
Antenne
4 x N-jack antenna opening with waterproof design
Approval
CE, FCC Class A
Chok/Vibration
vibration 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensioner
210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Driftstemperatur
working temperature -20 °C til 60 °C (with E3845, W.T. SSD/DRAM)
Ethernet
2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT, M12)
Forsyning
9~36 VDC power input (M12)
Luftfugtighed
10% to 95% , non-condensing
Materiale
Aluminum die-casting and heavy-duty steel, IP67
Montering
VESA, Wall Mount Ready
mPCIe
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal)
Mål og vægt
4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
OS SUPPORT
Win 10 IoT, WE8S, WES7, Linux
SIM kort
1 x SIM slot
Storage
1 x 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) 1 x CFast™
TPM
1.2 TPM supported
USB
2 x USB 2.0 (M12)
VGA
1 x VGA (M12)
Watchdog
255 levels, 1 to 255 sec.
Serial Porte
2 x RS-232/422/485 (M12)
RAM
1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
