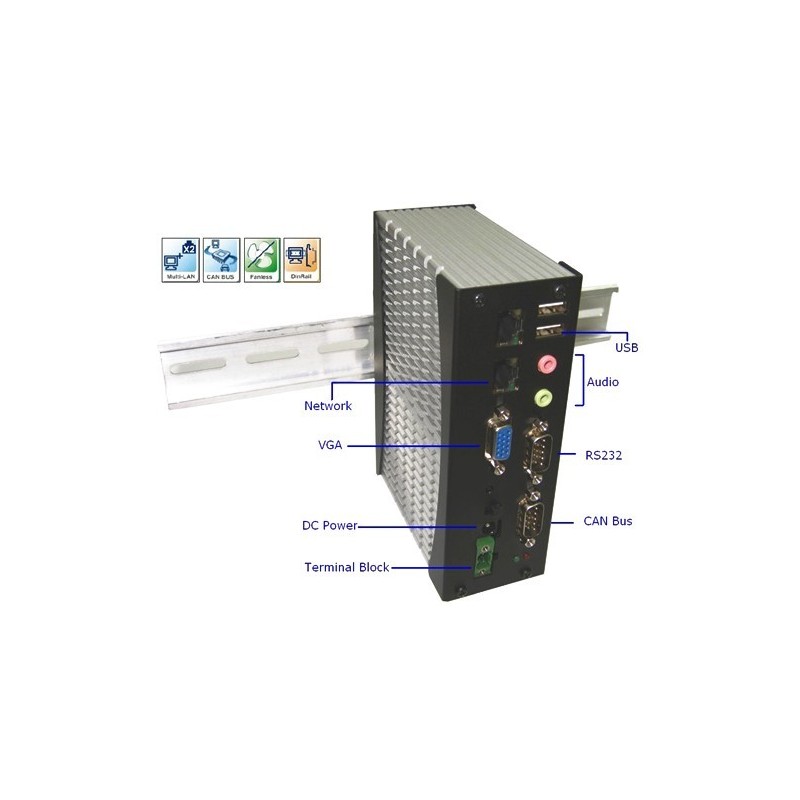

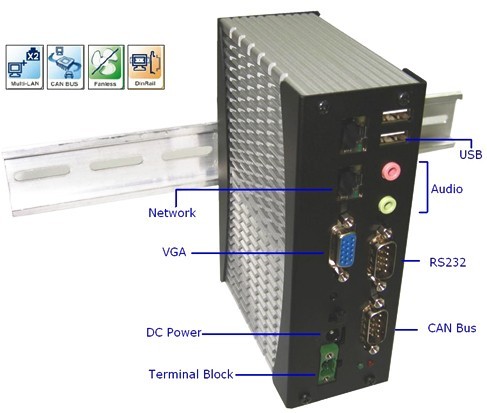

Embedded mini PC uden OS

Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported
3xGbit

Intel® Apollo Lake Atoms ™ E3950 quad-core processor
4-ch isolated di and 4-ch isolated do
1X isolated CAN bus 2.0
1 x M.2 Socket
3 x Mini-PCie Socks
8 ~ 35V DC Input
Operating Temp: -25 ° C Till 70 ° C
1x DDR3L-1866, up to 8GB

Not recommended for newer OS! No Windows 10/11 support
Contact us regarding replacement
The chipset is EOL
Atom 1.6 GHz CPU N2600
2 GB RAM DDR3, So-DIMM socket
​1 x RS232/422/485 with DB9 connector
1 x RS232/422/485/CAN with DB9 connector
VGA
4 x USB 2.0
2-in/2-out digital
2 x 10/100/1000 RJ45 ethernet
Mini SIM slot
2.5" SSD/HDD slot (hard drive NOT included)
DIN rail mounting
9~32 VDC
Dimensions: 145 x 102 x 50 mm
Temperature: 0 - +50°C
OS support: Windows 7, XP Embedded and Linux

Embedded 8th Gen Intel® Core™ U i7/i5/i3 CPU (TDP 15W)
1x 2.5" front-accessible SATA HDD bay for quick access and 1x mSATA socket
2x full-size Mini PCIe sockets for module expansion
2x front-accessible SIM card slots for signal redundancy
Optional CMI modules (2x 10 GbE LAN, M12 A-coded, or M12 X-coded)
Optional CFM modules (power ignition sensing, or 4x PoE)
Wide operating temperature -40°C to 70°C
203 mm (W) x 142 mm (D) x 66.8 mm (H)
MIL-STD-810G, EMC CE, FCC, ICES-003 Class A, EN50155 (Only EN50121-3-2), E-mark Safety IEC/EN 62368-1
9~48VDC via 3-pin Terminal Block

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE + ports via M12 or RJ45 connectors (To be specified when ordering)
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

Core i7-9700E 2.6Ghz
16GB Ram (optional up to 64GB)
DP x 1, VGA x 1, HDMI x 2
1x PCIe 16x to GPU 250W max
2x COM,2x LAN, 10x USB
Windows® 10 , Linux

EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control

Design for Industrial Automation, M2M solutions

Onboard Atom Dual Core D2550 1.86 GHz processor

1 x DDR3 SODIMM, max. 4GB

3 x RS422/485 communication with isolation protection

Support 8 GPIO of Phoenix type Terminal Block

2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line out, Micro I

Fanless, High-efficiency thermal design weight/sealed construction

OS support: Windows7 32/64bit, Windows10 32/64bit,

1.5kV DC insulation resistance DNVGL-CG-0339, IEC 60945 4th Egdtion, CE/FCC
