24VDC 48A (1000W) AC-DC Single Output Industrial Power Supply
Output 24VDC at 42A (1000W)
Input 90VAC - 305VAC
Input-output by terminal block
Remote ON/OFF and DC OK signal
Dimensions 140x41x290mm
Supports 9th/8th Gen Intel® Xeon®/Core ™ processor (35W/65W/80W)
Nvidia / AMD GPU Support up to 328mm
Intel Gen. 8/9, C246 Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
4 X 2.5" Hot Swappable SATA III HDD/SSD BAYS (MAX HEIGHT 15 mm)
1 x M.2 m Key operation (NVME), 1 x M.2 E key (CNVI)
VGA, HDMI, DP
6x USB, 1x UBS internal
2 x RS232/422/485
2 x Front Available SIM card slot for signal redundancy
Power 9~48Vdc, 220W
Dimensions 105x190x360mm (wxDxH)
Operating temperature -40°C to 70°C depending on CPU
9~48VDC via 3-pin Terminal Block
Optional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply
Extreme Computing Performance

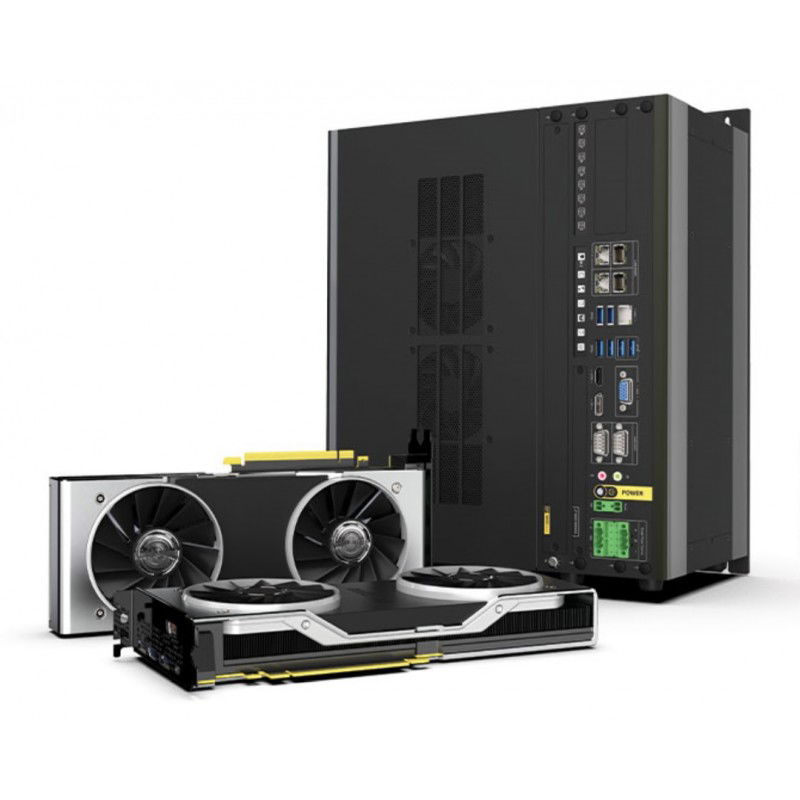

IPC-GEN8/9-GPU Extreme Computing Power starts with an 8th or 9th generation Intel® Xeon® or Core™ i3/i5/i7 (Coffee Lake and Coffee Lake-R) CPU, Intel® C246 chipset, and supports two sets of DDR4 -2666 ECC/non-ECC SO-DIMM up to 64GB and can support up to two 250W high-end GPU cards. With a total power consumption of 720W, it is easy to meet and exceed high efficiency application requirements. A precision heat dissipation and cooling design quickly dissipates heat and keeps the focus entirely on the breathtaking performance of the IPC-GEN8/9-GPU.
CMI technology for various I/O module expansions
CFM technology for current ignition sensor POE function
Versatile Mounting Methods (Wall/Stand/Face-Up/19"Rack Mount)
Military Standard Shock Vibration Proof
Output 24VDC at 42A (1000W)
Input 90VAC - 305VAC
Input-output by terminal block
Remote ON/OFF and DC OK signal
Dimensions 140x41x290mm
2 x PCIE X16 Slots for full length GPU cards
1 x PCIE X4 Slot and 1 x PCIE X1 Slot for add-on cards
Intelligent cooling Design for high-performance GPU cards
Military Standard Shock Vibration Resistant
Supports NVIDIA RTX 30 Series GPU card
1 x PCIE X16 slot for full length GPU card. Max 328mm
1 x PCie X4 Slot
2 x 8-pin GPU power plug. Max 350W
1 x USB-A 2.0
Intelligent cooling Design for high performance GPU card
Military Standard shock Vibration-proof
Chipset: Embedde Vortex86 166MHz System-on-Chip CPU, Real Time Clock with lithium battery backup
BIOS: AMI BIOS
Enhanced IDE interface
I/O: IrDA pin-header for wireless communication
Parallel Port x 1
RAM Socket: 144 pin SODIMM Socket supports PC133 SODIM up to 128MB.
RS232 port x 1
USB ports x 3
Last stock product is EOL!
EN50155 certification and IP67 rating
Fanless and ruggedized design
Robust M12 connectors for dual GbE, USB and power input
Dual SIM sockets support WWAN redundancy
Rich I/O interfaces for wireless, SSD, GPS, WWAN
Ignition power control
Wide-range voltage GPIO interface
i7 Haswell i7 4578U 3.0GHz, Dual Core, 4 Threads 4MB Cache
2 x SO-DIMM DDR3L, Max. 16GB
TPD 28W
Intel Irus Graphics 5100
2 x Intel Gbit RJ45, Wake on Lan, PXE
6 x RS232/422/485 (2 is BIOS select RS422/485)
8 x USB (4xUSB3.0, 4x USB2.0)
SIM card slot
GPIO
HDMI, VGA (dual display support)
1x MSATA3.0, 1x mini PCIe
-20 ~ +75 Centigrade (requires special RAM)
OS Support: windows 7, 8, Windows 10, Linux
212,5x149,5x52mm
12Vdc
17" 1280x1024 Pixel
350 Nits
4 x COM
2x Ethernet
DVI-I / HDMI
Touch
2 x PCIe x 8
