LAN extenders are used for a wired network connection (RJ45 PDS / PDU cable), where the distance between the 2 points is longer than the limit of 100 meters. If it is physically possible, up to 2 pieces can be placed. LAN extenders every 100 meters. It provides a maximum length of 300 meters. The LAN Extender is actually a 2-port network switch.
There are LAN extenders powered by PoE voltage. This PoE voltage can be passed on to the next 2 LAN extenders.
LAN distances in excess of 300 meters can be solved with VDSL modules, which can reach over 1 km. The connection is a 2-wire pair-twisted or coaxial cable.
LAN extenders over the mains are an emergency solution and here the 2 to several ELNET devices must be in the same phase .
PoE extender with 1 x PoE in and 2 x PoE out
PoE extender to 100 meters.
Powered from the PoE source.
Power consumption: 2W
PoE to next extender
Up to 500 meters
100/1000Mbits
IEEE802.3af/at/bt
Temperature: -20 to +60°C
Dimensions: 133 x 73 x 41 mm
Break 100 meter border with VDSL over RG59 Coax cable
1 x RJ45 10/100 / 1000Mbit
Up to 300mbit / s - duplex (automatic speed optimization)
Unroubing Data connection
Temperature: 0-50 ° C
5VDC 2A Power supply included
75Ω cable must be used
Use 2 pcs. Eth-VDSL-RG + G to a connection
Ethernet med PoE over RG59 Coax-kabel - VDSL princip.
Forlæng PoE-forbindelsen op til 500 m via Coax kabel
Egnet til IP kamera m/Poe over eksisterende Coax-kabler.
REMAINING STOCK
Ethernet over telephone cable 1 x twisted pair cable
VDSL module with 8 port switch and SFP slot
Up to 100Mbps at 300 meters
Up to 1km - automatic speed adjustment
Break the 100 meter limit with a VDSL connection
Transparent data connection
8 port VDSL2 switch with 2 shared RJ45/SFP ports
Purchase ETH-VDSL2ROUTER to create a link
Transparent Ethernet connection up to 1200 meters
Medium range from 11 - 80 Mbps up to 1200 meters
Long range from 14 - 89 Mbps up to 700 meters
Range depends on cable quality etc.
Note: 2 pcs. to make a connection.
1 x RJ45 for LAN
1 x RJ45 for Link (RJ11 can also fit in the female connector
DIP switch to select Master or Slave mode
Dimensions: 97 x 70 x 26 mm
Cabinet: Metal
Weight: 189g
Supply voltage: 5VDC/2A
Temperature: 0 - +50°C
Use 2 pcs. Eth-VDSL2 + for an Ethernet connection (Bridge)
up to 1.4 km Ethernet connection with 2 pcs. VDSL devices
Poe over 2-wire connection
1 x LAN 10/100 / 1000Base-T RJ45 Auto-MDI / MDI-X Port
1 x VDSL2 RJ11 She
Splitter for analogously Telephone connection included
Power supply: 54V / 0.74A included
POE + (30W) for eg. Access Point, IP camera.
Prepared for your mounting, wall mounting
Your fittings are purchased
Use VDSL connection over 2-thread cable where WiFi is an unstable connection
up to 1.4 km above eg. Conducted phone cable with 2 pcs. VDSL modules
Use 2 pcs. ETH-VDSL2+4+ or ETH-VDSL2+A and ETH-VDSL2+4+
Ethernet over 2-wire connection with VDSL
Ideal solution When the network distance is over 100 meters of border
ideal solution when a WiFi Link is an unstable connection
providing a transparent data connection
supply: 5VDC, 2A power supply included
DIP switch: VDSL connection must be set to CPE and the other for CO.
Prepared for your Montage, wall assembly. Your fittings are purchased
Order 2 pcs for a set.
Use VDSL connection over 2-wire cable, where Wifi is an unstable connection
Provides a network connection without affecting data
Up to 1.4 km Ethernet bridge over e.g. 2-wire laid down telephone cable
Speed depends on cable and length - up to 90Mbps
Automatically adjusts speed to highest speed
Can also communicate with ETH-VDSL2+4+ (with 4 port switch)
1 x LAN 10/100 BASE-T RJ45 auto-MDI/MDI-X port
1 x RJ11 female (pin 3 and 4)
Supply: 5VDC, 2A power supply included
DIP switch: VDSL connection, one must be set to CPE and the other to CO.
Prepared for DIN mounting, wall mounting. Your bracket is purchased separately
SOLD SINGLELY! Order 2 pieces for a set.
1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp
10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
4 pieces. Extenders provide a maximum distance of 500 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm
PoE In: Max 30.8 Watts
PoE Out: Max 26 Watts
Weight: 189g
Rest storage
2 Ports Repeater to 10 Base2 and 10 Base5 Network
BNC / Aui Ethernet
can convert between Aui and BNC networks.
WiFi Booster 500mW, 11/54 for indoor use
2-way WiFi amplifier. NOTE: max. Radiated power may be 100 mW
Ethernet through the same phase of electric cables - sold as a set (2 pcs.)
Not suitable for industrial use.

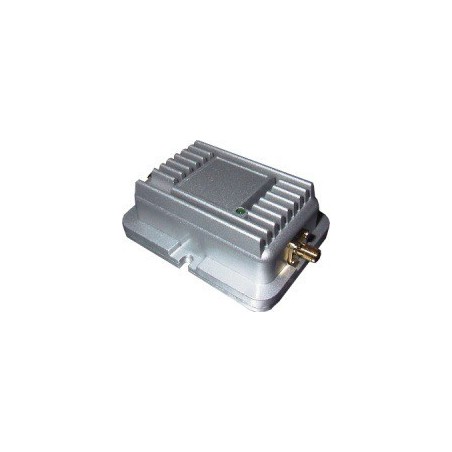

WiFi Booster 200mW, 11/54 for indoor use
2-way WiFi amplifier. NOTE: max. Radiated power may be 100 mW

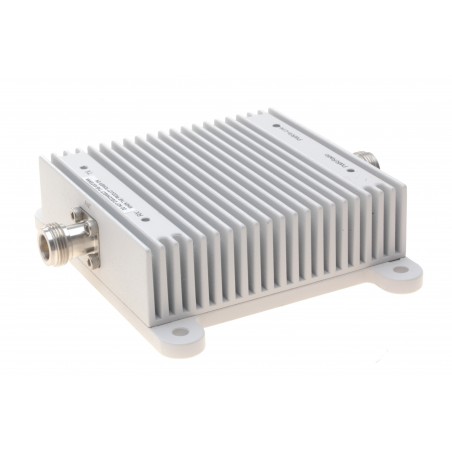

WiFi booster 1W, 11/54 for outdoor use
2-way Wifi amplifier. NOTE: maximum radiated power must be 100 mW
NOTE: Cable not included
