At Danbit we have a vast knowledge of configurations including UPS power supplies. UPS stands for Uninterruptible Power Supply, and acts as a backup system for the connected equipment such. a PC or other. Setting up the UPS system is seen primarily in hospitals and other places where a stable power source is decisive for the performance and thus avoids loss of data, and more.
At Danbit we offer UPS configurations suitable for rack mounting or are portable. Contact us today and learn more about the wide range.

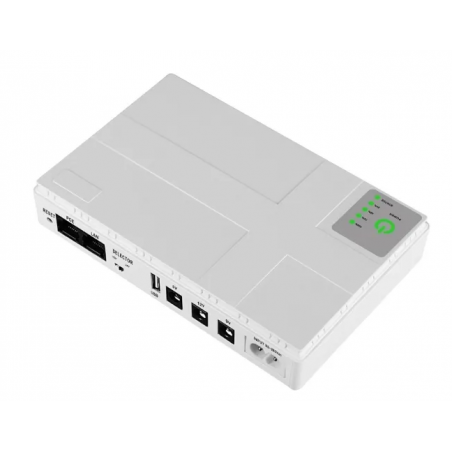

Versatile UPS with DC output voltages
10400mAh battery capacity
85 - 265VAC input.
3 pieces. DC jack with 5VDC, 9VDC, 12VDC max. 12W
1 USB 5VDC 10W
Passive PoE output (PoE injector) max. 14W
It is a POC (power over cable)
Choose between 15VDC and 24VDC (Not PoE standard!)
DC cables included
Dimensions: 160 x 102 x 32 mm
Compact size can be desktop or wall-mounted
Excellent microprocessor control guarantees high reliability
Auto restart while AC is recovering
Simulated sine wave
Cold start function
6 outlets
2 ports USB charger 5V / 1A (Max.)
RJ45 surge protection
Touch LCD in AC & Battery mode
18500 Lithium-Ion battery
Rated voltage: 3.7V
Capacity: 2040mAh
Max. load: 3.8A
Operating temperature: +10 ~ + 45 ° C
Charging method: CC-CV
Dimensions: 18.5 x 49.5 mm
Weight: 36.5g
Without protection circuit
Input voltage 95-265VAC
Manual Select voltage: 5V / 7.5V / 9V / 12V
Adapters for 3.5 x 1.35mm, 4.8 x 1.7mm, 5.5 x 2.5mm
Main DC connector 5.5 x 2.1mm
Digital with Microprocessor Control
Battery Level, Battery Life Led Indicator
Over Discharge, Overload, Short Circuit Protection,
Over Charge, Surge Protection
Net adapter with mini UPS 12W, 2,1A
Connection to 5.5 x 2.1mm
Entrance 95-265 VAC
Exit 12VDC 1A 12W
3.7V Lithium-Ion 18650 type Battery (2600mAh)
short circuit protection
Backup time: 6W is less than 30min
Backup time: 12W is less than 10 min
dimensions 87 x 59.8 x 29 mm

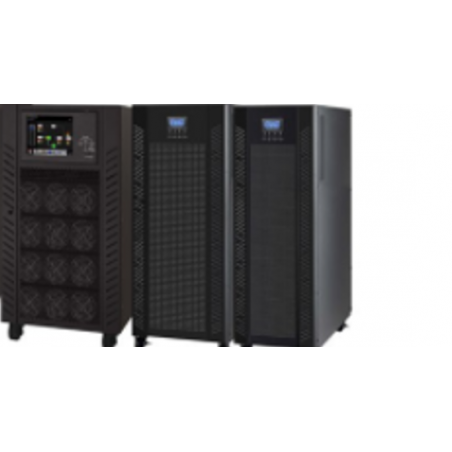

Top Class 3-phase 30.000VA / 30.000Watt Online UPS / back-up power
Input: 3 x 305 - 478VAC 50 / 60Hz
Output voltage: 3 x 380 - 415VAC 50Hz or 60Hz
backup time by 2 x extra Battery Bank: up to 30min at 50% load
LCD Display
three-phase
True sine wave - noiseless output voltage
Tower with Tower Battery Pack
Dimensions: 1000 x 815 x 300 mm
Weight: 225 kg
Professional ON-LINE UPS. Life-critical equipment, Serverrum etc.
UPS is separate battery boxes with Hot-swappable battery design
Double-conversion UPS with noiseless output voltage
Select if the UPS should be installed in the rack or stand as Tower
Nominal input voltage: 200 - 240VAC at 100% load
Voltage range: 110 - 300VAC at 50% load
Output voltage: 200 - 240VAC (230VAC 50Hz)
On-line means that battery backup is always connected - no power switching
Each battery box contains 20 pieces. 9Ah batteries - must be purchased
Intelligent UPS with power management, communications ports, display and alarms
Dimensions: UPS and battery box: 606 x 438 x 133 mm (3U)
Noise level: Less than 58 dbA @ 1 m
UPS with DIN bracket for control panel, electrical cabinets, rack cabinet like.
Compact all-in-one to the DIN rail UPS 500VA / 300watt
Output voltage: 230VAC / 50Hz - genuine sine wave
Line-interactive means switching at power failure (2-6ms)
Nødforsynings time: 50% load for about 12 minutes
Noise level: Less than 40 dbA at 1 meter
output voltage is sine wave
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Battery: 1 pc. 12V / 7Ah - see manual for life
Dimensions: 250 x 135 x 115 mm | Weight with battery: 2.8 kg
Operating temperature: 0 - + 40 ° C
To prevent loss of data during power failure

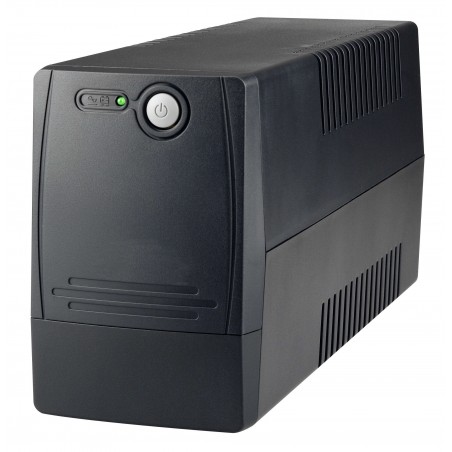

Compact Tower UPS 1000VA / 600Watt
Output voltage: 230VAC / 50Hz
Line-interactive means switching at power failure (2-6ms)
Battery time: 25% load for about 18 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software download USB and RJ45 port, touch display
Battery: 2 pcs. 12V / 7Ah - see manual for life
Not suitable for printers and scanners
Dimensions: 320 x 182 x 130 mm
Weight with battery: 8.2 kg
Operating temperature: 0 - + 40 ° C
To prevent loss of data during power failure
Compact Tower UPS 1500VA / 900Watt
Output voltage: 230VAC / 50Hz
Line-interactive means switching at power failure (2-6ms)
Backup time: 50% load for about 6 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software
Battery: 2 pcs. 12V / 9Ah - see manual for life time
Dimensions: 320 x 182 x 130 mm
Weight with battery: 10.6 kg
Operating temperature: 0 - + 40 ° C
To prevent loss of data during power failure
Compact Tower UPS 800VA / 480Watt
Line-interactive means switching at power failure (2-6ms)
Nødforsynings time: 50% load for about 3 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software
Battery: 1 pc. 12V / 7Ah - see manual for life
Dimensions: 279 x 142 x 101 mm
Weight with battery: 4.9 kg
Operating temperature: 0 - + 40 ° C
Avoid data loss in the event of a power failure
Compact Tower UPS 600VA/240Watt
Line-interactive means switching on in case of mains failure (2-6ms)
Emergency supply time: 50% load for approx. 6 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine curve (stair step curve)
4 hour recharge time to 90% capacity
Auto restart when mains supply is re-established
Battery: 1 pc. 12V/7Ah - see manual for lifespan
Dimensions: 279 x 142 x 101 mm
Weight with battery: 4.2 kg
Operating temperature: 0 - + 40°C
Singel Phase
Line-Interactiv
GreenPower UPS bypass Technology
230 ± 10%
Schuko
400VA
Overloadprotection
3 x schuko out
Runtime at 60W 28Min
Runtime at 90W 16 min
Sealed Lead-acid battery
Miniature lithium polymer battery
300mAh
3.7V
Rechargeable
Operating temp. -10 ° ~ 50 ° C
Dimensions: 30 x 20 x 6mm
Rechargeable Batteries - Lead / Lead / Dioxide
Battery Pack with 6 x 12V / 9Ah
Used for UPS-3KVA
Pol Type: 6.3 mm
Operating Temperature. -15 ° C to + 40 ° C
Dimensions 600 x 438 x 88mm
Weight: 26.6 kg
Bypass-Switch til udskiftning eller vedligeholdelse af uafbrydelige strømforsyninger (UPS)
19" rackmontering, 1U
Synlig LED-Display
1 output „zur USV“ IEC C13, 10A / IEC C19, 16A
1 input „von USV“ IEC C14, 10A / IEC C20, 16A
4 x IEC C13 udgange 14A
3 x RJ45, LAN og Sensor
1 x IEC C14 10A/ IEC C20 16A Strømforsyning

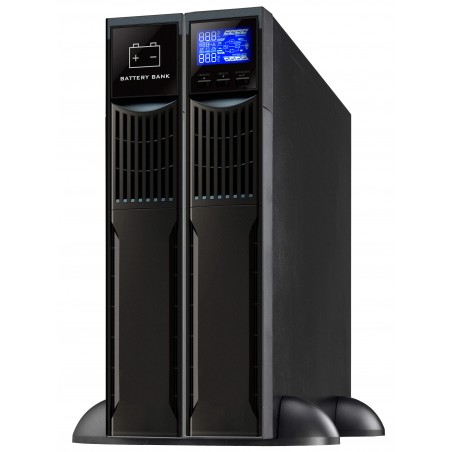

Top class 3.0 kVA / 2.4 kW online UPS / emergency power
Input: 110-300 VAC 40Hz-70 Hz
Output voltage: 230 VAC / 50Hz
LCD Display
Single phase
Genuine Sine Curves - gives less noise on the output voltage
Rack / Tower 2 in 1
Built-in input OVCD
Foot / stand or for rack mounting
1 x IEC 320 C20 Terminal (input)
4 x IEC 320 C13 (output)
Approvals: IEC 62040-1 (safety) IEC-62040-2 (EMC)
DC input
Incl. battery pack: 6 x 12V / 55Ah
6.0 kVA / 5.4 kW UPS inkl. batterier
UPS 6000VA 5400W, 176-300VAC
Model 230V: +/- 10%, 50Hz (+/- 0.1%), 2 - 6 ms typical, Simulated Sinewave
Alarm: UPS Status, ladeniveau, batteriniveau, Input/Output, afladning og fejl indikator
Dimensioner: 580mm (D) x 438mm (W) x 133mm (H) (3U)
Til 19" rackmontage
Vægt: 17 kg

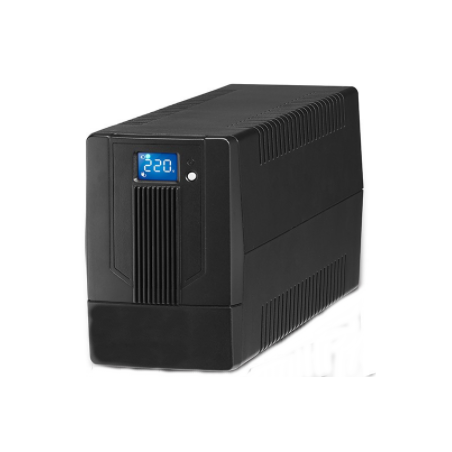

2000 VA UPS for industrial use
3 x Schuko
3 x IEC
Modified sine wave
6 hours recharge time
Alarm v. Low battery and overvoltage mm
1 x USB (type B)
Operating temperature: 0-40 °
Supports automatic shutdown via software
included. 2 x 9 Ah battery

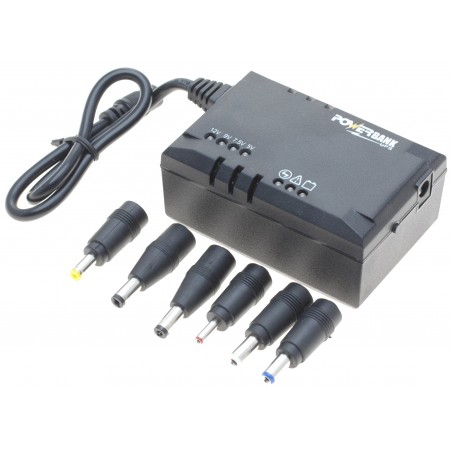

Universal DC UPS 12 watts
Output Voltage: 5VDC / 7.5VDC / 9VDC or 12VDC
6 different DC Jack connectors included in 5200mAh (Li-Ion batteries)
