Managed Industrial switch for harsh environments

Cybersecurity SSHv2/TLSv1.2

Ethernet Ring Protection

e-Mark Certified (vehicles/ITS)

Can support 2.5Gbit SFP module

8 port industrial Gigabit switch, RJ45 with PoE+

Intelligent PoE

2-port SFP 100/1000/2500Mbps

Supply voltage: 48-54VDC

PoE power budget: 240W

Redundant power supply connection

IGMP snooping, MLD snooping

IEEE 1588 Time synchronization protocol

ONVIF - discovery / Floor Map

Modbus TCP real-time (SCADA)

Extended temperature range from -40 to +75 °C

DIN rail or wall mounting

Dimensions: 152 x 107 x 77 mm

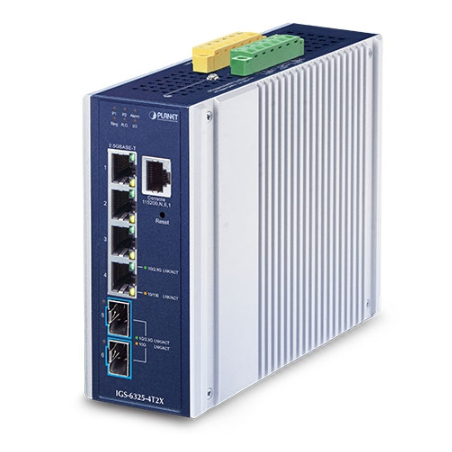

4 x 10/100/1G/2.5GBASE-T RJ45 copper ports
2 x 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
1 x RJ45-to-RS232 console interface for basic management and setup
DC 9 to 48V input or AC 24V input
DIN-rail and wall-mountable designs
IP30 aluminum case
Temperature -40 to +75 degrees C
2 x digital input (DI)
2 x digital output (DO)
Integrates sensors into auto alarm system
Transfers alarm to IP network via email and SNMP trap
IPv4 dynamic routing protocol supports RIPv2 and OSPFv2
IPv6 dynamic routing protocol supports OSPFv3
IPv4/IPv6 hardware static routing
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
Supports IPv4 IGMP snooping v1, v2 and v3
Supports IPv6 MLD snooping v1 and v2
Switch Management Interfaces
SNMP Management

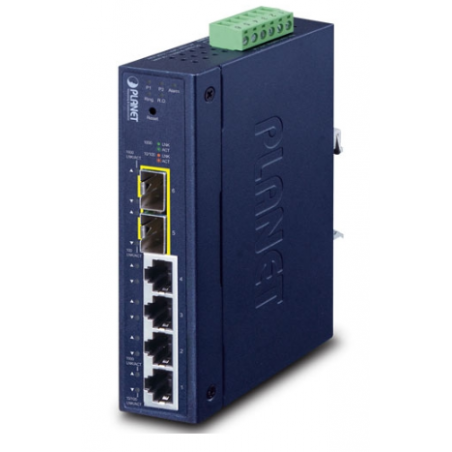

Managed Gigabit switch 2 x RJ45, 2 x Fiber
4 x RJ45 10/100/1000Mbps
2 x SFP 100/1000Mbps
Support ERPS (Ring protection)
IGMP/MLD Snooping (IPv4, IPv6)
Up to 256 VLAN groups
Support Cisco ether-channel (Static Trunk)
Port mirroring - up to 4 sessions
Supply voltage: 9 - 48VDC, 24VAC
Size: 135 x 88 x 32 mm
Temperature: -40 to +75°C
DIN-mounting

Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac

Managed 10/100/1000Mbit Robust Industrial Switch
Vibration Safe and dust proof
M12 5 Pin Coded connector
with automatic Bypass for next switch if failure
IEEE 1588v2 Precision Time Protocol (PTP)
PTP is time synchronization in infrastructure
Modbus TCP/IP to SCADA
SMTP / SNMP Trap - generates Email Alarm
IGMP and MLD Snooping for Multicast
VLAN Routing (Layer 3)
CyperSecurity Minimizes safety risk / attacks
Redundant Ring, Fast Recovery
Supply voltage: 9 - 48VDC Redundant Input
Dim: 245 x 140 x 25 mm
Operating temperature: -40 - +75°C
DIN bracket , wall bracket
Weight: 1kg

Managed PoE Switch with 8 RJ45 and 4 SFP slot
8 x 10/100 / 1000Mbit with PoE ++ (95Watt)
PoE power budget is 360Watt (45Watt per port)
PoE utvidga mode - max. 160 - 200meter
2 x 100 / 1000Mbit SFP slot - for Single- and Multimode SFP module
2 x 10Gbit SFP slot
2 x Digital input
2 x Digital outputs (Open Collector)
IGMP Snooping Seite 128 VLAN interfaces
IEEE 1588v2 Precision Time Protocol (time  syncronising)
Operating temperature: -40 - + 75 ° C
Dimensions: 152 x 108 x 77 mm
Weight: 1, 2kg
Supply voltage: 48 - 56VDC (recommended min. 52VDC) 8amp

Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams

Managed Industry switch to harsh environment
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module
8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2 port SFP 100/1000/2500Mbps
Supply voltage: 12 - 48VDC / 7A
PoE power budget: 60W at 12V, 120W at 24V, 240W at 48V
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
Modbus TCP real time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm

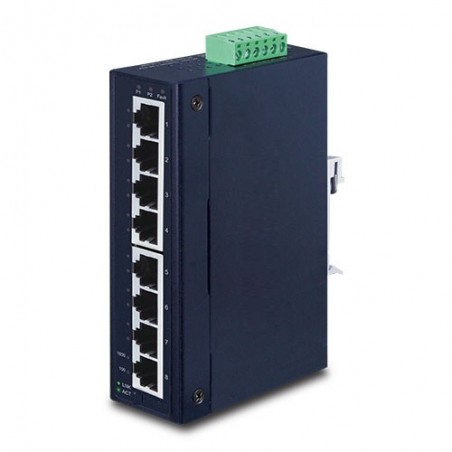

8 Ports Managed Switch With Fast Recovery and Ring
Erps (Ethernet Ring Protection Switching)
8 x RJ45 10/100/1000Mbit Switch
Store and Forward Architecture, Broadcast Storm Checking
1.5mbits SRAM Packet Buffer
Automatic Address Learning and Address Aging
Supply paging: 12 - 48VDC or 24VAC
