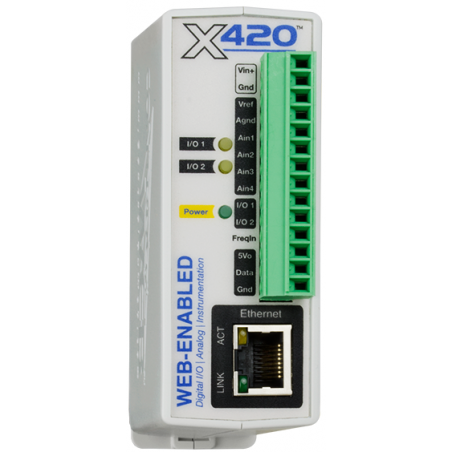

Web Analog I/O volt, 0-20mA

4 x analog inputs with common GND
input voltage: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
Input current: 4-20mA - 200 Ohm Shunt resistance
2 X digital inputs / outputs: 0 - 5VDC
Digital I/O and Counter set up via the web server
1-wire bus for a maximum of 16 sensors
Temp/moisture/ultrasound, etc.
ermissions: Administrator, Manager , User
Tasks
50 Schedule Scheduled
50 Conditional
20 Torrect Scheduled
Email Alarms Based on Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
Basic script support for advanced flexibility
Logging and graph view
static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering

4 x analog inputs with common GND
input voltage: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
Input current: 4-20mA - 200 Ohm Shunt resistance
2 X digital inputs / outputs: 0 - 5VDC
Digital I/O and Counter set up via the web server
1-wire bus for a maximum of 16 sensors
Temp/moisture/ultrasound, etc.
ermissions: Administrator, Manager , User
Tasks
50 Schedule Scheduled
50 Conditional
20 Torrect Scheduled
Email Alarms Based on Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
Basic script support for advanced flexibility
Logging and graph view
static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering

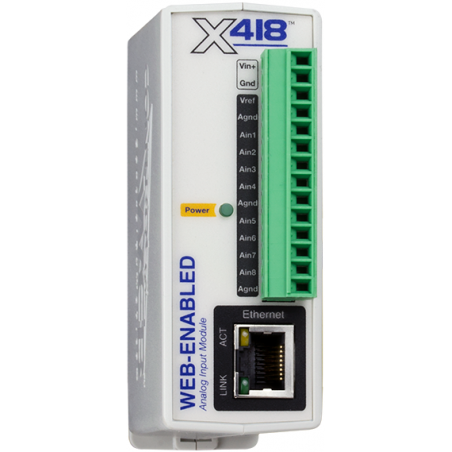

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC

Network-based analog output Module
5 x Separate analogue output channels
Output signals: 0-5V, 0-10V, ± 5V, ± 10V, 4-20MA
The output signals are software configured
output signals are independently programmable and scalable
built in isolated DC-DC Supply
Voltage supply: 9 - 28VDC / 5WATT
No special software or device drivers Required
Password Protected Web setup and control pages
Static or DHCP IP address
XML and Modbus / TCP
can be updated on site
removable terminal connector

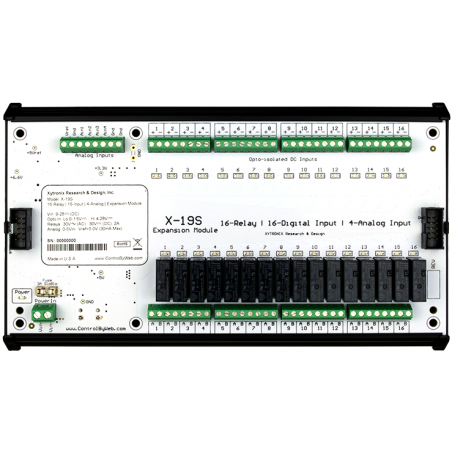

Expansion module for X-400, X-600 Controller
with Daisy Chain for several I/O modules
16 x Dry Spst Form c relay - Signal relay
Relays can be grouped in common
Activation of Relays Can switch individual
16 x digital input - optoisolated, 4 - 28VDC
4 x analog inputs - 12bit, 0 - 5VDC, common gnd
LED Indication - Relay and DI status
Supply voltage: 9 - 28VDC ( Preferably 24VDC)
Dim: 219 x 126 x 50 mm
Weight: 342g
DIN mount

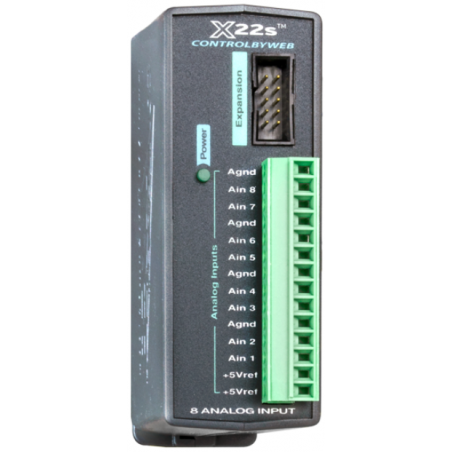

Expansion module for the X-400 / X-600 Controller series
8 x precise analogue inputs
Voltage Input: ±1.28V, ±2.56V, ±5.12V, ±10.24V
Current input, 4 - 20mA
Removable terminal plug
Driven via expansion bus - no power supply
High input impedance
Great for monitoring applications including:
Temperature
Electric current
Pressure
Fluid levels
With DIN bracket
