Web-enabled Volt / 4-20mA output module over LAN and Internet. 5 x analog +/- 10V, 4-20mA 16bit - Individual scaling, 9 - 28VDC

Network-based analog output Module
5 x Separate analogue output channels
Output signals: 0-5V, 0-10V, ± 5V, ± 10V, 4-20MA
The output signals are software configured
output signals are independently programmable and scalable
built in isolated DC-DC Supply
Voltage supply: 9 - 28VDC / 5WATT
No special software or device drivers Required
Password Protected Web setup and control pages
Static or DHCP IP address
XML and Modbus / TCP
can be updated on site
removable terminal connector

X-317-I
5,889.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

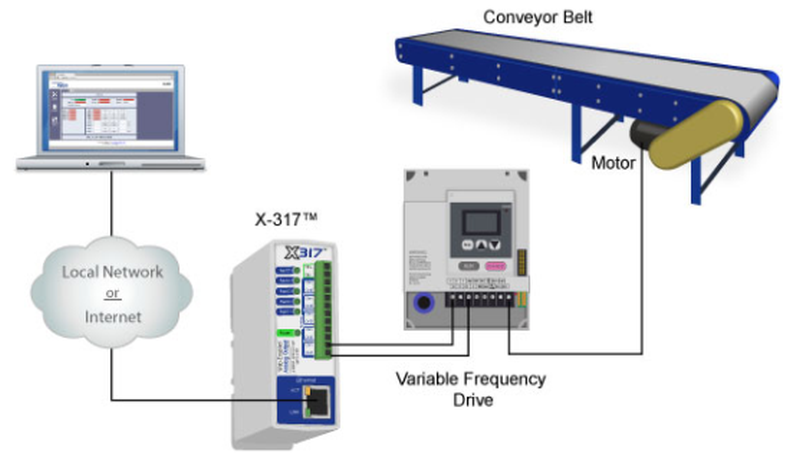

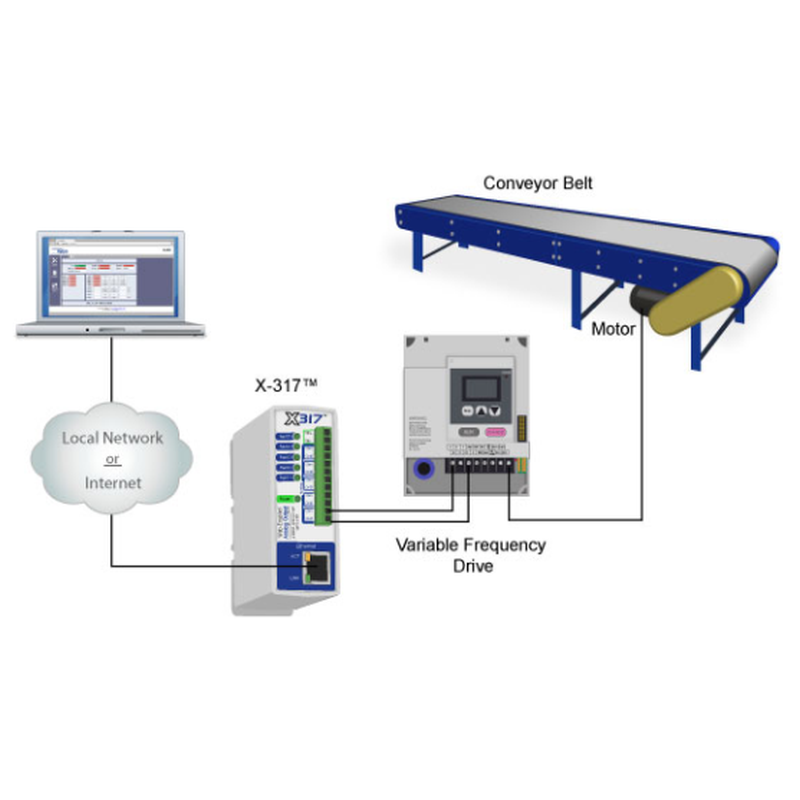

X-317-I ™ is a web-based analog output module with 5 x output channels. The analog outputs correspond to a programmable logical controller (PLC). In contrast to a PLC, the X-317 I is designed for web-based applications. No add-on software or hardware is required. X-317 I can be configured, programmed and tested in full using its built-in web server. The web setup pages are intuitive and easy to use and do not require special programming skills.

X-317-I can be used as a stand-alone unit as well as act as a peripherals for other devices such as a programmable logical controller X-600M- I.

X-317-I have 5 pcs. Precision 16-bit digital for analog converters (DACs). Each channel can be programmed to 0-5V, 0-10V, ± 5V, ± 10V, 4-20MA areas. The voltage and power outputs for each channel are on a single screw terminal block. Most industrial analog applications require insulation between the power supply and analog outputs. The X-317-I has a built-in DC-DC converter to provide isolated power to the outputs. No external isolated backplane is required.

The built-in web setup pages allow you to configure the name and settings for each channel. You can configure the range of an option to be in technical units. For example, an input value of 0 to 100% is scaled and treated to an output range of 4-20mA to control a damper motor etc.
