Logic Controller with Data Logger. 1 x RJ45 Ethernet, 1 x RS232, 1 x RS485. Supports XV plug-in I/O board, 12 - 48VDC

The logger / controller with socket for internal I / O expansion bus (eg. Relay module)
is programmed with simple logic functions
IF-THEN-ELSE, AND and OR simplifies the setup
supports SNMP, SMTP , FTP, Modbus RTU and DCON
Ethernet 10/100 / 1000Mbit
setup via the integrated Web server
1 x RS232 ports
1 x RS485 ports
Supply voltage: 12 - 48VDC

L-CON-LOG
5,315.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

L-CON-log is a data logger it supports M485-XXX I / O modules as well as ETHIOXXX the modules and can control / read up to 16 pcs.

With L-CON-LOG-TH, the temperature / moisture is measured and who may also be up to 16 pieces. connected. It can be set to overwrite the oldest files first if the card is getting full data from the card can either be copied by taking the card or the device is connect the Internet to send it as an attachment in an e-mail or to an FTP server embedded web server for setting up the device with the logical functions "AND", "OR" IF THEN ELSE "it can be used for control. Supports MODBUS / RTU modules via RS485 and MODBUS / TCP via the network connection

Data
Leveres med et 4GB microSD kort
Forsyning
10 - 30 VDC, 2 W
Netværk
10/100Mbit RJ45 stik
Porte
COM1: RS232, COM2: RS485
Stik
COM1 og COM2 Skrueterminal
Udvidelser
Intern I/O udvidelsesbus til 1 stk. udvidelsesmodul

4 other products in the same category:

4 differentielle eller 8...

4 differentielle eller 8 single-ended analog indgange Udvidelsesmoduler til L-CON-LOG serien

Insert module for L-Con log series
4 x differential analog inputs 4 - 20mA
or 8 single-ended analog inputs 4 - 20mA
Resolution: 12bit
Sample Rate: 4khz
2 x Analog Output 4 - 20mA
Resolution: 12bit
3 x Digital Input (DRY) - Contact to GND
3 x Digital Outout (Open Collector) + 40VDC / 200mA per port
Dim: 82 x 66 x 13 mm
with screw terminal block

Price 1,450.00 DKK
Product code: L-CON-LOG-AD16C
Physically in stock
Quick view
Temperature and moisture...

Temperature and moisture meter for L-CON-LOG series. RS485 bus. -20 - + 60 ° C, 0 to 100% RH, IP66, 10 - 30VDC

Measures: -20 ~ + 60 ° C and 0 ~ 100% RH
Accuracy: ± 0.4 ° C; ± 3.0% RH
LCD display shows the temperature, humidity, dewpoint and
module ID
10 ~ 30 VDC power input
IP66 Waterproof
Data Logger
Memory for temperature and 4,088 humidity records
RS-485 communication interface
DCON or Modbus RTU

Price 1,194.00 DKK
Product code: L-CON-LOG-TH
Physically in stock
Quick view

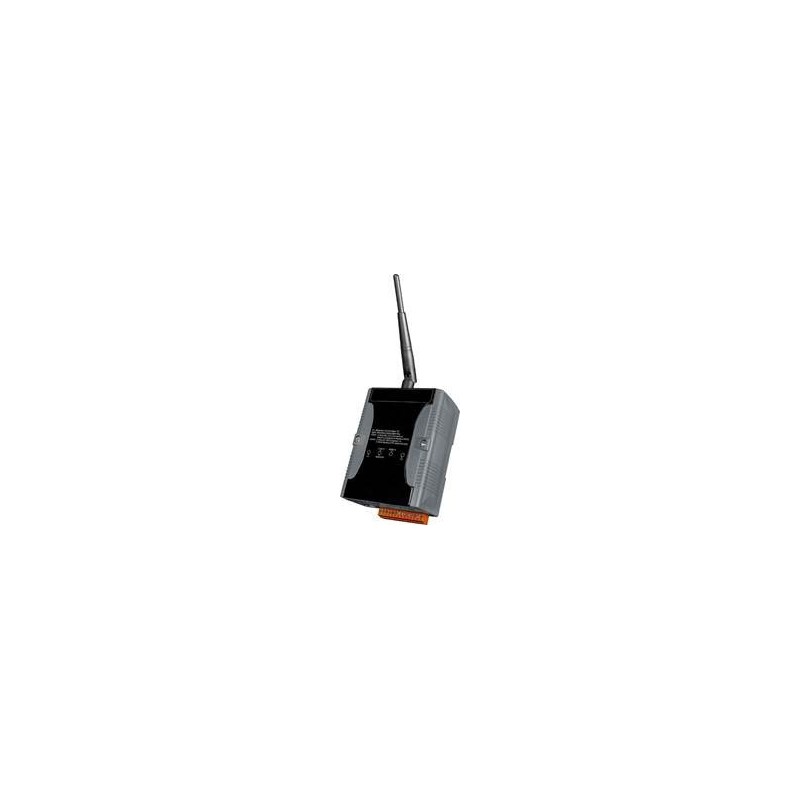

Logic Controller with GSM...
