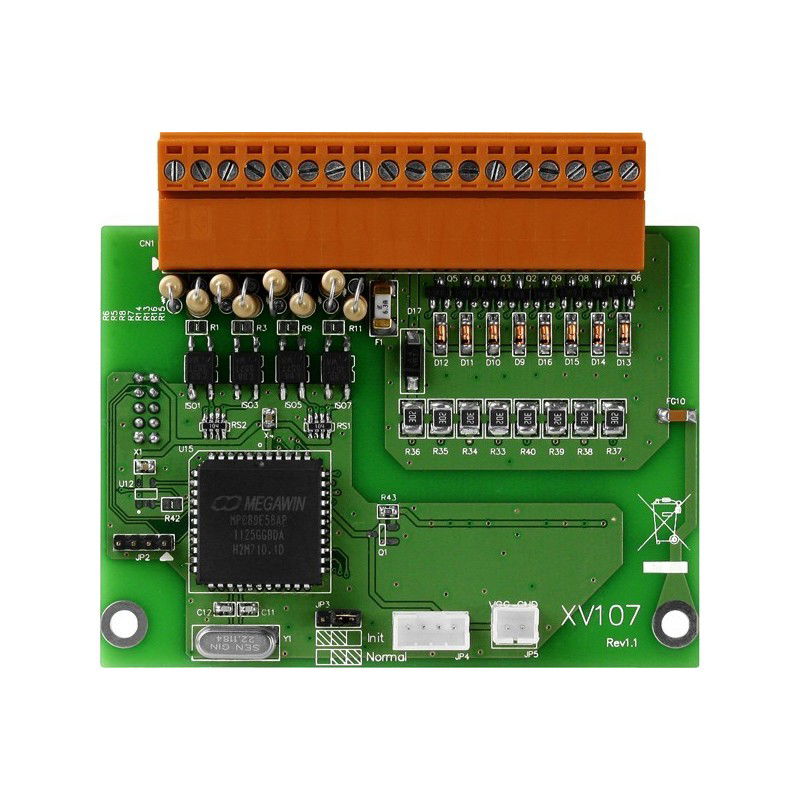

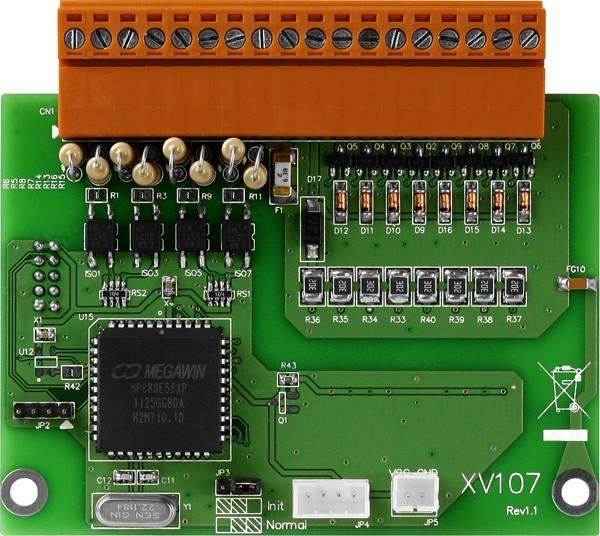

Expansion module for L-CON-LOG-x series. 8 digital inputs, Wet, 0 - + 50VDC, 8 x Digital outputs (OC) + 50VDC 700mA

The integration module with screw terminal
8 x digital inputs 0 - + 50VDC
All inputs with 32 bit counter (50 Hz)
8 x digital outputs, the Open Collector + 50VDC 700mA / channel

$138.79
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number L-CON-LOG-D8I+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Indgang 8 stk. logisk 0: maks. 1 volt og logisk 1: +3.5 ~ +50 VDC
Udgange 8 stk. open collector udgange maks. 700mA/50V

The board provides eight channels of digital input and 8 channels for digital output, each having photo coupling insulation. It supports sink output with short circuit protection, while the entrance is the source type. All input channels can be used with 32-bit counters. There are options for configuring the initial output values. 4kV ESD protection and 3750 VDC isolation within the module are also supplied.
