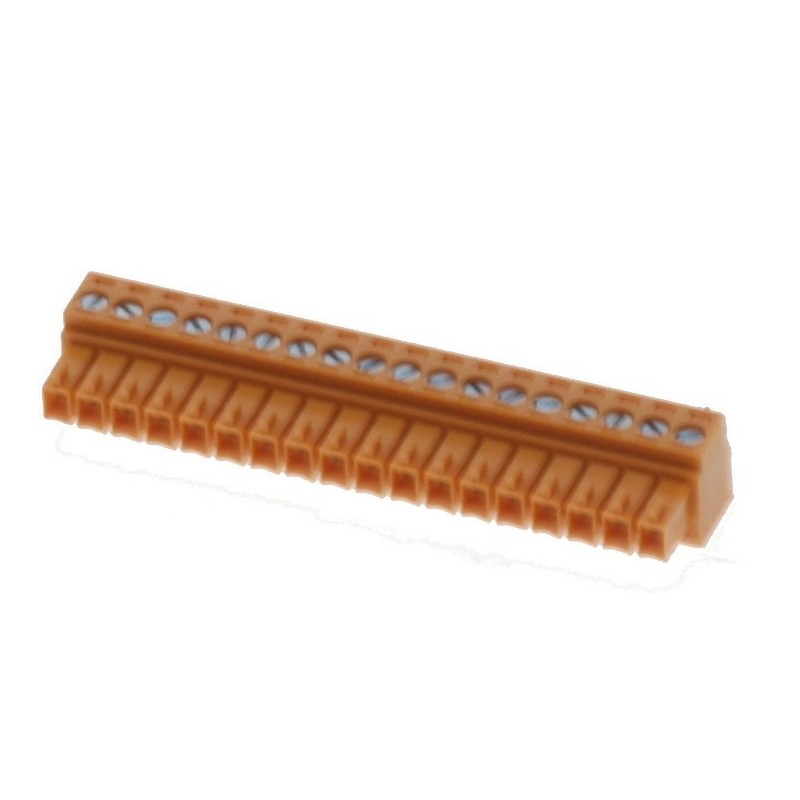

Screw terminal for eg. L-CON-LOG-AD16C / L-CON-LOG+ series

Insert module for L-Con log series
4 x differential analog inputs 4 - 20mA
or 8 single-ended analog inputs 4 - 20mA
Resolution: 12bit
Sample Rate: 4khz
2 x Analog Output 4 - 20mA
Resolution: 12bit
3 x Digital Input (DRY) - Contact to GND
3 x Digital Outout (Open Collector) + 40VDC / 200mA per port
Dim: 82 x 66 x 13 mm
with screw terminal block

The integration module with screw terminal
8 x digital inputs 0 - + 50VDC
All inputs with 32 bit counter (50 Hz)
8 x digital outputs, the Open Collector + 50VDC 700mA / channel

8 digitale ind- og udgange Udvidelsesmoduler til L-CON-LOG serien

Multifunction concealed board
with 4 x AI, AO x 2, 4 x DI, 4 XDO
individual channel configuration
Jumper selectable voltage- or current input
Broken kabeldetektion by current measurement
Configurable settings for the initial value
digital input channels can be used as 32-bit counters
120 VDC surge protection to the analog input
60 VDC surge protection for digital input
Overload protection for digital output
Short circuit protection for digital output
