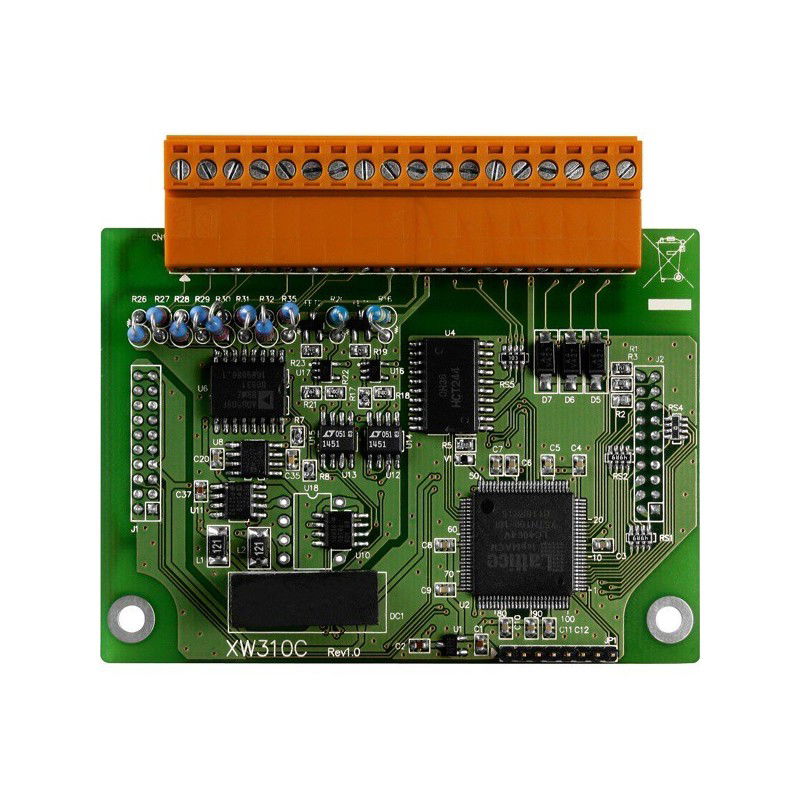

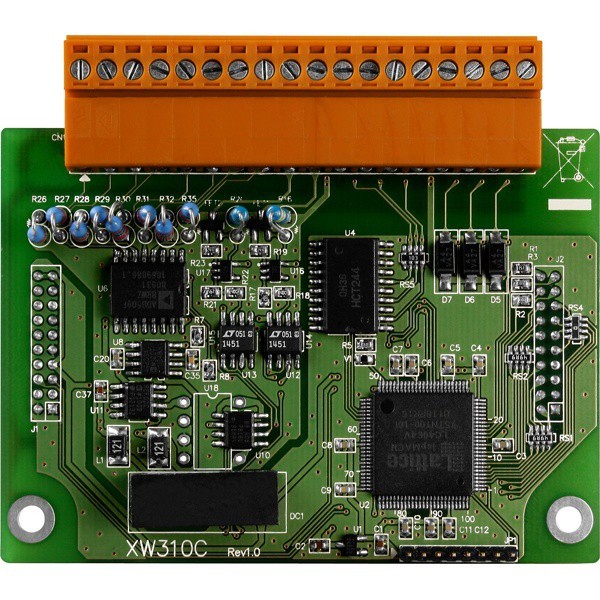

Insert module for L-Con log series
4 x differential analog inputs 4 - 20mA
or 8 single-ended analog inputs 4 - 20mA
Resolution: 12bit
Sample Rate: 4khz
2 x Analog Output 4 - 20mA
Resolution: 12bit
3 x Digital Input (DRY) - Contact to GND
3 x Digital Outout (Open Collector) + 40VDC / 200mA per port
Dim: 82 x 66 x 13 mm
with screw terminal block
Add-on Board series is for the L-Con log series. 4-channel differential / 8-channel single-ended analog input, 2-channel analog output, 3-channel digital output and 3-channel digital input.
18 Pin male Connector
The integration module with screw terminal
8 x digital inputs 0 - + 50VDC
All inputs with 32 bit counter (50 Hz)
8 x digital outputs, the Open Collector + 50VDC 700mA / channel
8 digitale ind- og udgange Udvidelsesmoduler til L-CON-LOG serien
Built-in module with screw terminals
5 x digital inputs, Wet Sink / source. 0 - + 50VDC
All inputs are with 32bit counter
2 x relay outputs 30VDC / 2A to 4 x 35 VDC relay outputs 6A, 6A
Relays 250VAC is non-inductive load
Measures: -20 ~ + 60 ° C and 0 ~ 100% RH
Accuracy: ± 0.4 ° C; ± 3.0% RH
LCD display shows the temperature, humidity, dewpoint and
module ID
10 ~ 30 VDC power input
IP66 Waterproof
Data Logger
Memory for temperature and 4,088 humidity records
RS-485 communication interface
DCON or Modbus RTU
