Here you will find our selection of PoE switches. We offer various models with multiple ports ranging from between 4 to 24 ports. See also our switch with 2 Gigabit SFP fiber. Besides the normal PoE standard, we also offer PoE + switches. See them further down.
Power over Ethernet (POE) is a network feature that lets network cabling electrical power over an existing data connection with a single Cat 5e / Cat 6 Ethernet cable. Power over Ethernet (PoE) allows installation of remote equipment or external devices without needing to connect to AC power. This makes it possible to supply power to more areas without having to install additional electrical infrastructure or having sockets on each endpoint. Equipment can be installed without the need for an electrician, and because ethernet cable costs less and often already installed in buildings that are PoE-based systems far more cost effective. PoE maximum transmit signals up to 100 meters.

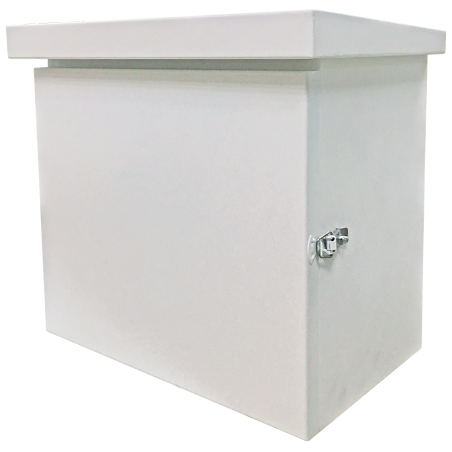

Compact design
Output 54VDC vlotage for PoE device use
Space for PoE switch / PoE Surge protector installation
IP66 rated
Include Thermal Switch control heater and blower
Include fiber panel for fiber cable connection
Battery protection for deep discharge and short circuit
Space for 12V/7Ah Battery x 4PCS
Top Grade Managed Poe++ switch - for large scale network
Managed switch, 24 x RJ45 with PoE++ (95W) on all ports simultaneously.
PoE power budget of 2280Watt. No compromise
Double plug-in power supplies
24 x RJ45 10/100 / 1000Mbit with PoE++
PoE extended to 200meter
2 x 10GBase-T slot for 10Gbit / 1 Gbit SFP Module Single Mode or Multimode
2 x 10GBase-SR / LR SFP + slots (combo with 2 x SFP / RJ45)
Layer 3 managed switch - Professional Grade
multi cast support
ERPS to Ring IP monitoring - recovery time less than 10ms
DHCP relay / DHCP Server
Supports Cisco ether-channel (static trunk)
Dimensions: 440 x 300 x 44 mm (1U)
Weight: 5,5kg
Operating temperature: 0 - +50°C
Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams
Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac
Managed Industrial switch. 24 x RJ45, 4 x SFP
24 Port ethernet switch with PoE+ (36Watt)
Total PoE power is 740 Watt
24 x RJ45 10/100/1000Mbit
POE standard: IEEE 802.3af/802.3at/802.3bt
4 x SFP 10Gbit / 1Gbit, 10GBASE-SR/SL SFP+ interfaces (Port-25 to Port-28)
128Gbps (non-blocking)
Auto generation of port configuration
MVR (Multicast VLAN Registration)
IGMP snooping
Dimensions: 440 x 300 x 56 mm (1.25U)
Weight: 5.4 kg
Supply voltage, 100 - 240 VAC
Managed PoE Switch with 8 RJ45 and 4 SFP slot
8 x 10/100 / 1000Mbit with PoE ++ (95Watt)
PoE power budget is 360Watt (45Watt per port)
PoE utvidga mode - max. 160 - 200meter
2 x 100 / 1000Mbit SFP slot - for Single- and Multimode SFP module
2 x 10Gbit SFP slot
2 x Digital input
2 x Digital outputs (Open Collector)
IGMP Snooping Seite 128 VLAN interfaces
IEEE 1588v2 Precision Time Protocol (time syncronising)
Operating temperature: -40 - + 75 ° C
Dimensions: 152 x 108 x 77 mm
Weight: 1, 2kg
Supply voltage: 48 - 56VDC (recommended min. 52VDC) 8amp
8 x 10/100 / 1000BASE-T RJ45 Auto-MDI / MDIX Ports
2 x 1000BASE-SX / LX / BX SFP Interface
8 POE Injector Ports with 802.3ay / of
PoE Standard 802.3at
60GB non-blocking
32Mbits Data buffer
IEEE 802.3X pause frame for duplex
IP30 aluminum
Din rail kit and wall mounting
Alarm relay 1A, 24V DC
2 x Digital output (DI)
2 x Digital output (DO) 24v DC, 100mA max
Dimensions: 72 x 107 x 152mm
Weight: 1684g & nbsp;
Supply: 48-56 V DC
16 x 10/100/1000Mbit RJ45
16 porte med PoE Ultra (75W per port)
4 100/1000BASE-X mini-GBIC/SFP slot
2 10Gbit SFP+ slot
RJ45 console interface til management og opsætning
PoE maks. er 400Watt, end-span og mid-span.
PoE power feeding op til 100 meter
Total PoE management
IGMP Snooping
MLD Snooping
Maks. 8 VLAN interface
Managed Industrial switch. 24 x RJ45, 4 x SFP
24 x 10/100/1000Mbit RJ45 ports PoE++
IEEE 802.3at/af/bt - Ultra PoE (90Watt) end/mid-span
Total PoE power is 775W
4 x 100/1000/2500Mbit mini-GBIC / SFP slots, Combo with 4 Gbit RJ45 SFP
10GB SFP
VLAN - IEEE 802.1Q tagged VLAN
VLAN (Q-in-Q) - IEEE 802.1ad
Protocol VLAN, Voice VLAN, Private VLAN, Management VLAN, GVRP
IGMP snooping v2 and v3
MLD snooping v1, v2
Port security for source MAC address filtering
DHCP snooping to filter unwanted DHCP messages
Dimensions: 440 x 300 x 44 mm (1U)
Weight: 4.4 kg
Supply voltage: 100 - 240VAC
The 16-port 10/100Mbit + 2 Gigabit RJ45
2 x 1000BASE-X mini-GBIC SFP combo interface.
PoE + is 32 Watt
Max. PoE power is 300 watts
IEEE 802.3af / at End-span.
Each port provides 54VDC to PoE equipment.
Auto deteketere PoE equipment.
Provides PoE power to the max. 100meters.
extended mode without PoE, the distance up to 250meter.
Equipped with smart LCD.
Dimensions: 440 x 233 x 44 mm (1U)
Operating temperature: -10 - + 60 ° C
Supply voltage: 100 - 240VAC, 5A
Managed Industry switch to harsh environment
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module
8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2 port SFP 100/1000/2500Mbps
Supply voltage: 12 - 48VDC / 7A
PoE power budget: 60W at 12V, 120W at 24V, 240W at 48V
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
Modbus TCP real time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm

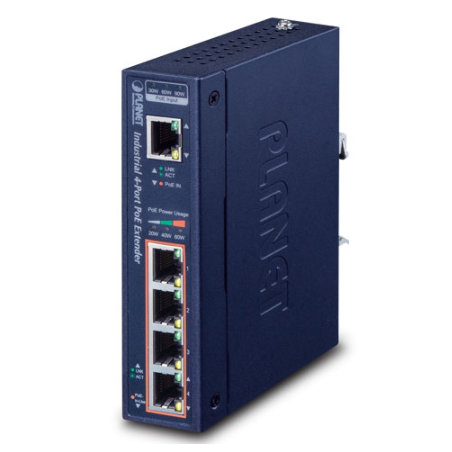

4 port PoE pass through - 10/100/1000Mbit
1 x RJ45 PoE in (data + PoE++) - 95 Watt
Mid-span and End-span
4 x RJ45 PoE out (data + PoE+) - 30 Watt
PoE out pin: +1/2, -3/6
PoE output power, total is max. 75 Watt
PoE input voltage 50 - 57VDC
Temperature: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
Your bracket
Extended Operating Temperature -40° ~ 80°C

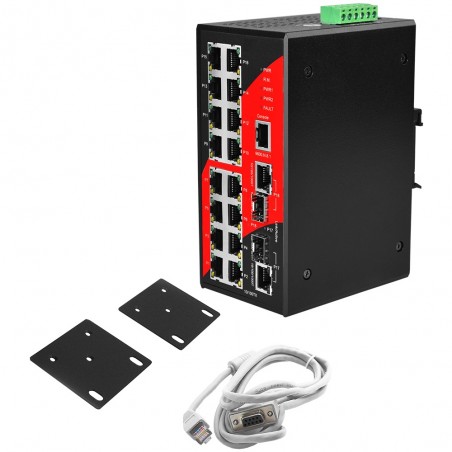

16-Port 10/100TX + 2-Port 10/100/1000T/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Supports Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP with Query Mode for Multi-Media Applications
Port Mirroring for Traffic Monitoring
IP Address Security Management to Prevent Unauthorized Access
UL Class I, Division 2 Certified
IP30 Rugged Aluminum Case Design
DIN-Rail or Panel Mountable
Industrial 4 Port Gigabit Ethernet PoE Switch
4 x Copper Ports - 10/100 / 1000Mbit RJ45
Managed Switch
IP30 Cabinet
DIN Rail and Wall Mounting
Supply: 45-57VDC
Operating Temp. -20- 70 ° C

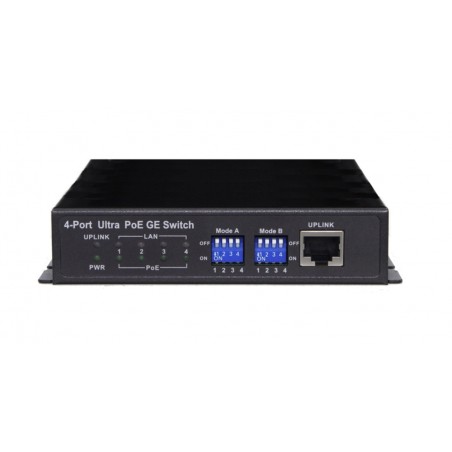

4 x RJ45 port with PoE ++ (Ultra PoE)
1 x RJ 45 Uplink port (not PoE).
60W for every PoE-Port
Power Budget is 120 watts
IEEE 802.3at / by PoE.
Dip on / off PoE
Power supply: 100 - 240VAC
Operating temperature: 0 - +40°C
Size: 119 x 88 x 27 mm
Weight: 1.3 kg

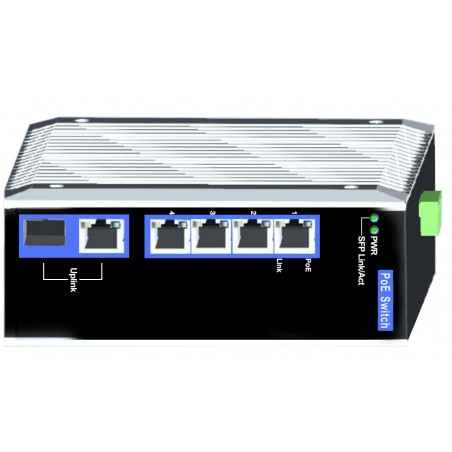

5 Ports & nbsp; Switch with 4 PoE ports
4 x PoE RJ45
1 x Uplink RJ45
1 x SFP
Ethernet standard: IEEE802.3, IEEE 802.3u, IEEE802.3af / at
Power Supply: DC48V - 52V
PoE++: 60W for each PoE port
PoE power budget is 120W
Unmanaged switch
IEEE 802.3at / of PoE compliant
Current protection: OVP, OCP, SCP
Compact design with wall-mounted capability
UL / CB certified external power supply
Power supply: 56VDC 2.1A
Per port PoE (Mode A, Mode B) On-Off Control by DIP Switch
Dimensions: 119 x 88 x 27 mm
Temperature: 0 - +40°C

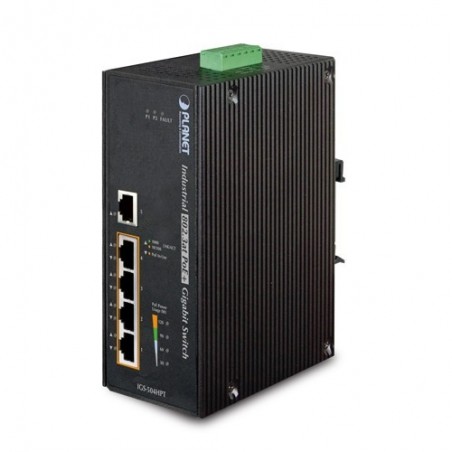

5 x 10/100 / 1000Mbit RJ-45 with 4 ports with PoE +
PoE + is 30.8 Watt. PoE max 134 watts, end-span
Auto detects PoE equipment and protects against damage by non-PoE equipment
PoE up to 100 meters
Layer 2 switch with auto-negotiation
IP30 aluminum metal cabinet, DIN Fittings
DIN Rail and Wall Mount
48V DC Redundant Power Input
EFT Protection Up to 6kV for Power Line
6kV Protection on Ethernet Port
-40 to + 75 ° C & nbsp;

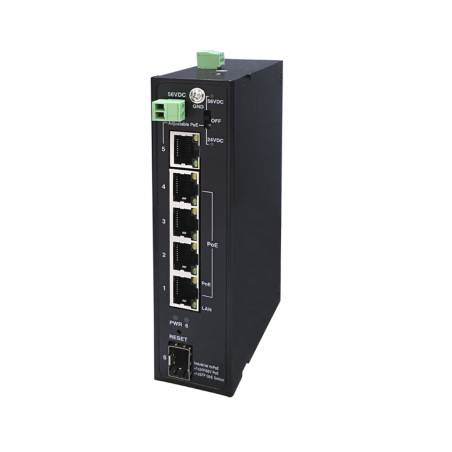

4x 30W 56VDC IEEE802.3at PoE port
1x 56/24VDC PoE port
1x SFP Port
2x 48-56VDC Indgang
Driftstemperatur -40°C - 75°C
10/100/1000Mbps Data Rates
Total Power Budget 120W
Unmanaged Switch

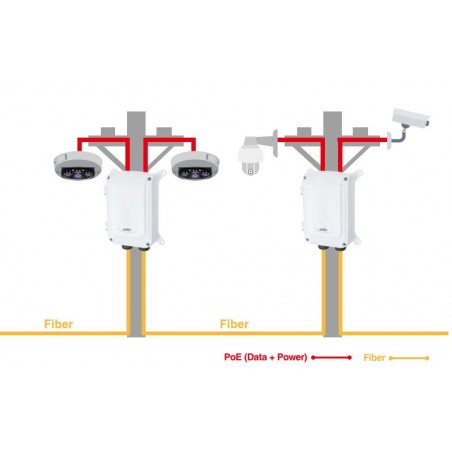

2 x RJ45 port 10/100/1000Mbit
2 x 100/1000X SFP-port
Samlet PoE effektbudget: 120W
2x60W PoE ELLER 1x90W PoE+1x30W
PoE standart: IEEE 802.3bt
IP67, IK10
Driftstemperatur: -40°C ~ 65°C
Option: PoH 100W / Managed
