Seamlessly integrate your NGFF M.2 card with your motherboard using the NGFF M.2 Key to Mini PCI-E PCI Express Converter Adapter. It offers high-speed transmission and easy plug-and-play installation.

Plug & Play
Support 12V External power
2.5Gbps speed
PCI bus speed up to 66/33 MHZ

Expands two IEEE1284 parallel ports on the system.
Designed to meet PCI Express Base Specification Revision 1.1.
Full single lane (or x1) PCI Express passthrough.
Supports IEEE 1284-1994 parallel port standard
Automatic switching between ECP/EPP/SPP/BPP modes without configuration.
Plug-n-Play, I/O address and IRQ assigned by the system.

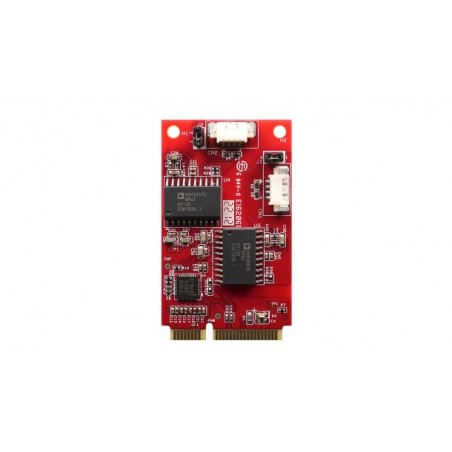

Compatible with PCI Express 1.1

CAN bus 2.0B backwards compatible with 2.0A

Supports Linux SocketCAN

Operating temperature (-40°C to +85°C)

Compliant with PCI Express 1.1

CAN bus 2.0B backward compatible with 2.0A

Support Linux SocketCAN

Operating Temperature (-40°C to +85°C)

Rises short to   EPC-GEN89-PCIE
2 x PCI slot

USB 3.1 Gen 1 / USB 3.2 Gen 1x1 - 5Gbit/s
1 x USB-C female
1 x USB-A female (2,4A)
1 x 19-pin Front USB 3.0
interface: PCI-E x1
high and low back plate
Power supply via 19-pin SATA connector
OS support: WinXP / Vista / Win7 / Win8 (32/64-bit) / Mac 10.8

USB 3.2 Gen 2x2 USB Type-C 20 Gigabit/s.
PCI-e 3.0 X4 bus (Supports X4/8/16 slot).
Power supply: Internal 15-pin SATA.
OS Support: Windows 8/10, Linux
Include Low-Profile and Standard PCI backplane.

 PCI Express 1.0 compliant
 921.6 kbps maximum baudrate for fast data transmission
 128-byte FIFO and on-chip H/W, S/W flow control
 Variety of connection cables and boxes available for RS-232/422/485
 Low-profile form factor fits small-sized PCs
 Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
 Easy maintenance with built-in LEDs and management software

RS-232 :TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 : Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND

Support's a 32-bit PCI bus 12 V
32-CH isolated digital inputs
32-CH isolated digital outputs
2500 VRMS isolation Optical
Sink current up to 500mA on each isolated output

Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD

Cipset: WCH384L
maximum rate: 1.5 Mbps to 4 x RS-232 serial expansion
FIFO: 256-bytes (for each port)
data rate: 115kbps (for each port)
OS support: Windows 98SE / ME / NT 4. 0 / Server 2000
XP / Vista / Server 2003 / Win 7 / Win 8 / Win 10, DOS, Linux

Intel 82576EB
PCI Express v2.0 (2.5GT / s), X 4, or x8 operable in x16 slots
RJ45 (copper)
10/100/1000 Mbps
IMPI pass-through , PXE remote boot, VLAN filtering
OS support: Win 7 / Win 8 / Win 8.1 / Win 10 3264Bit
3.6W
Operating Temperature: 0 ~ 55 ℃

Chipset: Intel®I350AM4
PCI Express * 2.1 (5GT / s), operable in x4 slots or greater to 4 x RJ45, Cat 5e or more
10/100/1000 Mbps
VLAN filtering, PXE remote boot, IPMI pass-through
Os Support: Win 7 / Win 8 / Win 8.1 / Win 10 32/64Bit, Spain DOS, Linux, FreeBSD, Novell UnixWare / OpenUnix 8
Operating temperature: 0 ~ 55 ℃

Expands 2 RS-422/485 serial ports with communication speeds up to 921.6Kbps.
2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3.
1.5KV isolated protection for all signal and power.
With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
Designed to meet PCI Express Base Specification Revision 2.0.
RS-422 and RS-485 auto detect and switching technology – jumper and software free.
AHDC/CS™ technology for collision free communication.
On-chip hardware auto flow control to guarantee no data loss.
Ultra low power consumption design for Green Environment.
15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS OS.
XP / Vista / 7 / 8.x / 10 (X86/X64) / 11, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009

2 port RS485 / RS422 smart, normal and low profile PCI Express x1 serial card.
PCI Express x 1 compliant
921.6 Kbps maximum baud rate for super fast data transfer
128-byte FIFO and on-chip H/W, S/W power management
Low form factor suits small PCs
Drivers are provided for Windows XP / Vista / 7/8/10 (32/64 bit), Linux 2.6.x / 3.x
15 KV ESD protection

VGA card with PCI Express 1.1

1 x PCIe

1 x 15 pin VGA RGB (s-sub)

16MB DDR RAM

Resolution: 1920 x 1080, Full HD, max 2D < br> Power Consumption: 2W

XP/Vista/7/8/8.1/10 (X86/X64), Windows Server 2003/2008 (X86/X64), Linux 2.x/3.x, DOS

PCI grafikkort
Low profile
Bagplader: 1 X lang og 2 korte
Interface: DVI-I (dobbelt link), HDMI, VGA
Opløsning: DVI: 2560 x 1600 / HDMI: 1900 x 1200 / VGA: 2048 x 1536
512 MB, DDR2 SDRAM, 666 MHz, 64-bit
ATI Radeon HD 5450

Moxa 4 port RS232 PCIe Serial Board CP-104EL-A-DB9M
Serial adapter, PCIe low profile, RS232 x 4
Insert card with 4 x DB9 han
Bus: PCI Express x1
