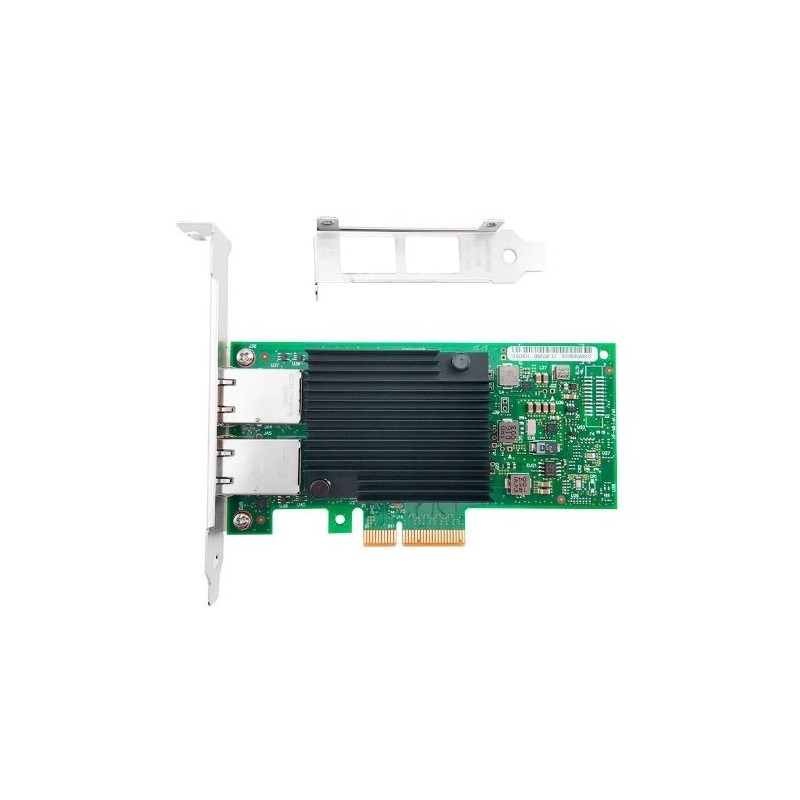

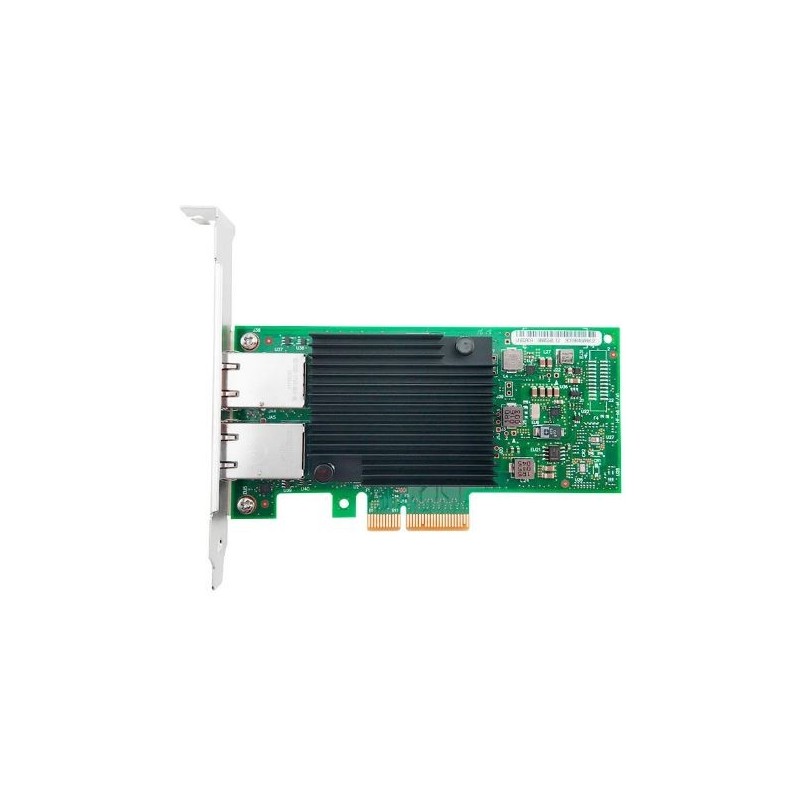

X550-T2 Intel X550AT2 Chipset 10Gb/5Gb/2.5Gb/1Gb Ethernet Adapter, PCI-E 3.0 x4 2-Port RJ45 Connector NIC

Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD

ETH-PCIE-2X10GBIT
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
Standard CAT 6a cabling with RJ45 connectors
Compatibility with backward with existing 1000BASE-T network simplifies the transition to 10GbE
flexible I / O virtualization to port partitioning and quality of service (QoS) of up to 64 virtual ports
Unified Networking Delivery LAN, iSCSI and FCoE in a CNA for low cost
Industry first Dual-Port 10GBASE-T adapter with one- chip solution with integrated MAC + PHY
Reliable and proven 10 Gigabit Ethernet technology from Intel Corporation
Box:

1 x X540-T2 10GbE PCIe Network card
1 x User's Manual
1 x CD Driver
1 x Low profile bracket

Chipset
Intel® Ethernet Controller X540
Data
100 Mbps / 1 Gbps / 10 Gbps
Indgang
RJ45 Copper
Kabel
10GBASE-T： • 100 m on Cat 6A • 55 m on Cat 6 1000BASE-T： 100 m on Cat 5e, Cat 6 or Cat 6A 100BASE-T： 100 m on Cat 5e, Cat 6 or Cat 6A
OS SUPPORT
Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2 FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
Protokol
IEEE 802.3ad (link aggregation controlprotocol), IEEE 802.3 2005 flow control IEEE 802.1Q VLANs, IEEE 802.1p
Protokol
control protocol (TCP), User Datagram Protocol (UDP), Internet Protocol (IP))
RAID niveau
PCI Express *2.1 (5.0 GT/s) X8 Lane operable in x8 and x16 slots
