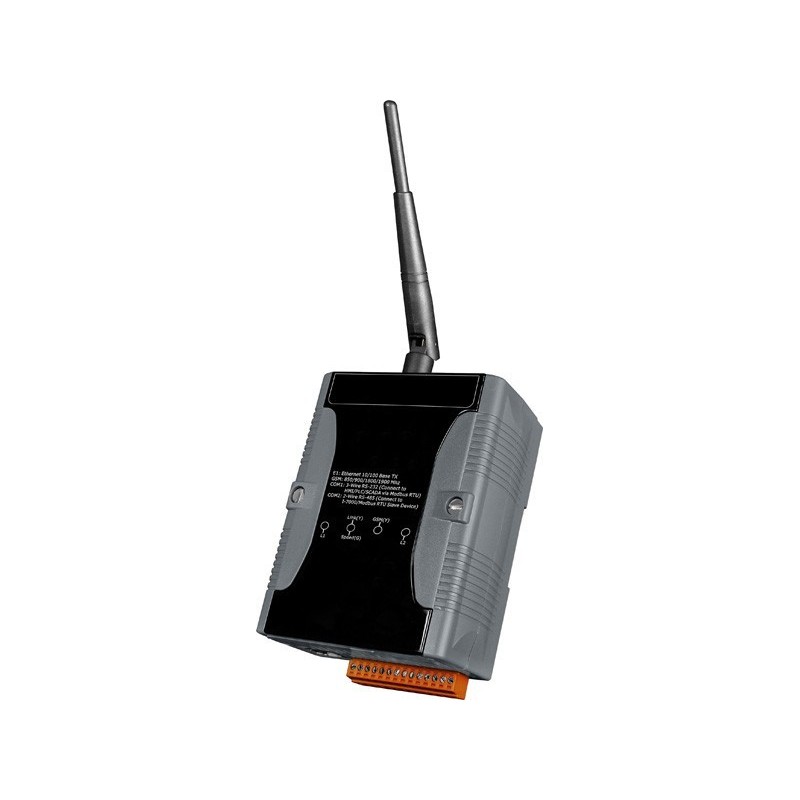

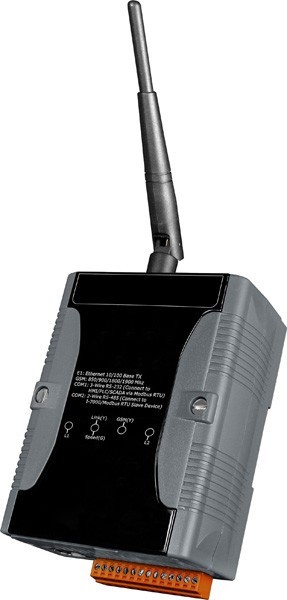

Logic Controller with GSM module. Data Logger, 1 x RJ45 Ethernet, 1 x RS232, 1 x RS485. RTC. 12 - 48VDC

Built-in Web server
Logical functions with IF-THEN-ELSE setting
IF-THEN-ELSE for simple set of conditions
No more programming. Just click and finished
Supports I / O, counter, timer, calendar, e-mail, rules
Data Logger and data files supported rewind feature
Modbus TCP / RTU protocol for SCADA software seamless integration
I/O-Board XW with inputs and outputs
Supports I-7000 Remote I / O modules (up to 16)
Supports Modbus RTU slave units (up to 10)
SNTP time synchronization supported
Support SMS (GSM: Quad-band 850/900/1800/1900 MHz)
Supply voltage: 12 - 48VDC

L-CON-LOG-GSM
5,515.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

WISE (Web Inside, Smart Engine) is a product range that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and user-friendly features minimizes the learning curve, shorten time to market and reduces the effort and costs dramatically for system development.

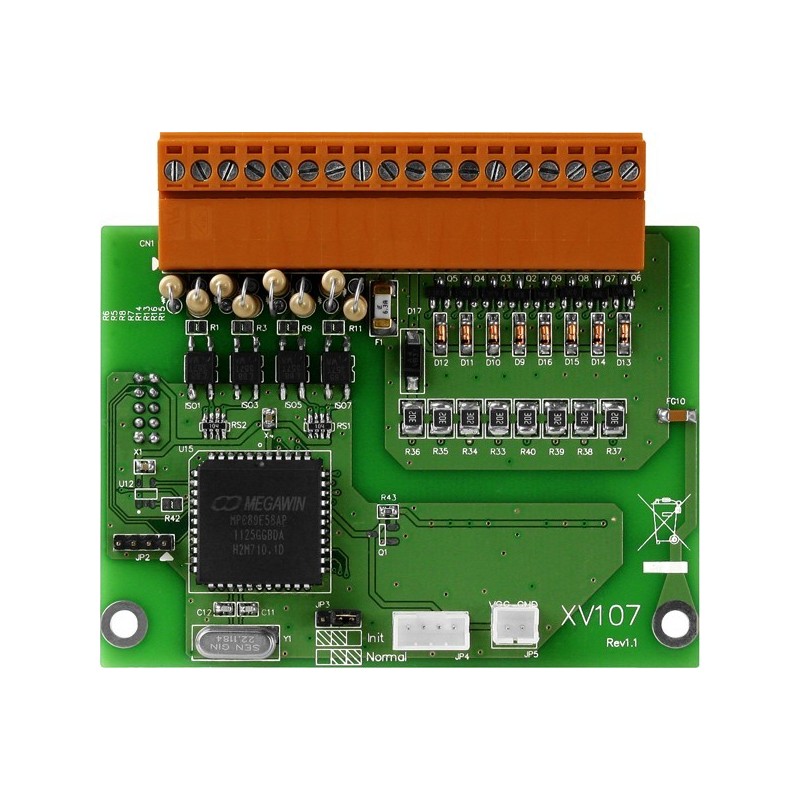

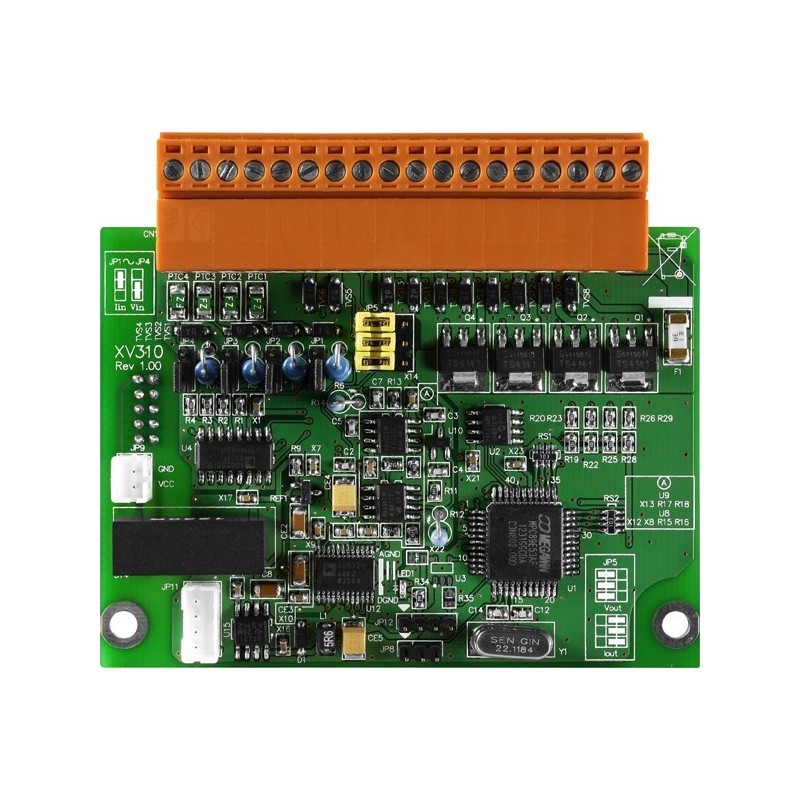

L-CON-LOG-GSM supports an I / O expansion bus to implement various I / O functions such as D / I, D / O, A / D and D / A according to the XW-Board. Additionally, it supports I-7000 / M-7000 external I / O modules and Modbus RTU slave devices. Based on different I / O modules in the I-7000 / M-7000 and compound the ability of the Modbus RTU slave devices, L-CON-LOG-GSM give the user more flexibility in the application area.

L-CON -log-GSM supports Modbus TCP / RTU protocol to make seamless integration with SCADA software available. It includes all the benefits that WISE-series controllers can provide. In addition, providing L-CON-log GSM data logger function with micro SD card, it can detect I / O-channel value at trigger event or a regular period of time. The data files can be sent back via e-mail or FTP. All settings can be implemented through the browser.

In addition to the merits, that is inherited from the existing WISE-series, provides L-CON-LOG-GSM even more sub-supports in the I / O functions. It allows you to connect to a wide range of XW-Boards, I-7000 / M-7000 Remote I / O modules and Modbus RTU slave devices that allows users to freely choose the most suitable I / O-modules. With micro SD card allows the data logger function to real time to record I / O data from the controller and the computer files via FTP or e-mail at a scheduled time to the control center for further administration management or data analysis. L-CON-LOG-GSM also has SMS-sending feature for alarm report and SMS command reception function.

L-CON-LOG-GSM requires a SIM card

Datakapacitet
Leveres med et 4GB microSD kort
Forsyning
10 - 30 VDC, 2 W
Netværk
10/100Mbit RJ45 stik
Seriel port
COM1: RS232, COM2: RS485
Stik
COM1 og COM2 Skrueterminal
Udvidelse
Intern I/O udvidelsesbus til 1 stk. udvidelsesmodul
