ControlByWeb I/O modules

Mini vertical level switch / swim switch
Assembly: Vertical
contact output: Direct load
Cable length: 30 cm
Operating temperature: -20 ° C to + 80 ° C
AC voltage Max: 130V < Br> DC voltage Max: 180V
Max current: 700mA

Expansion bus - up to 32 I/O modules or remote modules up to 100 I/O
Peer-to-Peer communication (P2P)
1-wire bus: Up to 16 sensors for temp / moisture : -55°C - +125°C
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Task Builder:
50 Scheduled Tasks
50 Conditional Tasks
20 Restart tasks
20 Override Schemes
Email Alarms by User Terms
RTC with NTP synchronization
configuration of almost all I/O
No software Required
Basic Script Support for Advanced flexibility
Data logging, graphs (logged data)
Static or DHCP IP address
Modbus, SNMP, Remote Service, IP Filtering

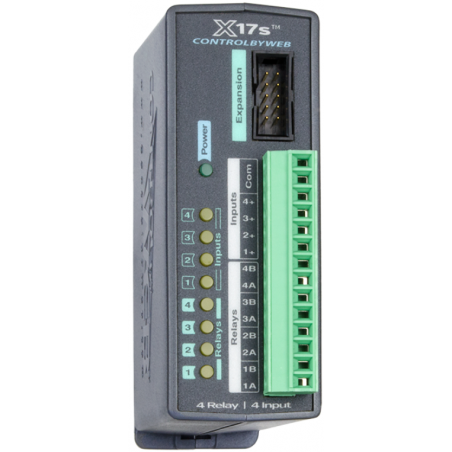

Controlbyweb I / O module with digital in and relay Out
No programming required
Full control of web browser or XML messages
is also a Modbus / TCP slave
password protected
30vdc , 240vac, 12a relay switch
on / off or pulsed relay states
optically isolated digital input
suitable for monitoring / relation management
Remove-Reloading (peer-to-peer)
Auto-restart
Selectable TCP ports
Removable terminal connector
DIN rail or wall mounting
Power supply: 9-28VDC / 0.5a

Controlbyweb I / O module with digital in and relay Out
No programming required
Full control of web browser or XML messages
is also a Modbus / TCP slave
password protected
30vdc , 240vac, 12a relay switch
on / off or pulsed relay states
optically isolated digital input
suitable for monitoring / relation management
Remove-Reloading (peer-to-peer)
Auto-restart
Selectable TCP ports
Removable terminal connector
DIN rail or wall mounting
Power supply: 9-28VDC / 0.5a

Wireless network-based digital I / O module with 1-wire port
1 x Power Relay 12amp, com No, NC
1 x Digital Input Optoisolated 0 - 26VDC
1-wire bus for 4 Temp / Moisture Sensors
Wi-Fi 802.11b/g/n
Antenna inclusive
Range up to 100 meters
Logging of input, counter value
Temperature, Moisture, relay mode and volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector

Network-based Digital I/O Module
2 x Power Relay 3 Amp, COM NO, NC
2 x Digital Input Optoisolated 0 - 26VDC
Memory for 50,000 Loggings
Logging of Input, Counter value
Relay state and Volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector
Supply voltage: 9 - 28VDC

Network-based Digital I/O Module
2 x Power Relay 3 Amp, COM NO, NC
2 x Digital Input Optoisolated 0 - 26VDC
Memory for 50,000 Loggings
Logging of Input, Counter value
Relay state and Volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector
Supply voltage: POE or 9 - 28VDC

Web based controller with I/O, 1-wire bus
4 x digital inputs (Common GND)
1-wire bus, max. 16 sensors (temp / moisture etc.)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
16 Automatic Restart
20 Over Rule Terms
E-mail Alarms by defined conditions
Supports encrypted e- Mail servers such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC

Web based controller with I/O, 1-wire bus
4 x digital inputs (Common GND)
1-wire bus, max. 16 sensors (temp / moisture etc.)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
16 Automatic Restart
20 Over Rule Terms
E-mail Alarms by defined conditions
Supports encrypted e- Mail servers such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC

4 x analog inputs with common GND
input voltage: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
Input current: 4-20mA - 200 Ohm Shunt resistance
2 X digital inputs / outputs: 0 - 5VDC
Digital I/O and Counter set up via the web server
1-wire bus for a maximum of 16 sensors
Temp/moisture/ultrasound, etc.
ermissions: Administrator, Manager , User
Tasks
50 Schedule Scheduled
50 Conditional
20 Torrect Scheduled
Email Alarms Based on Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
Basic script support for advanced flexibility
Logging and graph view
static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering

4 x analog inputs with common GND
input voltage: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
Input current: 4-20mA - 200 Ohm Shunt resistance
2 X digital inputs / outputs: 0 - 5VDC
Digital I/O and Counter set up via the web server
1-wire bus for a maximum of 16 sensors
Temp/moisture/ultrasound, etc.
ermissions: Administrator, Manager , User
Tasks
50 Schedule Scheduled
50 Conditional
20 Torrect Scheduled
Email Alarms Based on Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
Basic script support for advanced flexibility
Logging and graph view
static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering

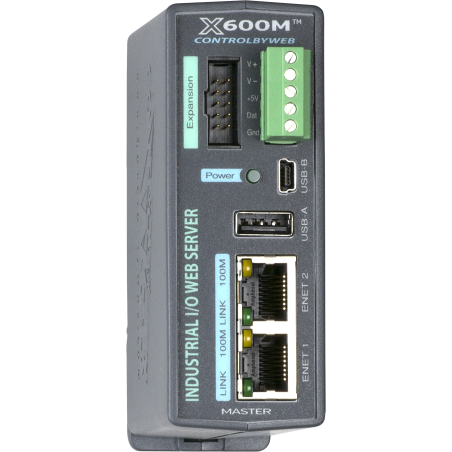

Network-based I/O module control
For all ControlByWeb modules
Powerful built-in web server
Logging and automatic drawing of log files
Built-in Ethernet switch with two Ethernet connections
Expansion bus - Direct connection with up to 64 modules *
Supports USB WiFi adapters/USB flash
For 1-wire bus for temp/humidity sensors
Custom email alerts
Logical scripts or programs with Lua
Advanced planning in full calendar
Protocols: HTTP, HTTPS, SSL, SMTP, Modbus/TCP
Remote Services ™ server and client etc
Email alerts based on user defined conditions
Static or DHCP IP address configuration
XML, Modbus/TCP and SNMP interface options

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC

Network-based analog output Module
5 x Separate analogue output channels
Output signals: 0-5V, 0-10V, ± 5V, ± 10V, 4-20MA
The output signals are software configured
output signals are independently programmable and scalable
built in isolated DC-DC Supply
Voltage supply: 9 - 28VDC / 5WATT
No special software or device drivers Required
Password Protected Web setup and control pages
Static or DHCP IP address
XML and Modbus / TCP
can be updated on site
removable terminal connector

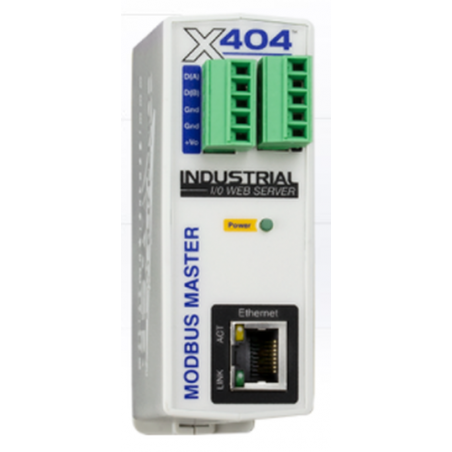

Modbus Master Controller for max. 32 Modbus RTU devices
1-wire bus for a maximum of 16 sensors (temp / moisture etc.)
Tasks:
50 schedule planned, 50 conditional
20 Terrul Terms
Email Alarms by defined conditions
Supports encrypted email servers, such as Gmail
RTC with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Robust cabinet for DIN rail / wall
Supply voltage: 9 - 28VDC

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: 9 - 28VDC, 134MA

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: POE or 9 - 28VDC, 134mA

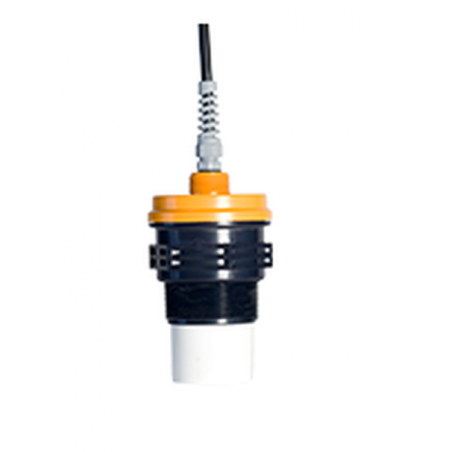

Liquid depth measurement with RS485 interface
measuring depth: 0 - 12 meters
Operating temperature: -30 - + 140 ° C
House: PC / PBT, Cream transducer
Supply voltage: 8 - 24VDC < Br> Objective: Tip Ø 5cm
setup with RST-3002 programming module

1-wire combi sensor for temperature and humidity
3 connections: +5VDC, Gnd, data
Max. length of cable to controller: 180 metres
Mounting bracket for wall
Mounting bracket for penetration
Temperature range: -40 - +80°C
Accuracy: ± 0.4°C (0°C to 80°C)
Humidity range: 0 - 100% RH
Not suitable for environments with repeated or prolonged condensation
Accuracy: ± 2%
Sensor type: Digital 1-wire (Maxim DS18B20)
Cable length: 3 meters
Probe length: 100 mm
Probe diameter: 17.5 mm

10 pcs. Independent high voltage 15A relays - SPDT (Form C)
Relay spade terminals. COM, NO, NC
Web Server for Browser-based setup and control
No software or device drivers required
XML status and control page make PC applications simple
Can function as a Modbus/TCP slave
On / Off and Pulses
DIN rail Mountable - Open Board
LED Indicates the current relay mode
Ideal for industrisal applications
Power supply: 9 - 28 VDC / 1.5A
UL Approved relays (E197852).
