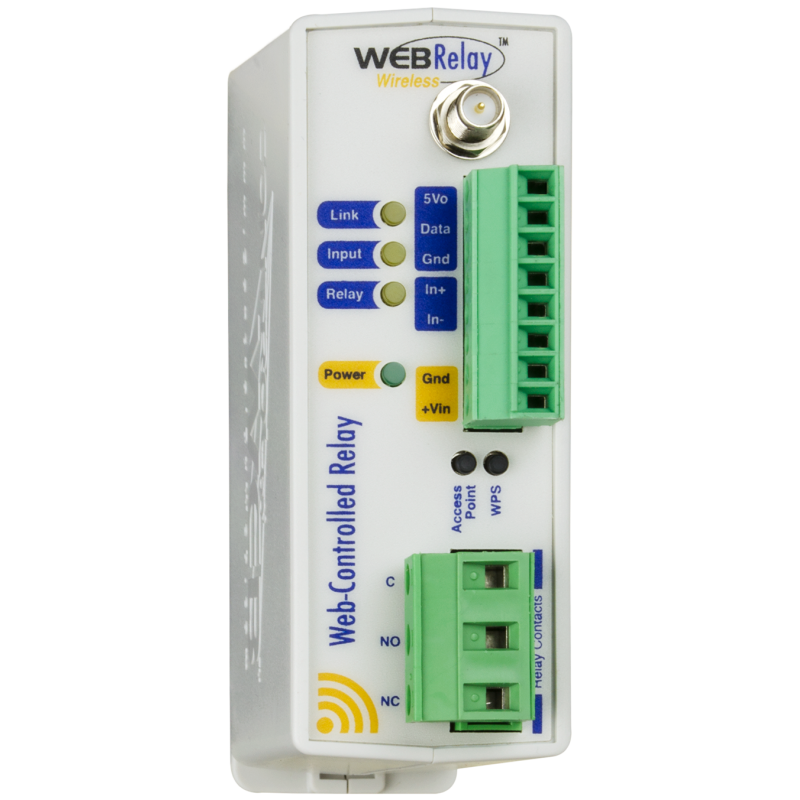

WiFi Web Relay, Ethernet, Internet 1 x Digital in, 1 x Power Relay Out, 1-Wire Temperature / Humidity, Modbus / TCP, 9 - 28VDC

Wireless network-based digital I / O module with 1-wire port
1 x Power Relay 12amp, com No, NC
1 x Digital Input Optoisolated 0 - 26VDC
1-wire bus for 4 Temp / Moisture Sensors
Wi-Fi 802.11b/g/n
Antenna inclusive
Range up to 100 meters
Logging of input, counter value
Temperature, Moisture, relay mode and volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector

XW-210-I
3,161.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

WiFi Web Relay is a user-friendly Wi-Fi relay and 1-wire bus for temperature and humidity sensor and with status alarm. WiFi Web Relay has a built-in relay to control light, engines and other relatively high power loads, a digital input that can be used to monitor and report the switch-closure sensors and a "1-wire" port for connection to 4 digital Temperature / moisture sensors up to 50 meters away.
Built-in Web server - WiFi Web Relay works well as a stand alone device that can be controlled and monitored using a standard web browser. It can be configured and configured using simple menus.
Wireless Access Point - WiFi Web Relay can be an independent wireless AP (access point) that does not require additional servers or controlbyweb devices. In that mode, WiFi web relay real-time temperatures or input status directly to a user via web browsers or the CBW Mobile app (optional).
The setup is simple. There is no app for download, no subscription to buy, no software required and no programming is required for setup or use.
Logging of data such as sensor data and changes in I / O mode. Both periodic and event-based logging are supported. Email / text messages such as sensor data and changes in I / O mode. Both periodic and event-based logging are supported.
Peer-to-peer (P2P) Communication - WiFi Web Relay has the option to remotely restrict relays placed on other controlbyweb devices.
