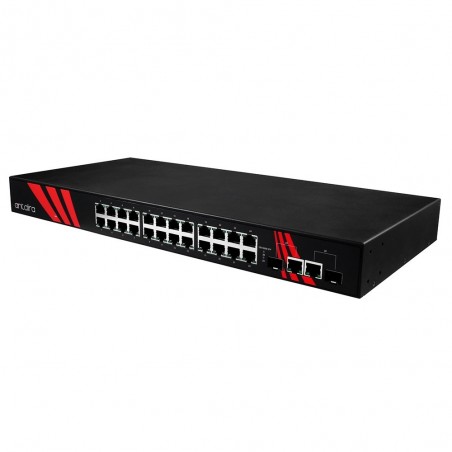

24 x 10/100 / 1000Tx IEEE 802.3 Off / On, PoE + Gigabit Ports (30W / Port) + 4 x Gigabit Copper / SFP Combi Ports
4 x 10/100 / 1000Tx RJ45 + 4 x 100/1000 SFP Slots
Management: SNMP v1 / v2c / v3, WEB, Telnet, Standard MIB
Security: 802.1x (Port Based, MD5 / TLS / TTLS / PEAP Encryption), HTTPS, SSH and SNMPv3
Redundant : Proprietary Ring (Ultra-High-Speed ​​Recovery Time <20 ms), RSTP / STP (802.1w / 1D), MSTP
48VDC Power Input (46-57 VDC for PoE off, 53-57 VDC recommended for PoE at) 2 Relay Outputs
Temperature: -40 ° - 75 ° C - Polarity Protection
Overload Protector
1U Rack Mount Design
IP30 Close

4 x 10/100/1000Mbps, RJ45, PoE+ (30 Watt per port)
1 x 10/100/1000Mbps uden PoE
1 x 100/1000Mbps SFP slot
Netværk redundant: RSTP/MSTP, og TG.8032 ERPS (Recovery Time <50ms)
Konfiguration: Web Console, Telnet, CLI Command
IGMP v1/v2, op til 256 grupper
IEEE802.1Q VLAN, SNMP v1/v2c
System alarm for port afbrydelse, via e-mail
Redundant power input: 48 - 55VDC
IP 30 - DIN-rail og vægmontering
Temperatur: -10 - +70°C

Network Broadcast Storm Protection
4x10 / 100 / 1000Tx Gigabit RJ45 Ports
4x100 / 1000Fx SFP Ports
IEEE 802.3af / at Compliant up to 30 Watts per Port
Network Redundancy : RSTP / MSTP, and G.8032 ERPS (Recovery time & lt; 50ms)
Configuration: Web Console, Serial, CLI Command
IGMP v1 / v2
QoS (IEEE 802.1p) and CoS / ToS < br> IEEE 802.1Q VLAN, SNMP v1 / v2c / v3
Redundant power supply: 48 ~ 55VDC
Built-in Relay Output for Port Break Alarm
System warning setting for Automatic alert via E-mail
DIN- rail and wall mounting
Operating temperature - STD: -10 ° to 70 ° C
Dimensions: 54 x 142 x 99 mm

8 x 10/100/1000Mbps, RJ45, PoE+ (30 Watt per port)
2 x 100/1000Mbps SFP slot
Netværk redundant: RSTP/MSTP, og TG.8032 ERPS (Recovery Time <50ms)
Konfiguration: Web Console, Telnet, CLI Command
IGMP v1/v2, op til 256 grupper
IEEE802.1Q VLAN, SNMP v1/v2c
System alarm for port afbrydelse, via e-mail
Redundant power input: 48 - 55VDC
IP 30 - DIN-rail og vægmontering
Temperatur: -10 - +70°C

8x10 / 100 / 1000Mbps RJ45 with PoE + (30W)
4x100 / 1000Mbps SFP slot
Network redundancy: STP / RSTP / MSTP, and G.8032 ERPS (Recovery Time & lt; 50ms)
IPv4 / IPv6, and DHCP option 66/67/82
Modbus / TCP protocol for Device Management and monitoring
Configuration: Web Console, Telnet, CLI Command
PoE, ping alarm function for PoE ports
IGMP v1 / v2 for Multicast Traffic Filtering
Enhanced network security with IEEE802.1X, SNMP v1 / v2c / v3, HTTPS, and SSH / SSL
Port lock function for unauthorized address blocking
Automatic warning via e-mail and via relay output
Temperature: -10 - + 70 ° C

8 x 10/100 / 1000Tx IEEE 802.3at / of Compliant with 30W / Port
2 x 10/100 / 1000Tx
2 x 100 / 1000Fx SFP
Network Redundancy: STP / RSTP / MSTP
G.8032 Recovery Time & lt; 50ms ERPS
IPv4 / IPv6, and DHCP Option 66/67/82
Modbus / TCP Protocol for Device Management and Monitoring
Configuration Web Console, Telnet, CLI Command
PoE Ping Alarm Function for PoE Ports Power Recycle
IGMP v1 / v2 for Multicast Traffic Filtering for QoS (IEEE802.1p / 1Q), CoS / ToS for IEEE802.1Q VLAN
Network Security with IEEE802.1X
SNMP v1 / v2c / v3, HTTPS, and SSH / SSL
Auto Warning via Email, Relay Output
Operating Temperature: -10 ~ 70 ° C
Supply Voltage: 48 - 55VDC

8 x 10/100/1000Mbit RJ45
2 x 100/1000Mbit SFP slot
Netværk redundant: STP/RSTP/MSTP, og G.8032 ERPS (Recovery Time <50ms)
IPv4/IPv6, og DHCP option 66/67/82
Modbus/TCP Protocol for Device Management og monitoring
Konfiguration: Web Console, Telnet, CLI Command
IGMP for Multicast Traffic Filtering
Enhanced Network Security med IEEE802.1X, SNMP v1/v2c/v3, HTTPS, og SSH/SSL
Auto alarm via e-mail, relæ output
RMON Function for Efficient Network Monitoring
Temperatur -10°C til 70°C

8 x 10/100 / 1000Mbps, RJ45, PoE + (30 Watts per port)
Redundant Network: RSTP / MSTP, and TG.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console , Telnet, CLI Command
IGMP v1 / v2, up to 256 groups
IEEE802.1Q VLAN, SNMP v1 / v2c
System alarm for port interruption, via email
Redundant power input: 48 - 55VDC
IP 30 - DIN rail and wall mounting
Temperature: -10 - + 70 ° C

8 x RJ45 10/100 / 1000Tx IEEE 802.3at / of Compliant with 30W / Port
2 x SFP 100/1000
Network redundancy: RSTP / MSTP, and G.8032 ERPS
Configuration: Web Console, Telnet, CLI Command
IGMP v1 / v2, up to 256 Groups
QoS (IEEE802.1p) and CoS / ToS
IEEE802.1Q VLAN, SNMP v1 / v2c / v3
PoE Ping Alarm Function for PoE Power Recycle
System warning setting for Automatic warning via E-Mail
Redundant power supply: 12 ~ 36VDC, (built-in Voltage Booster)
Metal IP30
DIN-Rail and wall mounting < br> Standard Operating Temperature: -10 ° to 70 ° C

10 & nbsp; x 10/100 / 1000Mbit RJ45
2 x 100 / 1000Mbit SFP slot
Network redundant: STP / RSTP / MSTP, and G.8032 ERPS (Recovery Time <50ms)
IPv4 / IPv6, and DHCP option 66/67/82
Modbus / TCP Protocol for Device Management and monitoring
Configuration: Web Console, Telnet, CLI Command
IGMP for Multicast Traffic Filtering
Enhanced Network Security with IEEE802.1X, SNMP v1 / v2c / v3, HTTPS, and SSH / SSL
Auto alarm via email, relay output
RMON Function for Efficient Network Monitoring
Temperature -10 ° C to 70 ° C

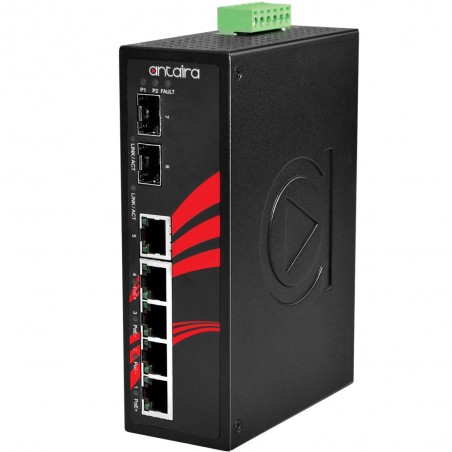

4 x 10/100 / 1000Tx IEEE 802.3at PoE + Compliant with 30W per Port
1 x 10/100 / 1000Tx & nbsp;
2 x 100/1000 SFP
Auto MDI / MDI-X Function < br> 14Gbps Back-Plane (Switching Fabric)
8K MAC Address
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Power Supply: 12 ~ 36VDC
Built-in 1 x Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design
Your rail and wall mounting
Operating temperature -40 ° to 75 ° C
Dimensions: 46 x 99 x 142mm
Weight : 1.4 Lb

8x10 / 100 / 1000Mbps, RJ45
Network Broadcast Storm Protection
Network redundant: RSTP / MSTP, ogh G.8032 ERPS (Recovery time <50ms)
Configuration: Web Console, Serial , CLI Command
IGMP v1 / v2 snooping
IEEE 802.1Q VLAN, SNMP v1 / v2c / v3
Redundant power input 12 - 48VDC
Relay output for port interrupt alarm
System alarm via e- mail
DIN-Rail and wall fittings
Temperature: -10 ° C to + 70 ° C

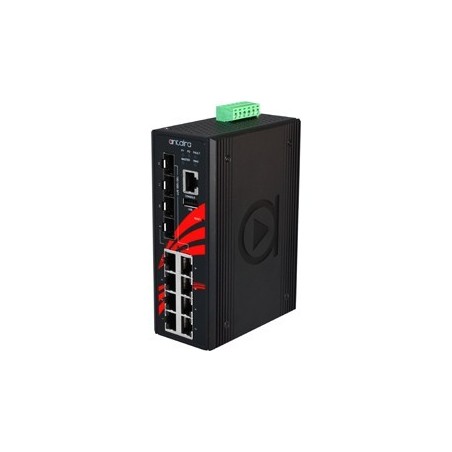

4 x 10/100 / 1000Mbit RJ45
4 x 100 / 1000Mbit SFP slot
Network redundant: STP / RSTP / MSTP, and G.8032 ERPS (Recovery Time 50ms)
Modbus / TCP Protocol for Device Management and Monitoring
IPv4 / IPv6 and DHCP option 66/67/82
Configuration: Web Console, Telnet, CLI Command
IGMP for Multicast Traffic Filtering
Enhanced Network Security with IEEE802 .1X, SNMP v1 / v2c / v3, HTTPS, and SSH / SSL
Auto alarm via email, relay output
Temperature -10 ° C to 70 ° C

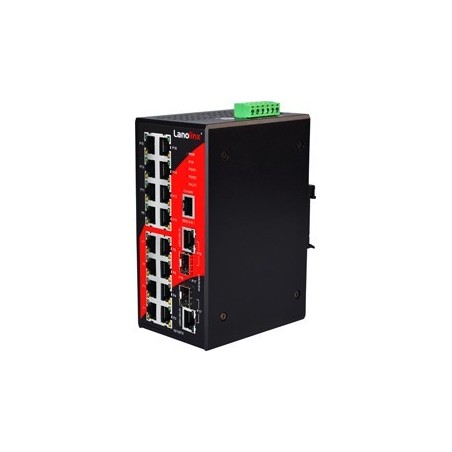

16 x 10/100Mbps RJ45
2 x 10/100/1000Mbit RJ45 (combi)
2 x 100/1000Mbps SFP slot (combi)
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP med Query Mode for Multi-Media applikationer
Port Mirroring for Traffic Monitoring
IP Address Security Management
IP30 robust aluminum kabinet
DIN-Rail eller vægmontering

4 x 10/100 / 1000Mbps, RJ45
1 x 100 / 1000Mbps SFP slot
Network redundant: RSTP / MSTP, and G.8032 ERPS (Recovery Time & lt; 50ms)
Configuration: Web Console, Telnet, CLI Command
IGMP v1 / v2, up to 256 groups
IEEE802.1Q VLAN, SNMP v1 / v2c
System alarm via email
Redundant power input - 12 - 48VDC < br> IP30, DIN-Rail and wall bracket
Temperature: -10 - + 70 ° C

8 x 10/100/1000Mbps RJ45
12 x 100/1000Mbps SFP slot
Redundant Ring - recovery time < 20ms over 250 units of connection)
IP baseret bandwidth management
IP police security function
DOS/DDOS auto prevention
DDM (Digital Diagnostic Monitoring) funktion (P1 ~ P8)
IGMP snooping for filtering multicast traffik
SNMP v1/v2c/v3, RMON and 802.1Q VLAN Network Management
ACL, 802.1x User Authentication for security
Multiple notification for warning of unexpected event
Configurable by Web-based interface, Telnet and Console (CLI)
Forsyningsspænding: 12 - 48VDC
IP30 kabinet
DIN-Rail og vægmontering

8 x 10/100/1000Mbps, RJ45, PoE+ (30 Watt per port)
Netværk redundant: RSTP/MSTP, og TG.8032 ERPS (Recovery Time <50ms)
Konfiguration: Web Console, Telnet, CLI Command
IGMP v1/v2, op til 256 grupper
IEEE802.1Q VLAN, SNMP v1/v2c
System alarm for port afbrydelse, via e-mail
Redundant power input: 12 - 36VDC
IP 30 - DIN-rail og vægmontering
Temperatur: -10 - +70°C

8 x 10/100/1000Mbps RJ45 med PoE+ (30W)
4 x 100/1000Mbps SFP slot
Netværk redundancy: STP/RSTP/MSTP, og G.8032 ERPS (Recovery Time <50ms)
IPv4/IPv6, og DHCP option 66/67/82
Modbus/TCP protocol for Device Management og monitoring
Konfiguration: Web Console, Telnet, CLI Command
PoE, ping alarm funktion for PoE porte
IGMP v1/v2 for Multicast Traffic Filtering
Udvidet netværk security med IEEE802.1X, SNMP v1/v2c/v3, HTTPS, og SSH/SSL
Port lock function for unauthoriserede address blokering
Automatisk advarsel via e-mail og via relæudgang
Temperatur: -40 - +75°C
