24 ports Industrial 10/100 / 1000Mbit + 4 x 100 / 1000Mbit SFP, combi, managed PoE switch. Rack. -40 - + 75 ° C, 46 - 57VDC

24 x 10/100 / 1000Tx IEEE 802.3 Off / On, PoE + Gigabit Ports (30W / Port) + 4 x Gigabit Copper / SFP Combi Ports
4 x 10/100 / 1000Tx RJ45 + 4 x 100/1000 SFP Slots
Management: SNMP v1 / v2c / v3, WEB, Telnet, Standard MIB
Security: 802.1x (Port Based, MD5 / TLS / TTLS / PEAP Encryption), HTTPS, SSH and SNMPv3
Redundant : Proprietary Ring (Ultra-High-Speed ​​Recovery Time <20 ms), RSTP / STP (802.1w / 1D), MSTP
48VDC Power Input (46-57 VDC for PoE off, 53-57 VDC recommended for PoE at) 2 Relay Outputs
Temperature: -40 ° - 75 ° C - Polarity Protection
Overload Protector
1U Rack Mount Design
IP30 Close

ANR-LNP-2804GN-SFP-T
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

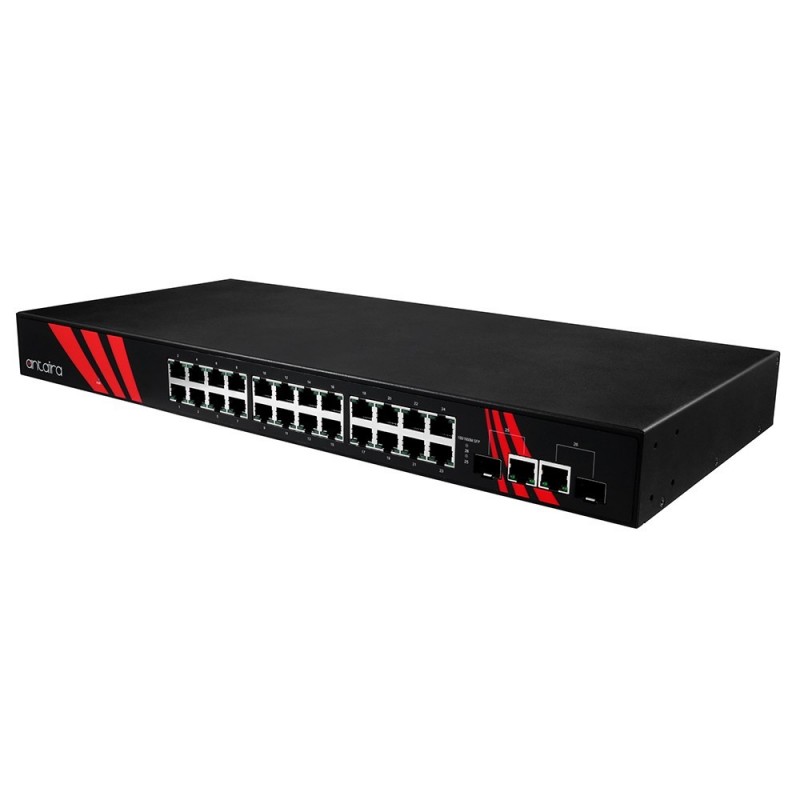

Antaira Technologies’ LNP-2804GN-SFP-T is an industrial-class Layer 2 full managed switch with 24 Gigabit ports and four Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding outdoor environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for Layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption devices, moreover, it supports high reliability with -40 ~ 75°C operating temperatures, and has a dual 48 VDC input power design to ensure vital network capabilities with minimal downtime.

Dimensioner
438 x 43,6 x 259,2mm, 1U, rack
Driftstemperatur
-40 - +75
Fiber
4 x 100/1000Mbps SFP slot
Forsyning
46 - 57VDC, redundant
Kabinet
1U, 19" rack, metal, IP30
Maks. effekt
20 Watt system, 30 Watt per PoE port, maks. 480 Watt
Netværk
24 x 10/100/1000Mbps, RJ45, PoE+
Protokol
IGMP, SNMP, TFTP, SNTP, SMTP, Syslog, Web-browser, Ring, IPv6
