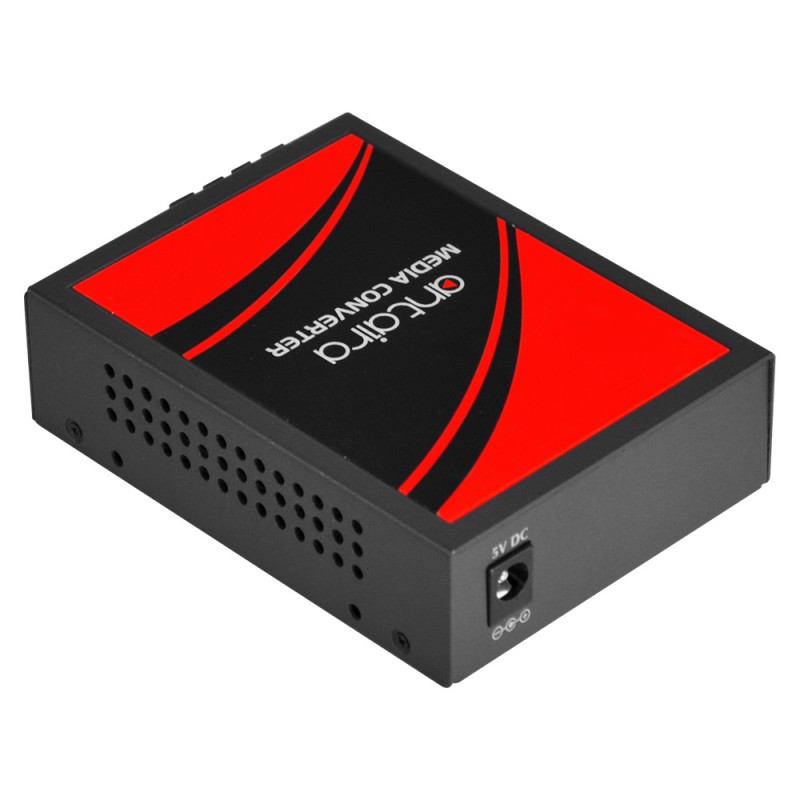

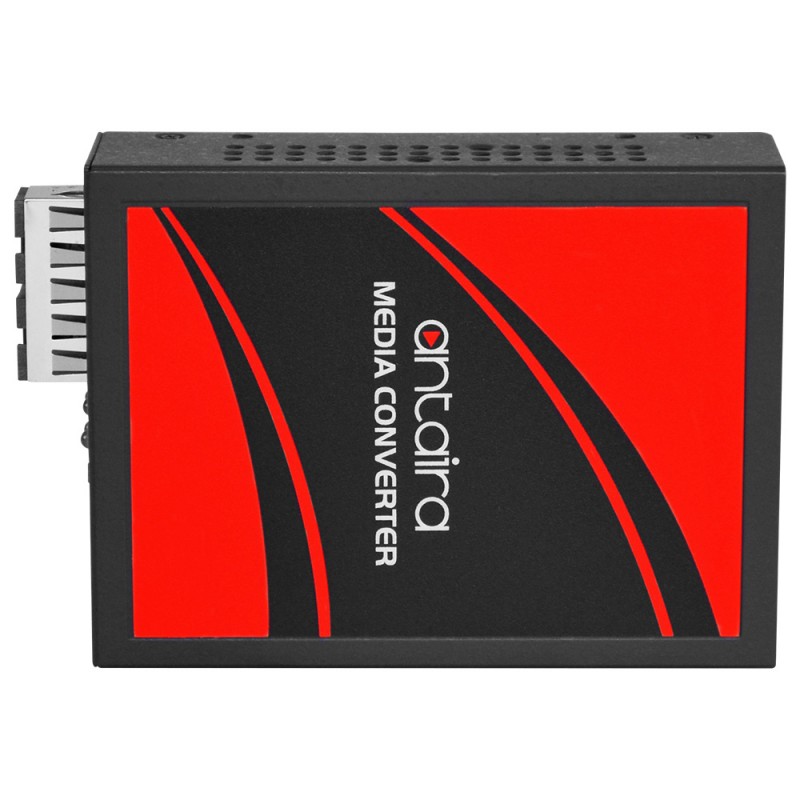

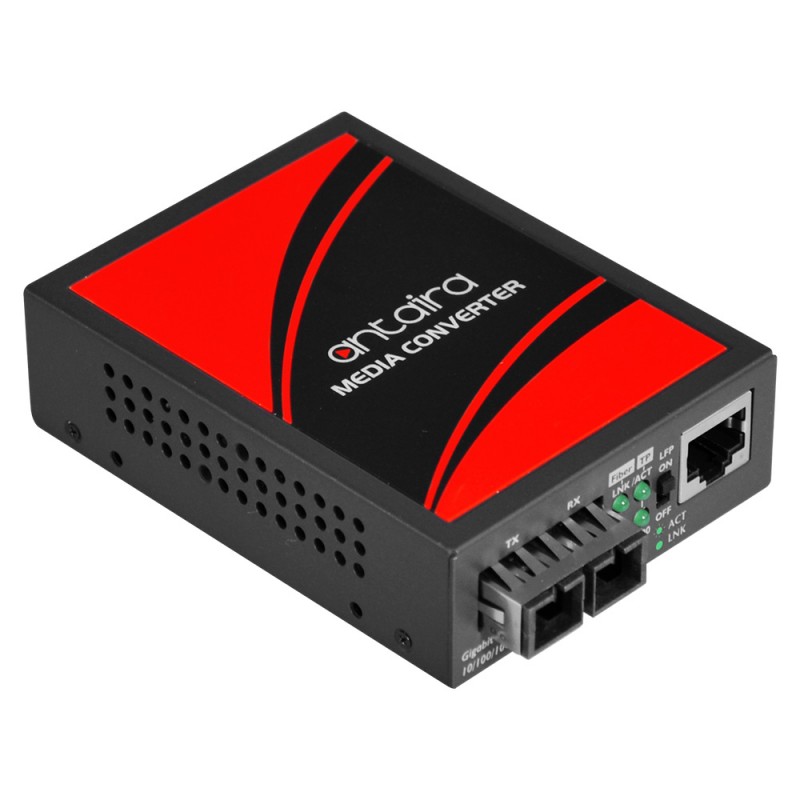

Media converter RJ45 to the fiber. RJ45 10/100/1000Mbit. Fiber 1000Mbit, SC, Multimode, up to 550 meters, 5VDC

1000Mbit Multimode Media Converter for RJ45
1 x RJ45 10/100 / 1000BaseT
1 x 1000BaseSX / LX with SC connector Multimode
Back-Pressure in Half-Duplex
Auto MDI / MDI -X function in Store-and-forward mechanism
Up to 220m / 550m
Dimensions: 97 x 70 x 26 mm
Operating temperature: 0 - + 50 ° C

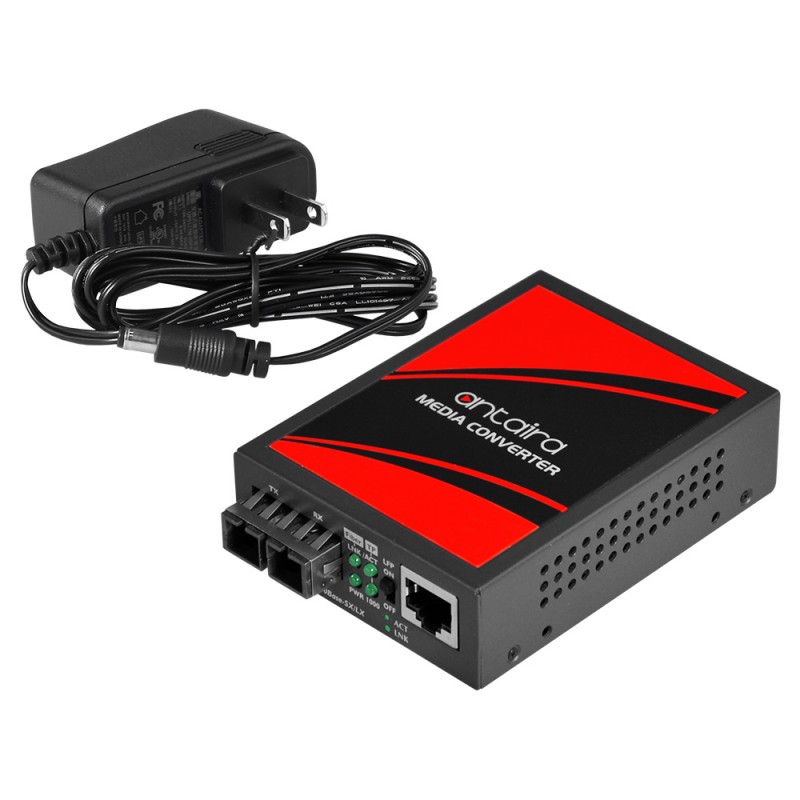

Power supply: 5VDC / 2A included

ANR-FCU-2802SC
1,535.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Afstand
FCU-2802SC: 220m ~ 550m FCU-2802SC-S10: 10km
Certifications
FCC Class A, CE Class A
Dimensioner
97 x 70 x 26mm
Driftstemperatur
0° C to 50° C
Fiber
FCU-2802SC: SC / Multi-Mode FCU-2802SC-S10: SC / Single-Mode
Interface
1 x 1000BaseT RJ-45 Port (Auto-MDI/MDI-X) Twisted Pair 1 x 10/100/1000BaseT Port 1 x 1000BaseSX/LX Port
LED
Power, TP Link/ACT, Fiber Link/ACT
Luftfugtighed
5% to 90% (non-condensing)
Standarder
IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX
Strømforbrug
5 Watts
Strømforsyning
5V DC, 2A
