Media converter RJ45 to the fiber. RJ45 10/100/1000Mbit. Fiber 1000Mbit SFP slot. Single Mode or Multi Mode PoE+ PSE, 52~56VDC

1000Mbit media converter with PoE + for Equipment
PoE is PSE (Power Sourcing Equipment)
PoE + up to 30 watts per port
1 x RJ45 10/100/1000Mbit with PoE + (PSE)
1 x SFP slot for 1000Mbit Single Mode or Multimode
802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af
IEEE 802.3x Full-Duplex Flow Control
Auto MDI / MDI-X FUNCTION
Dimensions: 94 x 70 x 26mm
Operating temperature: 0 ° C to 50 ° C
Power supply: 52~56VDC / 0.6A

1,458.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number ANR-FCU-2805P-SFP
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. 0° C to 50° C
Interface 1 x 10/100/1000BaseT Ethernet TP Port Auto-Negotiation, Auto MDI/MDI-X with PoE Injector Function, 1 x SFP Port
PoE IEEE 802.3at Power over Ethernet Pre-standard IEEE 802.3af Power over Ethernet enhancements Standard
Standarder IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3at Power over Ethernet Pre-standard IEEE 802.3af Power over Ethernet enhancements Standard
Strømforbrug 30 Watt
Strømforsyning PoE 52~56V DC, Max. 30 Watts
Weight 0.21 KG
Dimensioner 94 x 70 x 26mm
Certifications FCC Part 15 Class A, CE

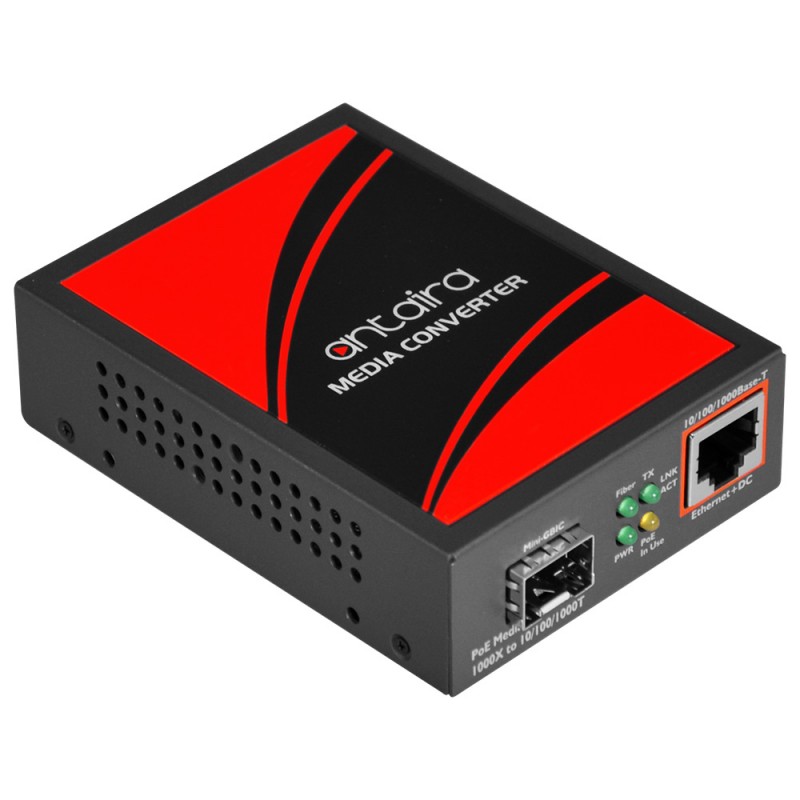

The ANR-FCU-2805P-SFP is a compact Gigibit fiber to 10/100/1000 Ethernet media converter in an industrial metal enclosure. The ANR-FCU-2805P-SFP features a standard SFP slot as well as copper RJ45 Ethernet connectors. The ANR-FCU-2805P-SFP is fully compliant with IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The ANR-FCU-2805P-SFP features LEDs that provide indicators for Power, TP Link/ACT, and Fiber Link/ACT. The ANR-FCU-2805P-SFP is a Gigabit media converter that is also capable of delivering high-power IEEE 802.3at PoE+. With 30 watts of PoE output, the ANR-FCU-2805P-SFP media converter has the power and fiber capabilities for many different applications.
