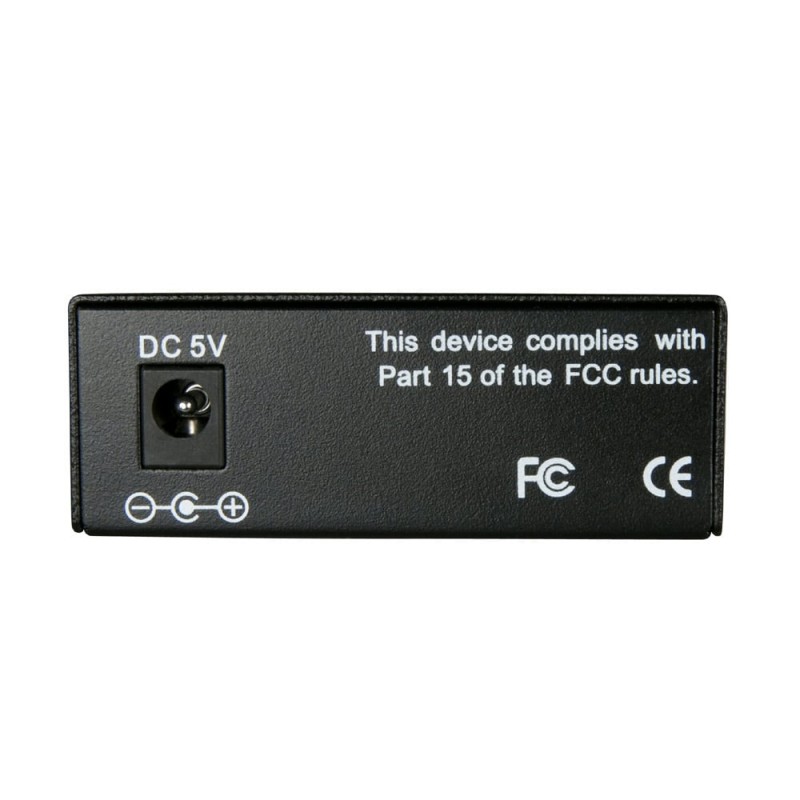

Media converter RJ45 to the fiber. RJ45 10/100/1000Mbit. Fiber 1000Mbit SFP slot Single Mode or Multi Mode. 5VDC
1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C
572.00 kr
Excl. VAT
Quantity
Physically in stock
close
Specifications
| Operating Temp. | 0°C to +70°C |
|---|---|
| Afstand | Fiber: Multi-mode: 550 m (fiber size: 50/125 μm), Single-mode: 10/20/50/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm), UTP: Cat. 5e or Cat. 6: 100 m |
| Bølgelængde | Multi-mode: 850 nm, Single-mode: 1310 nm, 1550 nm |
| Luftfugtighed | 5% to 90% (non-condensing) |
| Porte | 1 x RJ45, 1 x SFP |
| Standarder | IEEE802.3z 1000Base-SX/LX , IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3u,100Base-TX, IEEE 802.3 10Base-T |
| Strømforsyning | 5V DC 2A |
This 10/100 / 1000Mbit Media converter used include in the backbone transmission network. Denkonverterer optical fiber connection to and from the RJ45 cable Ethernet. 10/100 / 1000M interface (TX) and 1000M SFP slot (FX). It supports distances between mediea converter Single Modeog Multimode fibers having a transmission distance of up to 80 km to SMfiber and 550 m from the MMfiber.
