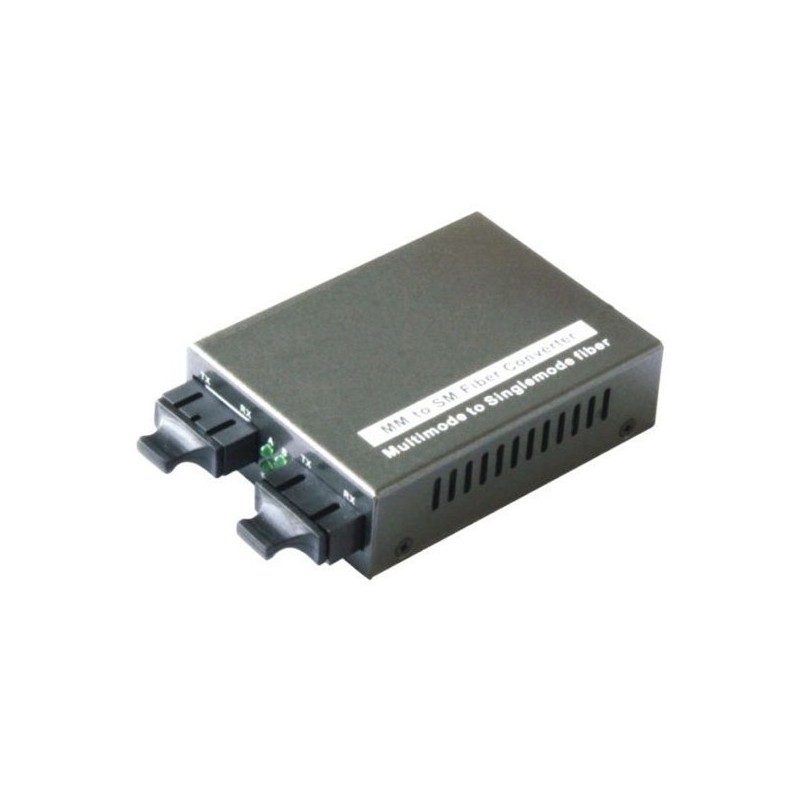

Multimode to Single Mode 100Mbit Fiber converter SC connector. Connector 2 different fiber network

Connect Multimode fiber network with single mode fiber network
1 x 100Mbit Single Mode SC
1 x 100Mbit Multimode SC
Wavelength: 1310 / 1310nm
100Base-SX / LX fiber network
5VDC / 2A adapter included

ETH-FX-FX+25
1,875.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Multi-mode single mode converter.

To 100 Mbit.

Afstand
SC multimode 2 km og 25 km SC singlemode
Dimensioner
26 x 70 x 106mm (H x B x D)
Kabel
Anvender multimode fiberkabel (50/125 µm eller 62,5/125 µm). Anvender singlemode fiberkabel (9/125 µm)
Omformer
Omformer 100 Mbit (SC multimode 1310 nm) til 100 Mbit (SC singlemode 1310 nm)
Stik
SC Fiber
Strømforsyning
Strømforsynes af medfølgende netadapter 5 volt 2A
