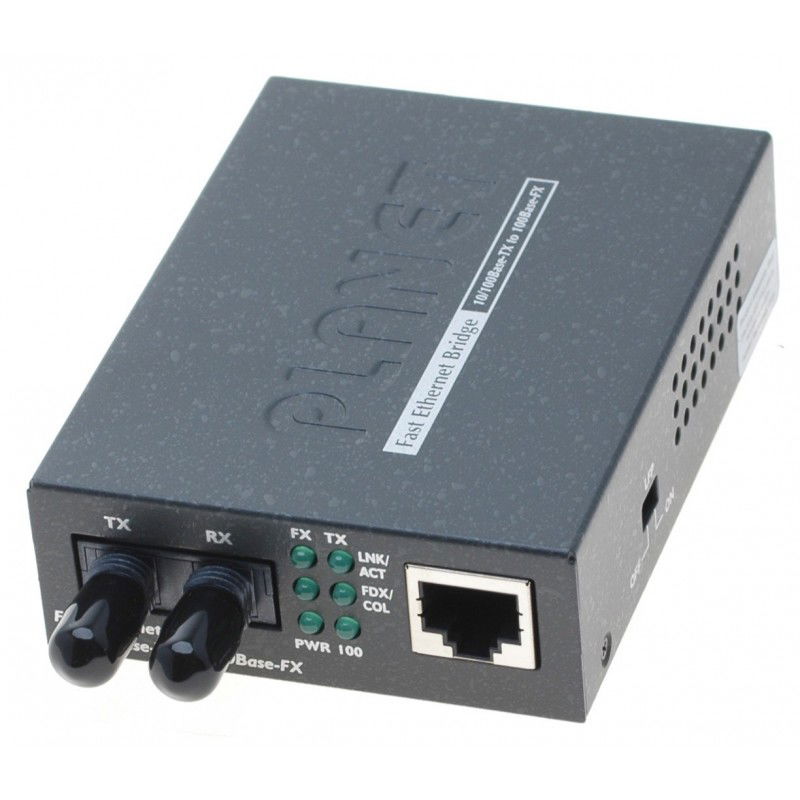

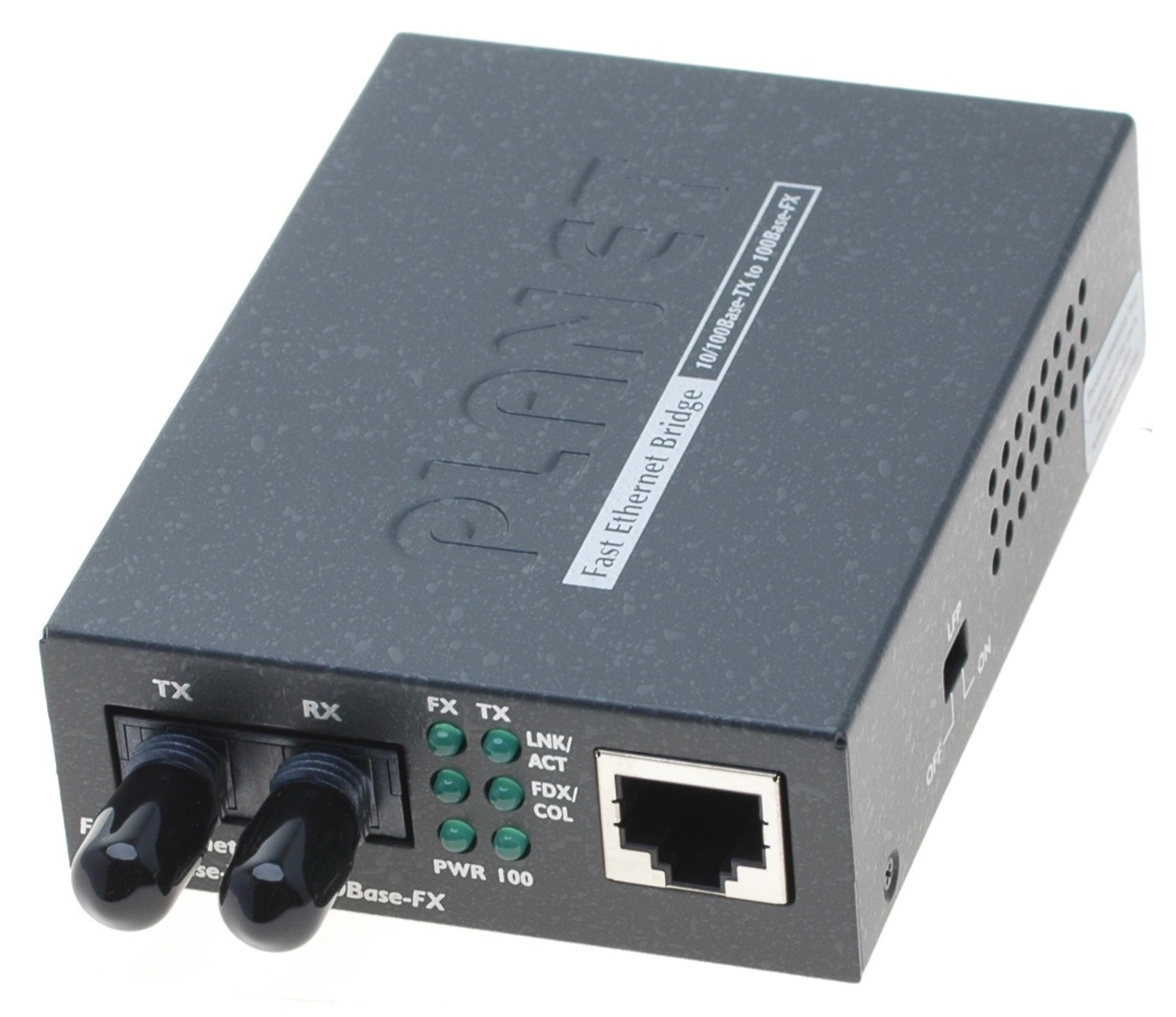

Media Converter RJ45 to Fiber, RJ45 10 / 100Mbit, 100Mbit fiber Multimode, ST, 5VDC

Media Converter 100Mbit Multimode ST duplex - 2km
1 x RJ45 10 / 100Mbit
1 x ST 100Mbit
1310nm
5VDC
Dimensions: 97 x 69 x 26 mm

ETH-RJ45-ST-P
535.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

10/100 Ethernet for multimode fiber converter.

Ethernet for 100 Mbit fiber to ST connector.

Full / half duplex and LFP (Link Fault Pass through) are selected via DIP switch

Afstand
Ethernet-kabel 100 meter og fiber 2 km (412 m ved halv dupleks)
Dimensioner
97 x 70 x 26mm (H x B x D)
Driftstemperatur
0-50°C
Montering
DIN skinne, vægmontering el. i kabinet
Omformer
10/100Mbit (RJ45 stik) til 100 Mbit fiber (ST multimode)
Strømforsyning
Strømforsynes af medfølgende 5V/2A netadapter

4 other products in the same category:

Media Converter RJ45 for...

Media Converter RJ45 for fiber. RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit. Fiber 10Gbit SFP+ slot. 5VDC

Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm

Price 3,142.00 DKK
Product code: ETH-RJ45-10GSFP+
Physically in stock
Quick view

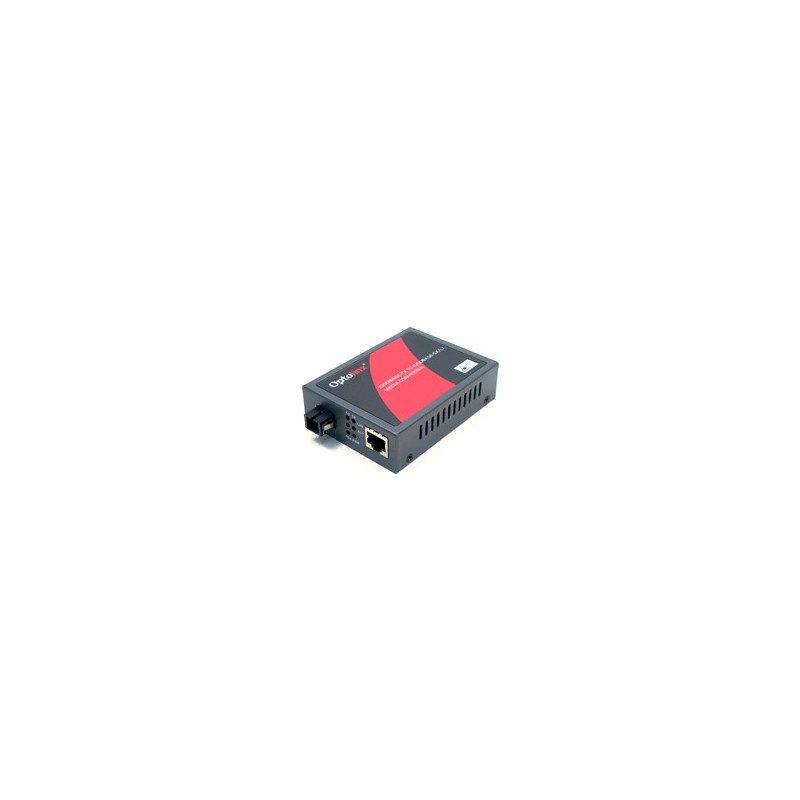

Media Converter Gigabit for...
