Multi Mode

DIN-mounted super compact media converter
100 Mbit fiber (additional purchase SFP module)
RJ45 10/100 Mbit
Ideal for installation in camera housings or where space is tight
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode
SFP modules - see under Accessories
Supply voltage: 12 - 60VDC or 18 - 36 VAC
Temperature range: -40° - +75° C
5% to 95% humidity
36 x 59 x 49mm (H x W x D)
DIN bracket included

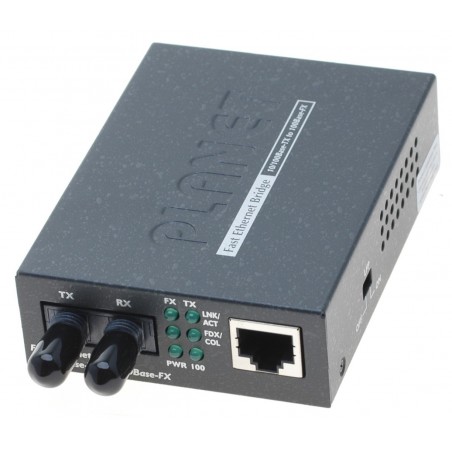

Media Converter 100Mbit Multimode ST duplex - 2km
1 x RJ45 10 / 100Mbit
1 x ST 100Mbit
1310nm
5VDC
Dimensions: 97 x 69 x 26 mm

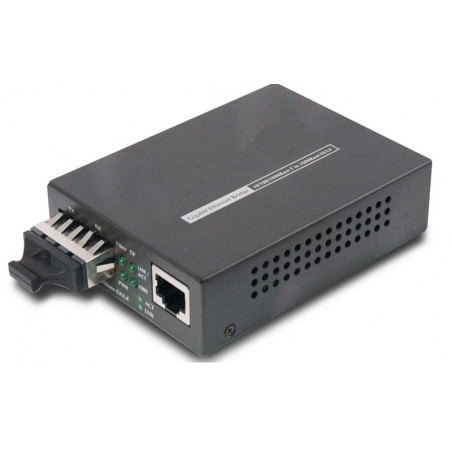

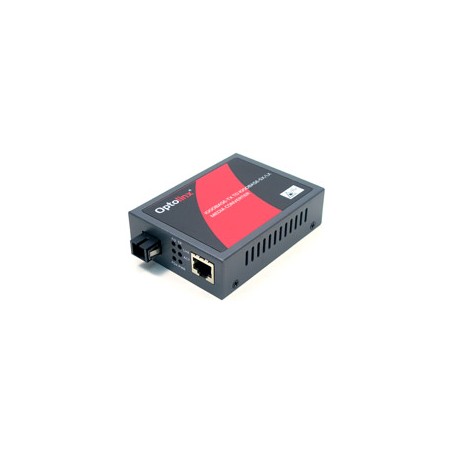

Media converter 1000Mbit Multi Mode SC duplex, 550 meters
10/100/1000Base-TX to 1000Base-SX, 850 nm
Multi Mode fiber cable (50/125 µm or 62.5/125 µm)

Ethernet 10Base-T / FL Multi-Mode converter
850 nm
Only for 10Mbit fiber - older network systems
RJ45 to Fiber ST
Max. cable length: 2km
Power is supplied from 12VDC 1A

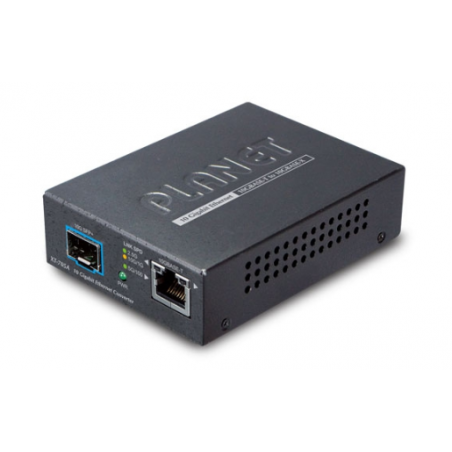

Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm

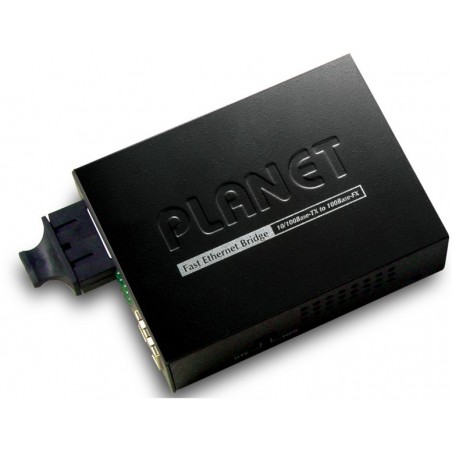

10 / 100Base-T to 100Base-FX duplex multi mode
Multi mode up to 2km
SC - 50my and 62,5my - 1310nm
Temperatur: -40 - +75°C
5VDC PSU included.
