Media converter RJ45 to fiber, RJ45 10/100/1000Mbit, Fiber 1000Mbit Multi Mode, SC, 5VDC
Media converter 1000Mbit Multi Mode SC duplex, 550 meters
10/100/1000Base-TX to 1000Base-SX, 850 nm
Multi Mode fiber cable (50/125 µm or 62.5/125 µm)

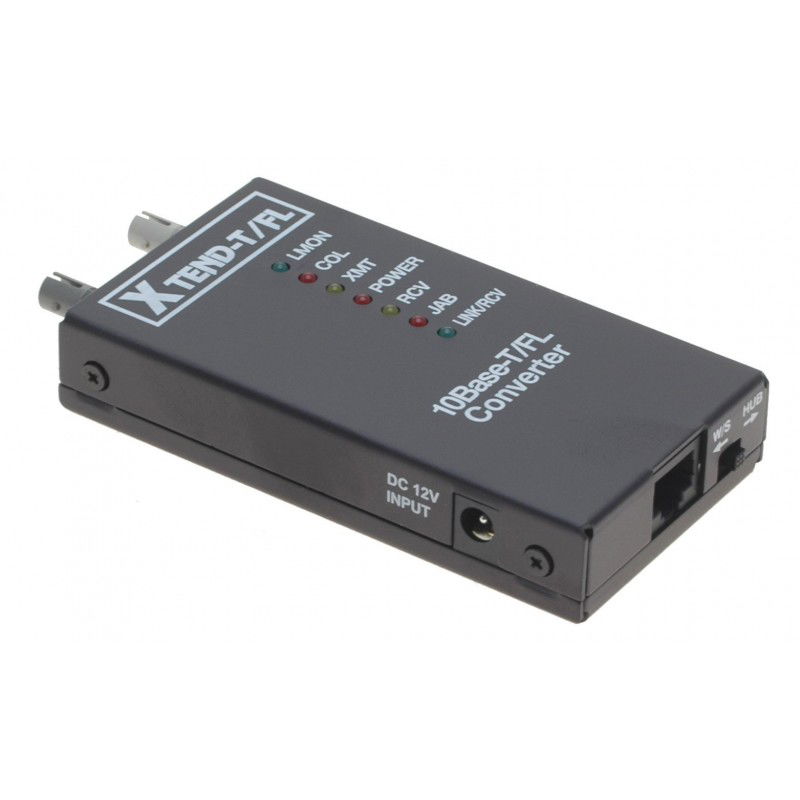

Ethernet 10Base-T / FL Multi-Mode converter
850 nm
Only for 10Mbit fiber - older network systems
RJ45 to Fiber ST
Max. cable length: 2km
Power is supplied from 12VDC 1A
Ethernet (RJ45) to fiber converter.
10Base-T to 10Base-FL converter.
Media converter 1000Mbit Multi Mode SC duplex, 550 meters
10/100/1000Base-TX to 1000Base-SX, 850 nm
Multi Mode fiber cable (50/125 µm or 62.5/125 µm)
IEEE 802.3 / u / ab 10/100 / 1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI / MDIX in TP Port
Auto Negotiation in TP Port
Flow Control
Link Alarm
Auto & amp; Force Mode Configuration
Dimensions: 71 x 94 x 26 mm for DC5 V, 1.5 A
Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm
10 / 100Base-T to 100Base-FX duplex multi mode
Multi mode up to 2km
SC - 50my and 62,5my - 1310nm
Temperatur: -40 - +75°C
5VDC PSU included.
