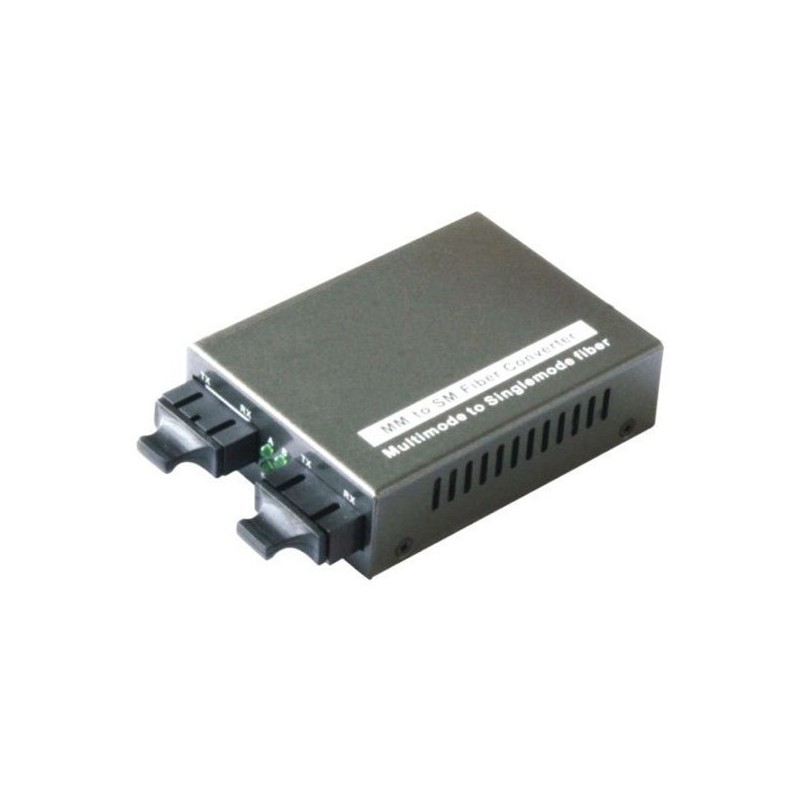

Multimode and Single Mode Fiber converter 1000Mbit. SC connectors. Merge 2 Fiber network into 1

10/100/1000Base-TX to 1000Base-LX
1310 nm, Single Mode
Up to 10 km
Uses singlemode fiber cable (9/125 µm)
Only for 1000Mbit fiber, Single Mode

Connect Multimode fiber network with single mode fiber network
1 x 100Mbit Single Mode SC
1 x 100Mbit Multimode SC
Wavelength: 1310 / 1310nm
100Base-SX / LX fiber network
5VDC / 2A adapter included

Replaced by ETH-RJ45G-SFP2

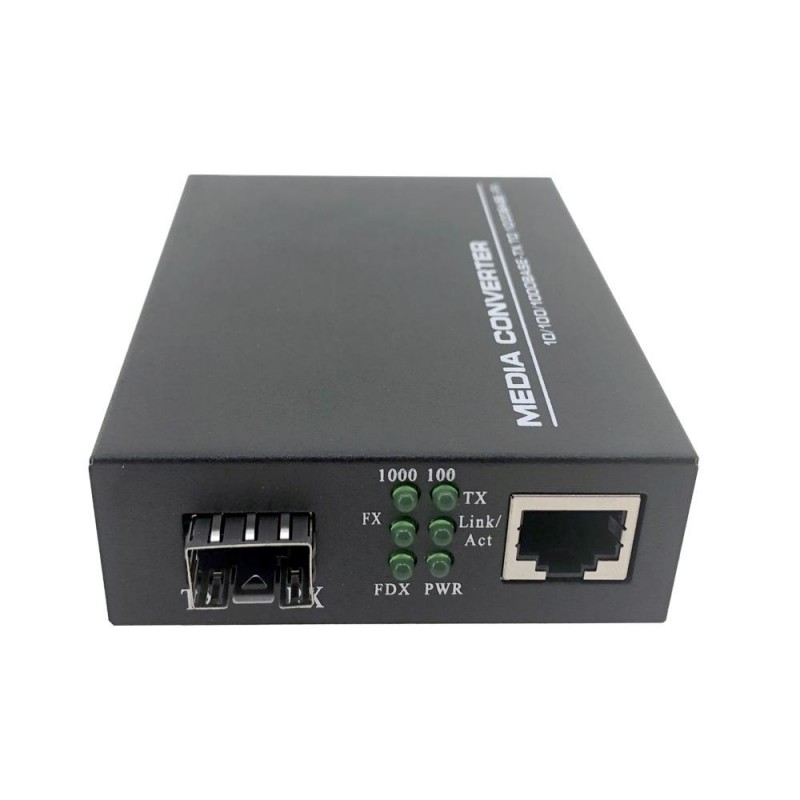

1000Mbit Media converter can connect 2 different fiber networks and RJ45
Is suitable as a node in Gigabit fiber networks with 1 x RJ45
1 x RJ45 10/100/1000Mbit
2 x 1000Mbit SFP slot for SFP modules Single Mode and/or Multi Mode
Can also connect Single Mode networks with Multi Mode networks
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase additional Gigabit SFP modules.
5VDC power supply included

DIN-mounted super compact media converter
100 Mbit fiber (additional purchase SFP module)
RJ45 10/100 Mbit
Ideal for installation in camera housings or where space is tight
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode
SFP modules - see under Accessories
Supply voltage: 12 - 60VDC or 18 - 36 VAC
Temperature range: -40° - +75° C
5% to 95% humidity
36 x 59 x 49mm (H x W x D)
DIN bracket included
