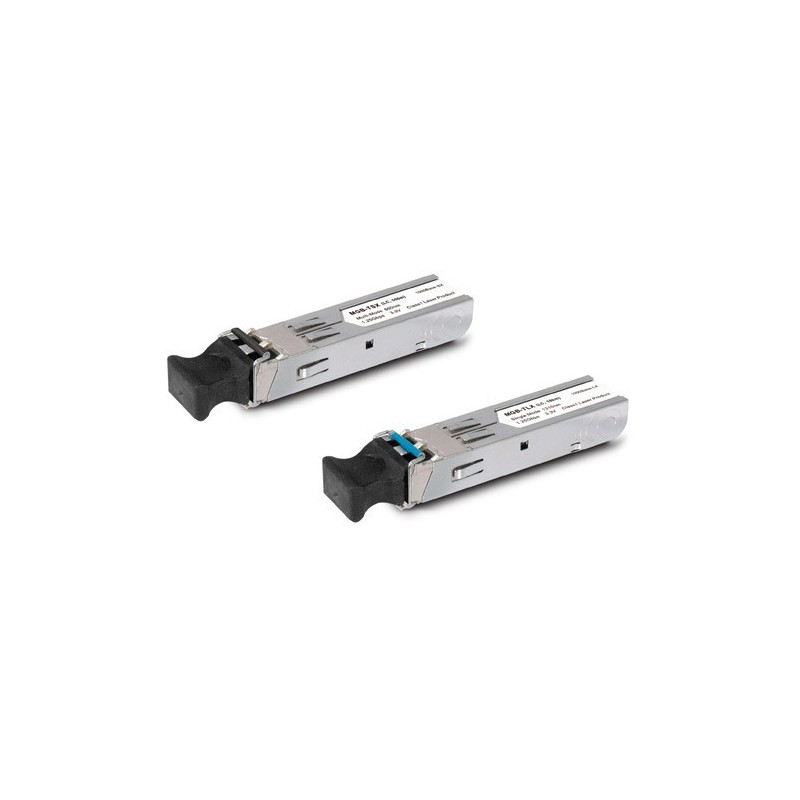

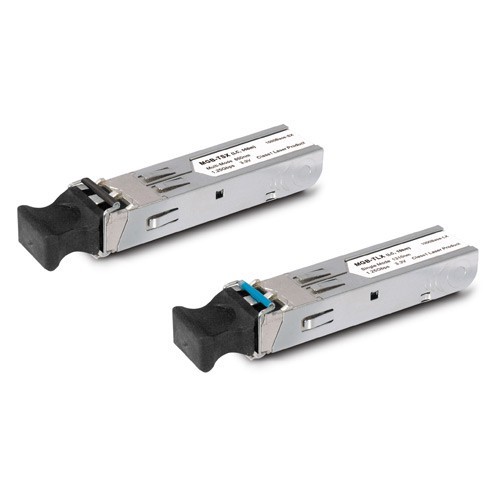

1000Mbit SFP module, 1000Base-LX, DMM, Single Mode, LC, -40 - +85°C. Up to 10km

LTE Panel antenna, indoor/outdoor
2 x N-female connector
35° horizontal and 32° vertical radiation
IP67
Temperature: -20° ~ +75°C
Impedance, 50 ohms
Max power: 50 Watt
Frequency band: 698-806MHz / 824-894MHz / 925-960MHz / 1710-1885MHz / 1920-1980MHz / 2110-2170MHz / 2500-2690MHz
Dimensions: 473 x 252 mm
Weight: 1.4kg
Mast bracket included

PoE++ power supply via Ethernet cable, up to 95 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 54VDC/95W
Mid-span and End-span give 95 Watts
For 100/1000/2500/5000Mbit networks.
PoE power output DC 24V~54V input: Max. 89.5W@1m cable, Max. 75W@100m cable
PoE power output DC 12V input: Max. 60W@1m cable, Max. 52W@100m cable
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN installation
Powersupply input from 12 - 54VDC

External COM port via Ethernet and Internet
Atop SE5001-S5, Italy RS422 / 485 via DB9 male connectors
Powered by the 9 - 30VDC or 5VDC (power jack) - 1,5Watt

Surge Protection for 10/100 / 1000Mbit network
Review voltage: 5V / 300mA
review loss: Less than 0.2dB
2 x RJ45 female (in / out)
Protected Pin: 1 - 8 (data)
Threshold at 15V
Max Transient current: 5 - 15k Amp
Operating temperature: -40 - +70°C
Moisture: less than 90% RH
Size: 112 x 38 x 30 mm
Weight: 150g
Earth cable of more than 2.5kvmm must be shorter than 1 meter
Earth resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike
