Replaced by ETH-RJ45G-SFP2

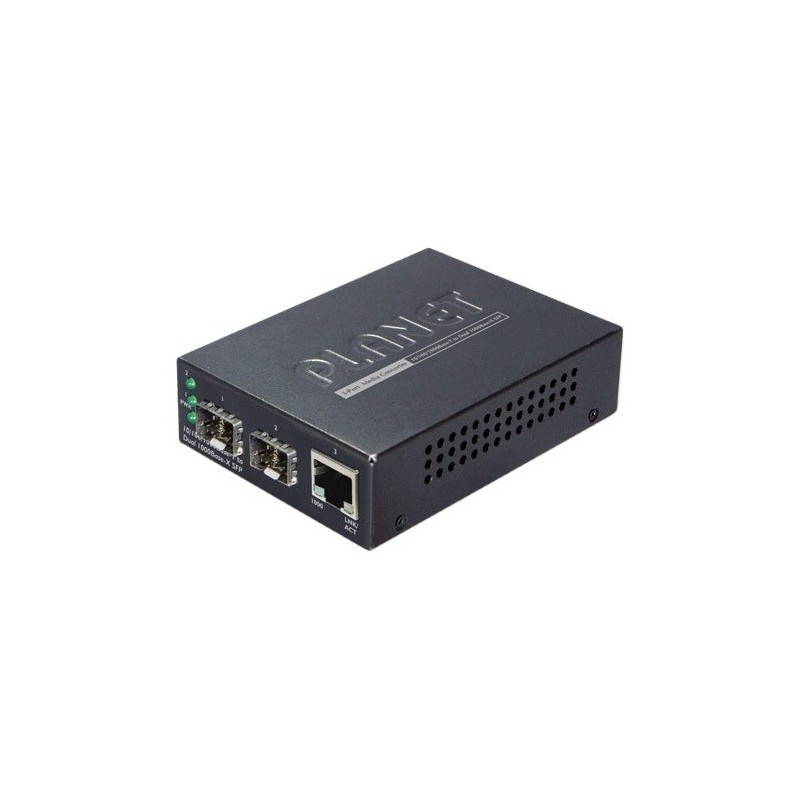

1000Mbit Media converter can connect 2 different fiber networks and RJ45
Is suitable as a node in Gigabit fiber networks with 1 x RJ45
1 x RJ45 10/100/1000Mbit
2 x 1000Mbit SFP slot for SFP modules Single Mode and/or Multi Mode
Can also connect Single Mode networks with Multi Mode networks
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase additional Gigabit SFP modules.
5VDC power supply included
2 x SFP and RJ45 can be used for Single Mode to Multi Mode fiber converter.
Works as a 3-port Gigabit switch - for SFP modules.
1000BASE-SX / LX SFP fiber optic SFP slot
10/100 / 1000BASE-T copper, auto MDI / MDIX function
Automatic switch between 10/100/1000Mbit on RJ45
For 1000 Mbps SFP modules
10K jumbo pack size
IEEE 802.1Q Tag VLAN, Multicast pass-through
MiniGBIC/SFP optical transceiver
LC fiber cables
1310 nm
Up to 10 km, single mode
Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm
IP67 sealed media converter, ideal for Camcorder, AP etc.
1 port 1000Mbit fiber SFP slot
SFP slot for Single Mode or Multi Mode optical transceiver
1 port 100/100/1000Mbit RJ45
Autodetection of PD equipment (devices that must be powered by PoE)
PoE+ out: 30Watt
End-span: + on 1/2, - on 3/6
IK10 rated for vandal protection
6kV ESD protection
Supply voltage: 24 - 56VDC (Terminal block)
Temperature range: -40 - +75°C
Plug and Play
Dimensions: 170 x 44 x 73 mm
Wall mounting
1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C
1000Mbit media converter with PoE + for Equipment
PoE is PSE (Power Sourcing Equipment)
PoE + up to 30 watts per port
1 x RJ45 10/100/1000Mbit with PoE + (PSE)
1 x SFP slot for 1000Mbit Single Mode or Multimode
802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af
IEEE 802.3x Full-Duplex Flow Control
Auto MDI / MDI-X FUNCTION
Dimensions: 94 x 70 x 26mm
Operating temperature: 0 ° C to 50 ° C
Power supply: 52~56VDC / 0.6A
