Media converter IP67/IK10. 1000Mbit Fiber to SFP, 10/100/1000Mbit RJ45, PoE+ PSE. Input 24 - 56VDC
IP67 sealed media converter, ideal for Camcorder, AP etc.
1 port 1000Mbit fiber SFP slot
SFP slot for Single Mode or Multi Mode optical transceiver
1 port 100/100/1000Mbit RJ45
Autodetection of PD equipment (devices that must be powered by PoE)
PoE+ out: 30Watt
End-span: + on 1/2, - on 3/6
IK10 rated for vandal protection
6kV ESD protection
Supply voltage: 24 - 56VDC (Terminal block)
Temperature range: -40 - +75°C
Plug and Play
Dimensions: 170 x 44 x 73 mm
Wall mounting
1,435.00 kr
Excl. VAT
Quantity
On the way in
close

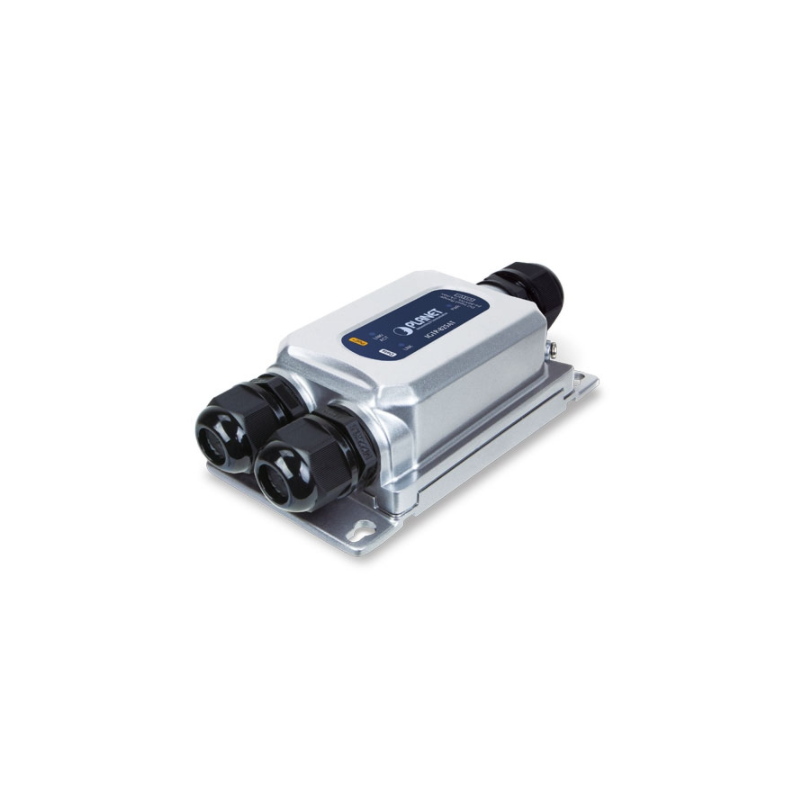

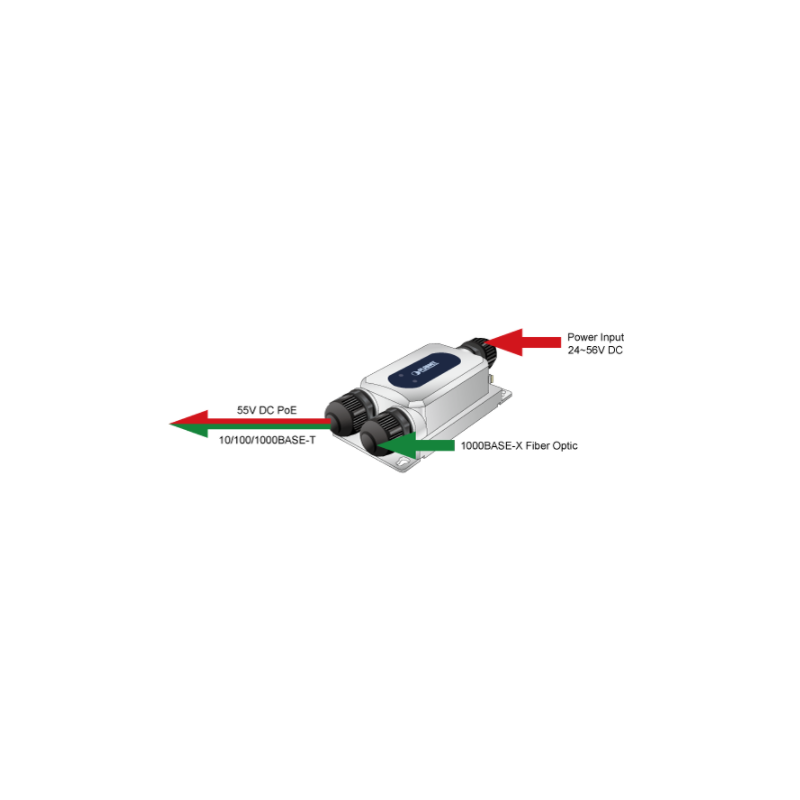

The ETH-RJ45G-P-IP67 is the industrial Gigabit PoE+ media converter with a 1000BASE-X SFP fiber port and a 10/100/1000BASE-T 802.3at PoE+ copper port in an IP67 rugged but compact housing.
ETH-RJ45G-P-IP67 can operate under a temperature between -40 and 75°C. Provides stable, continuous and long-range data transmission.
Can be installed in any harsh environment without considering space.
The ETH-RJ45G-P-IP67 can deliver up to 55VDC / 30 watts via Cat.5/5e/6 Ethernet cables. It is also backward compatible with 802.3af PoE standards to allow users to flexibly deploy standard devices simultaneously without the need for software configuration.
With data and Power over Ethernet from one device, the ETH-RJ45G-P-IP67 can eliminate the need for external power supplies.
The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters.
ETH-RJ45G-P-IP67 supports a 1000BASE-X SFP module - Multi Mode up to 550m and Single Mode up to 120km.

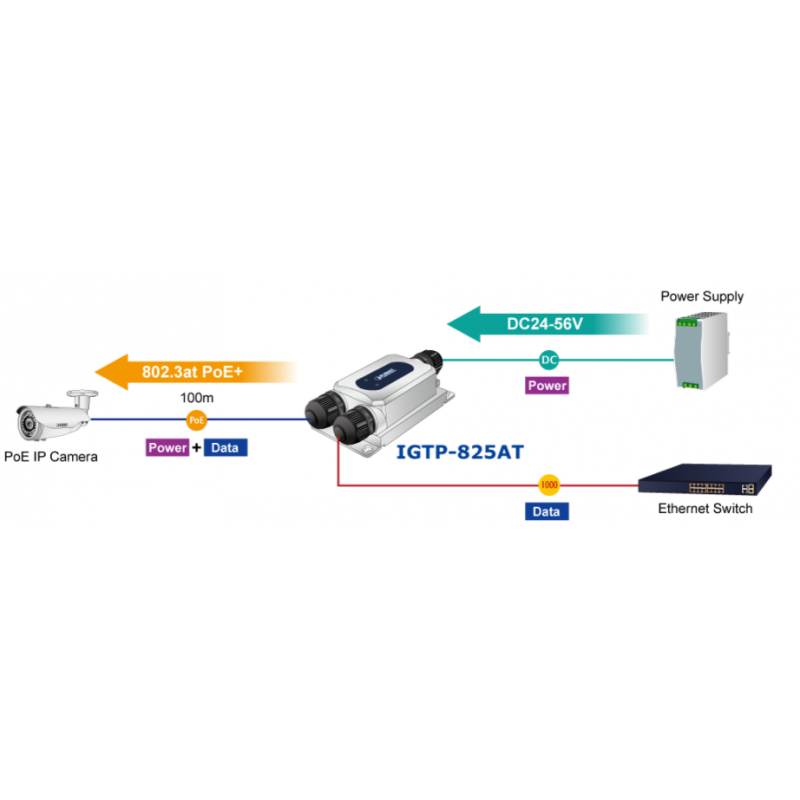

The ETH-RJ45G-P-IP67 is ideal for installing a wide range of outdoor PoE devices such as outdoor PoE Access Points, outdoor PoE IP cameras, outdoor PoE IP intercoms and many more.
The ETH-RJ45G-P-IP67 is equipped with 3 waterproof cable glands for direct mounting. Combined with a waterproof cable gland, it can make the general connector weatherproof and provides a tight and strong connection. Moreover, it comes with the industrial protection rating of IP67, capable of resisting moisture, dirt, dust, shock, vibration, heat and cold.
Environmentally hardened design with IP67 rated aluminum housing provides the ETH-RJ45G-P-IP67 with a high level of immunity to electromagnetic interference and wide temperature capability, and can protect itself against the ingress of dust and water. All these features ensure the highest level of reliability for mission-critical applications in any harsh environment.
