Media converter for fiber RJ45, RJ45 10 / 100Mbit, 100Mbit multi mode fiber, SC, -40 to +75°C
Media converter for 100Mbit Multi Mode Fiber SC
RJ45 10/100Mbit
Fiber 100Mbit 62.5/125my and 50/125my
-40 to +75°C
12 - 48 VDC Redundant PSU input
WDN media converter for 1-core fiber, Singlemode SC.
1 x RJ45 10/100 / 1000Base-TX | 1 x 1-core (simples) single mode fiber with SC
Must be used with ETH-RJ45G-WDM SA
Up to 15 km
WDM wavelenght-division-multiplexing - only for simplex fiber cable
Must be WDM converter at both ends of the fiber

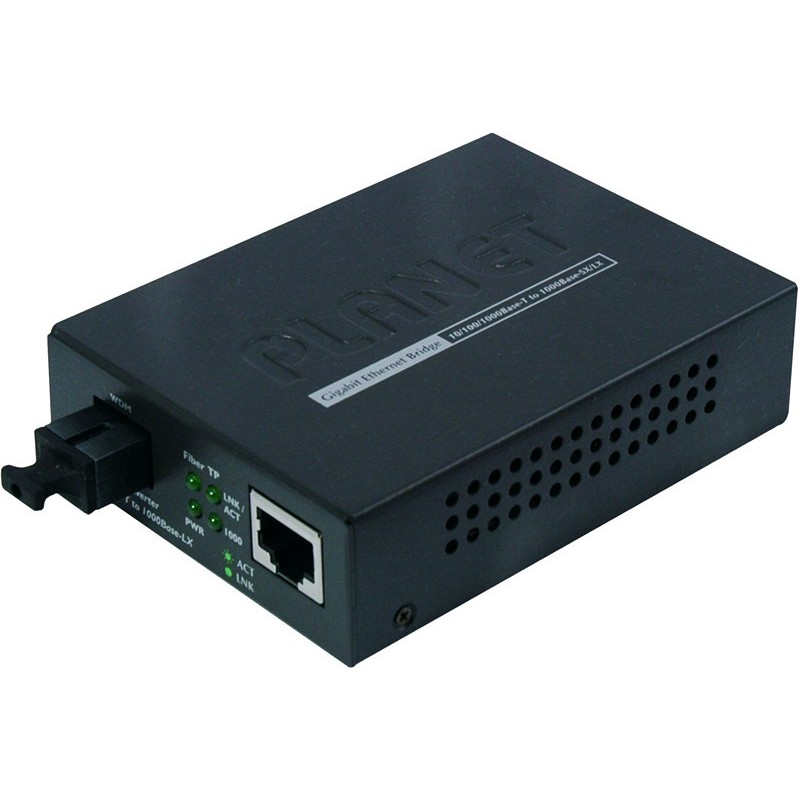

Gigabit Ethernet for fiber WDM converter.
With WDM, only 1 fiber conductor is used for full duplex Gigabit.
With WDM, wavelength-division multiplexing, only 1 fiber conductor is used to send data both ways simultaneously.
Must be used with ETH-RJ45G-WDM-SA
Media converter for 100Mbit Multi Mode Fiber SC
RJ45 10/100Mbit
Fiber 100Mbit 62.5/125my and 50/125my
-40 to +75°C
12 - 48 VDC Redundant PSU input
1 x 10/100 / 1000BASE-T RJ45 IEEE 802.3bt PoE ++ output
2 x SFP slot 1000BASE-X and 100BASE-FX TC-dual mode
PoE Power up to 95 watts to PoE port
Provides 54VDC of the RJ45 Ethernet cable for devices with Ethernet PoE port
Automatic detection of IEEE 802.3bt-equipment United Protects devices from being damaged by incorrect installation
Remove Power supply up to 100 meters
IEEE 802.3af / at / bt splitter devices compatible
Layer 2 features
DIP switch: Selecting the standard / Legacy mode
IP30 metal housing
DIN rail and wall mounting
12 - 56V DC redundant power with reverse polarity protection
power supply not included
Operating Temperature -40 to 75 ° C,
12 mini slots media converter box / casing
1U rack mounting | 1/10 / 1000M
Dimensions: 485 (W) x 270 (D) x 44.5 (H)
Operating temperature: 0- 50
Media converter for 100/1000Base-X SFP module
Can be powered with PoE+
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
10/100/1000Base-TX
56VDC PSU included.
Mid-span PoE (PSE) (4.5/7.8)
PoE power is max. 30 Watt
Alarm in case of link failure
