Managed media converter RJ45 for fiber. RJ45 Gigabit for 2.5Gbit SFP module

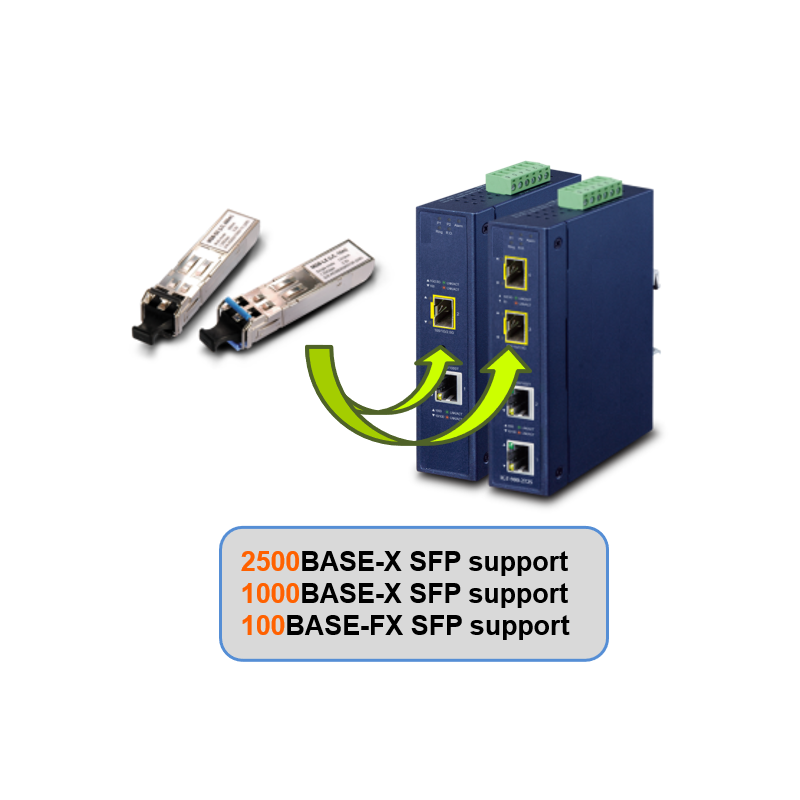

Managed High End Media Converter RJ45 to fiber. RJ45 10/100/1000Mbit. Fiber 100/1000 / 2500Mbit SFP module. -40 - +75°C

Name: Managed High End Media Converter RJ45 to fiber. RJ45 10/100/1000Mbit. Fiber 100/1000 / 2500Mbit SFP module. -40 - +75°C
Brand: Danbit A/S
SKU: ETH-RJ45G-SFP-MS
Price: 1749 DKK
Availability: BackOrder

Top class media converts. Up to 2.6Gbit Fiber SFP
Full Managed with Many Features
RJ45 10/100/1000Mbit
Modbus TCP - Real Time Monitoring

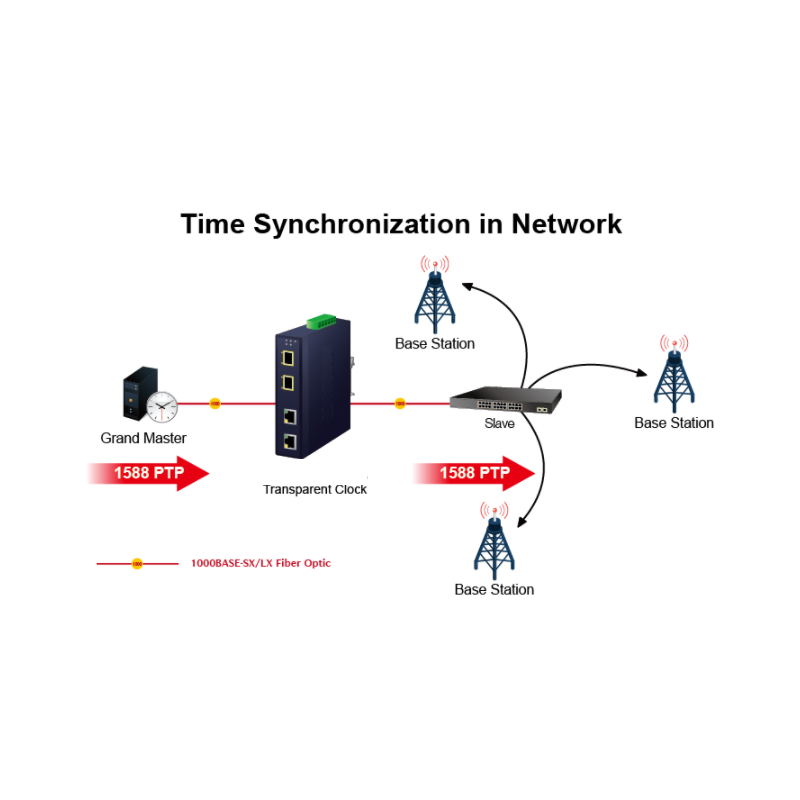

IEEE1588v2 - Precision Time Protocol - Transparent Time
IEEE 802.1 Spank Tree Protocol
Port Mirroring - More to a
Loop Protection - Avoid Broadcast Loop
Supports Igmp Snooping
IP Sourcs Guard - Protects against Spoofing
SMTP, Sylog, Trap
with LFP and LLCF - Link Forward Carry Through.
Supply Voltage: 9 - 48VDC, 24VAC
Operating temperature: -40 - +75°C
DIN bracket
SFP module and power supply is to be purchased

1,749.00 kr

Excl. VAT

Quantity

On the way in

Product number ETH-RJ45G-SFP-MS

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Supreme Managed Mediekonverter til robust miljø
ETH-RJ45G-SFP-MS er en fuldt administreret Gigabit Media Converter til barske miljøer, har en 10/100/1000 Mbps RJ45 kobberport, en 100/1000/2500X SFP-port og redundant strømsystem i et IP30 robust, men kompakt kabinet.
ETH-RJ45G-SFP-MS kan installeres i ethvert vanskeligt miljø, da den fungere stabilt under temperaturområdet fra -40 til 75°C.
Slankt kabinet som ikke behøver plads. Switchen har brugervenlige, men avancerede IPv6/IPv4-administrationsgrænseflader, rigelige L2/L4-switchfunktioner og Layer 3 statisk routing-kapacitet.
Den er med DIN-skinne eller til vægmontering. Med SFP fiberslot kan den anvendes fleksibelt for at optimere forbindelsesafstanden og hastigheden.

ETH-RJ45G-SFP-MS har indbygget Link Fault Pass-through-funktion (LFP). LFP-funktionen inkluderer Link Loss Carry Forward (LLCF) og Link Loss Return (LLR), som begge umiddelbart kan alarmere administratorer hvis der er problem med linkmediet og give en effektiv løsning til overvågning af nettet.

LLCF betyder, at når en enhed forbundet til konverteren og TP-linjen mister forbindelsen, vil konverterens fiberport afbryde transmissionsforbindelsen.
LLR betyder, at når en enhed forbundet til konverteren og fiberlinjen mister forbindelsen, vil konverterens fiberport afbryde transmissionsforbindelsen.
ETH-RJ45G-SFP-MS er ideel til telekommunikation og Carrier Ethernet-applikationer, der understøtter MEF-servicelevering og timing over pakkeløsninger til IEEE 1588 og synkront Ethernet.

SFP transceiver 1000Base-LX, SM, LC, 20 km, 0 - 60°C

SFP - Optical Gigabit Transceiver

1000 Mbit

Mini GBIC Media Converter

LC, for duplex fiber cable

Single Mode

1310 nm

Max. 20 km

336.00 kr

Item Number: CNV-SFP1G-LXP

Physically in stock

1000Mbit SFP module 1000Base-SX, DMM, Multi Mode LC, up to 2km with 50my fiber cable

MiniGBIC/SFP optical transceiver

LC fiber cables, 1310nm

Up to 2km with 50my fiber cable

Typically 500 meters with 62.5my

550.00 kr

Item Number: CNV-SFP1G-SX2P

Physically in stock

24VDC 1.7A (40Watt) power supply from 100-240VAC, DIN rail

AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C

265.00 kr

Item Number: DC24V1.7A-D

On the way in

12VDC 1.25A (15W) power supply. Fine adjustment of voltage. 100 - 240VAC, DIN rail

12 Volt 15 W power supply

DIN rail mounting

Screw terminals

Fine adjustment of output voltage

Working temperature: -30 - +70°C

Dimensions: 90 x 55 x 18 mm

Call +45 56 66 20 20 for price

Item Number: DC12V1.25A-D

On the way in

Other products in same category:

Media converter 10Gbit Fiber SFP to RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit. SFP slot for Single Mode or Multi Mode

10Gbit fiber the RJ45 Media converter
For Single Mode or Multi Mode SFP module
Extended temperature range
1 x RJ45 10G/5G/2.5G/1G/100M BASE-T
1 x 10GBASE-SR/LR SFP slot
The SFP module is standard with an LC connector
Additional SFP module
Supply voltage: 12 - 48VDC
PSU not included
Operating temperature -40 to +75°C
YOUR bracket

2,856.00 kr

Item Number: ETH-RJ45-SFP-WT

Physically in stock

Media Converter Gigabit for single fiber and WDM mode, Multi Mode up to 550m, WDM-B, TX1550nm / RX1310nm, 5VDC

IEEE 802.3 / u / ab 10/100 / 1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI / MDIX in TP Port
Auto Negotiation in TP Port
Flow Control
Link Alarm
Auto & amp; Force Mode Configuration
Dimensions: 71 x 94 x 26 mm for DC5 V, 1.5 A

3,840.00 kr

Item Number: ANR-FCU-3002A-WB-M

Physically in stock

Media converter RJ45 to the fiber. RJ45 10/100/1000Mbit. Fiber 1000Mbit SFP slot Single Mode or Multi Mode. 5VDC

1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C

572.00 kr

Item Number: ETH-RJ45G-SFP

Physically in stock

Media Converter RJ45 for fiber. RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit. Fiber 10Gbit SFP+ slot. 5VDC

Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm

3,142.00 kr

Item Number: ETH-RJ45-10GSFP+

Physically in stock

Media converter for fiber RJ45, RJ45 10 / 100Mbit, 100Mbit multi mode fiber, SC, -40 to +75°C

Media converter for 100Mbit Multi Mode Fiber SC
RJ45 10/100Mbit
Fiber 100Mbit 62.5/125my and 50/125my
-40 to +75°C
12 - 48 VDC Redundant PSU input

990.00 kr

Item Number: ETH-RJ45-SC-PW

On the way in

Media converter RJ45 single core fiber. RJ45 10/100/1000Mbit. Fiber 1000Mbit SC Single Mode - Simplex fiber

WDN media converter for 1-core fiber, Singlemode SC.
1 x RJ45 10/100 / 1000Base-TX | 1 x 1-core (simples) single mode fiber with SC
Must be used with ETH-RJ45G-WDM SA
Up to 15 km
WDM wavelenght-division-multiplexing - only for simplex fiber cable
Must be WDM converter at both ends of the fiber

935.00 kr

Item Number: ETH-RJ45G-WDM-SB

Physically in stock

Media Converter RJ45 for single core fiber WDM mode. RJ45 10/100/1000Mbit. Fiber 1000Mbit SC - Simplex Fiber

10/100 / 1000Base-TX to 1000Base-LX single mode, 15 km
WDM Wavelength Division Multiplexing - Simplex fiber cable only
Must be WDM converter at both ends of the fiber.

863.00 kr

Item Number: ETH-RJ45G-WDM-SA

On the way in

Media converter RJ45 to fiber. RJ45 10/100/1000Mbit. Fiber 100/1000Mbit SFP slot, Single Mode and Multi Mode, WDM -40 to +75°C

100/1000Mbit fiber media converter RJ45
1 x RJ45 10/100/1000Mbit BASE-T
1 x SFP slot 100 / 1000Mbit BASE-X dual mode
Supports WDM SFP modules (Bi-Directional data 1 on fiber)
WDM SFP module have wavelengths 1310nm and 1550nm
IEEE 802.3 / 802.3u / 802.3ab / 802.3z
IP30 metal housing
DIN rail and wall mounting design
Supply voltage: 12VDC to 48VDC polarity protected
AC supply voltage: 24VAC / 50Hz
PSU not included
Operating temperature: -40°C to +75°C

935.00 kr

Item Number: ETH-RJ45G-SFP-T

On the way in

Managed High End Media Converter RJ45 to fiber. RJ45 10/100/1000Mbit. Fiber 100/1000 / 2500Mbit SFP module. -40 - +75°C
