Media converter 10Gbit Fiber SFP to RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit. SFP slot for Single Mode or Multi Mode

10Gbit fiber the RJ45 Media converter
For Single Mode or Multi Mode SFP module
Extended temperature range
1 x RJ45 10G/5G/2.5G/1G/100M BASE-T
1 x 10GBASE-SR/LR SFP slot
The SFP module is standard with an LC connector
Additional SFP module
Supply voltage: 12 - 48VDC
PSU not included
Operating temperature -40 to +75°C
YOUR bracket

ETH-RJ45-SFP-WT
4,533.33 NOK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

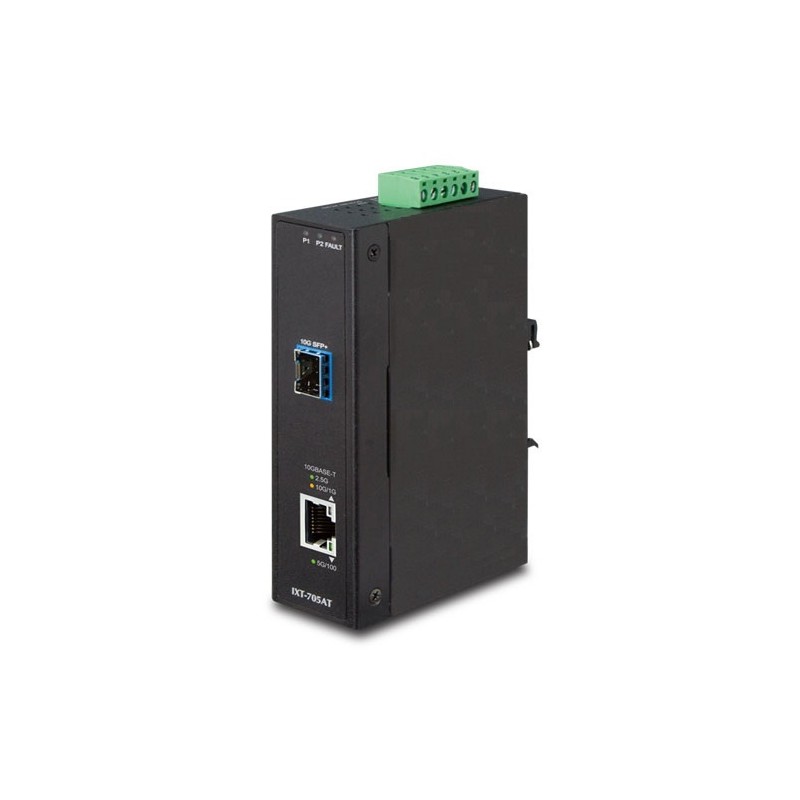

ETH-RJ45-SFP-WT is a 10G Ethernet Media Converter that delivers 10G Ethernet Media, providing non-blocking wire speed and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with a 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and a 10GBASE-X SFP + fiber optic interface delivered in an IP30 rugged but compact size case with redundant power supply. The IXT-705AT is ideal for wide range of applications from conversion to copper to fiber media where 10Gigabit bandwidth is required in demanding climatic environments with high temperature from -40 to 75 degrees C.

Alarm
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Dimensioner
32 x 87 x 135mm
Driftstemperatur
-40C° til 75C°
ESD
6KV DC
IP-Tæthed
IP30
Montering
DIN rail kit og wall mount
Porte
1 x 10G/5G/2,5G/1G/100BASE-T RJ45, 1 x 10GBASE-X SFP+
Strømforsyning
Strømforsynes af 12~48V DC eller 24V AC (medfølgende ikke)
Understøtter
IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3bz 2.5G/5GBASE-T, IEEE 802.3an 10GBASE-T, IEEE 802.3ae 10Gbps Ethernet, IEEE 802.3x full-duplex flow control
Weight
458g
