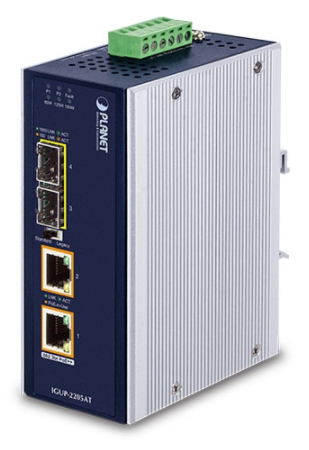

2 + 2 port Media Converter with 2 x SFP 100/1000Mbit, 2 x 10/100 / 1000Mbit RJ45, Multimode or Single Mode PoE++, 12 -56VDC

2 x 10/100 / 1000BASE-T RJ45 IEEE 802.3bt PoE ++ output
2 x SFP slot 1000BASE-X and 100BASE-FX TC-dual mode
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
PoE++ power up to 95 watts of PoE
Provides 54VDC of the RJ45 Ethernet cable for devices with Ethernet PoE port
Automatic detection of IEEE 802.3bt equipment - does not protect PoE equipment at damage
IEEE 802.3af / at / bt splitter devices compatible
DIP switch: Selecting the standard / Legacy mode
DIN rail and wall mounting
12 - 56V DC redundant power with reverse polarity protection Power supply
purchased
Dimensions: 153 x 85 x 55 mm
Operating temperature -40 to +75°C

ETH-RJ45G-2S2LP
2,910.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

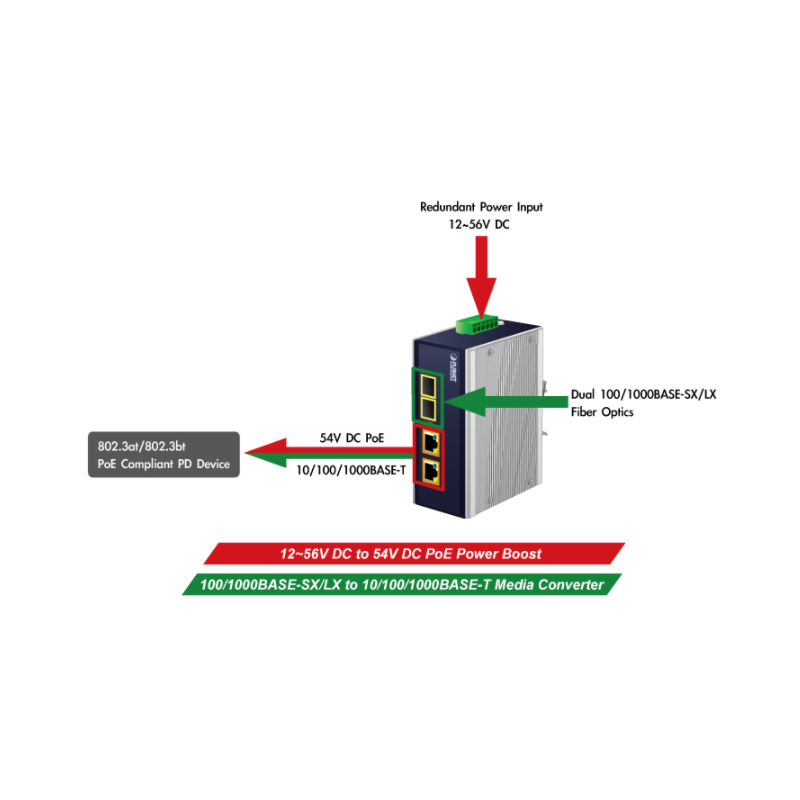

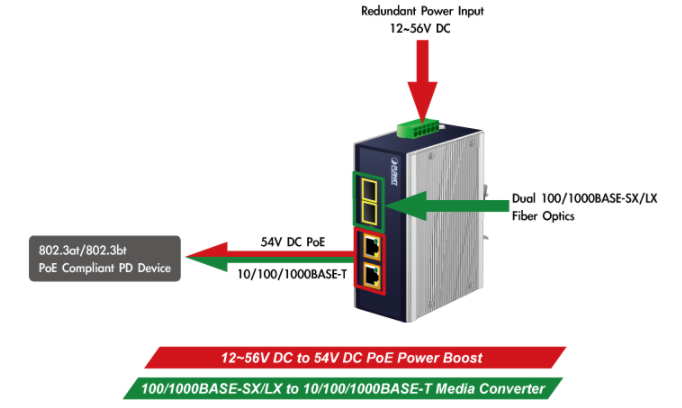

ETH-RJ45G-2S2LP Industrial Gigabit Media Converter combines Ethernet media conversion (from 1000BASE-X to 10/100 / 1000BASE-T) with 802,3bt Power over Ethernet Plus Plus (PoE ++) injektorfunktion to deliver up to 95 watt power and high data transmission speed to PDs (powered devices) installed in a remote area, which requires adequate and reliable power input. Its 1000BASE-X fiber optic uplink port allows long-distance, high-speed and stable data transmission to an external core network. The special and practical power system ETH-RJ45G-SFP2P + supports dual 12 ~ 56V DC power inputs for power redundancy and operational flexibility.

ETH-RJ45G-2S2LP can be placed in almost any difficult environment by being able to work under the temperature of -40 to 75 degrees C and with a sturdy IP30 enclosure.

Rev: LO

Dimensioner
135 x 85 x 55 mm
Kabinet
Metal, IP30, DIN-beslag
PoE
12VDC - 56VDC 205Watt
PoE
End-span og Mid-span, IEEE 802.3bt Type 4
