12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
100 / 1000Mbit Media Converter with extended temperature
1 x RJ45 10/100 / 1000BASE-T
1 x SFP slot 100 / 1000Mbit
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.

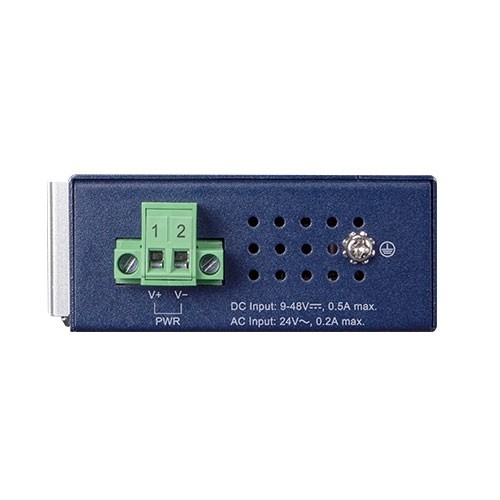

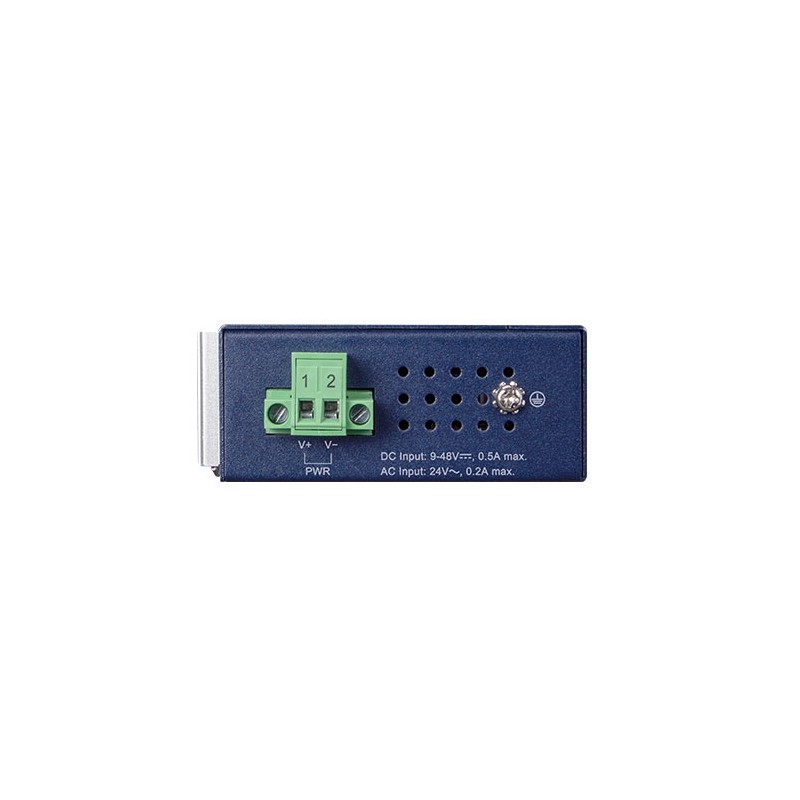

Supply voltage: 9 - 48VDC redundant power
Can also be connected to 24VAC
consumption: 2Watt
Power not supplied
Dimensions: 104 x 70 x 30 mm
IP30 metal housing
DIN rail and wall mounting
Weight: 251G
operating temperature -40 to +75°C
ETH-RJ45G-SFP-MG Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to ensure continuous operation in harsh environments, such as applications for transportation, factory, outdoor and places where extreme low or high temperatures may be experienced. In addition, the ETH-RJ45G-SFP MG compatible with 100 Mbps and 1000 Mbps SFP transceivers in order to provide a strong, stable and long-distance connection and flexible industrial network distribution.
Rev: LO
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C
2 x 10/100 / 1000BASE-T RJ45 IEEE 802.3bt PoE ++ output
2 x SFP slot 1000BASE-X and 100BASE-FX TC-dual mode
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
PoE++ power up to 95 watts of PoE
Provides 54VDC of the RJ45 Ethernet cable for devices with Ethernet PoE port
Automatic detection of IEEE 802.3bt equipment - does not protect PoE equipment at damage
IEEE 802.3af / at / bt splitter devices compatible
DIP switch: Selecting the standard / Legacy mode
DIN rail and wall mounting
12 - 56V DC redundant power with reverse polarity protection Power supply
purchased
Dimensions: 153 x 85 x 55 mm
Operating temperature -40 to +75°C
WDN media converter for 1-core fiber, Singlemode SC.
1 x RJ45 10/100 / 1000Base-TX | 1 x 1-core (simples) single mode fiber with SC
Must be used with ETH-RJ45G-WDM SA
Up to 15 km
WDM wavelenght-division-multiplexing - only for simplex fiber cable
Must be WDM converter at both ends of the fiber
Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm
1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C
