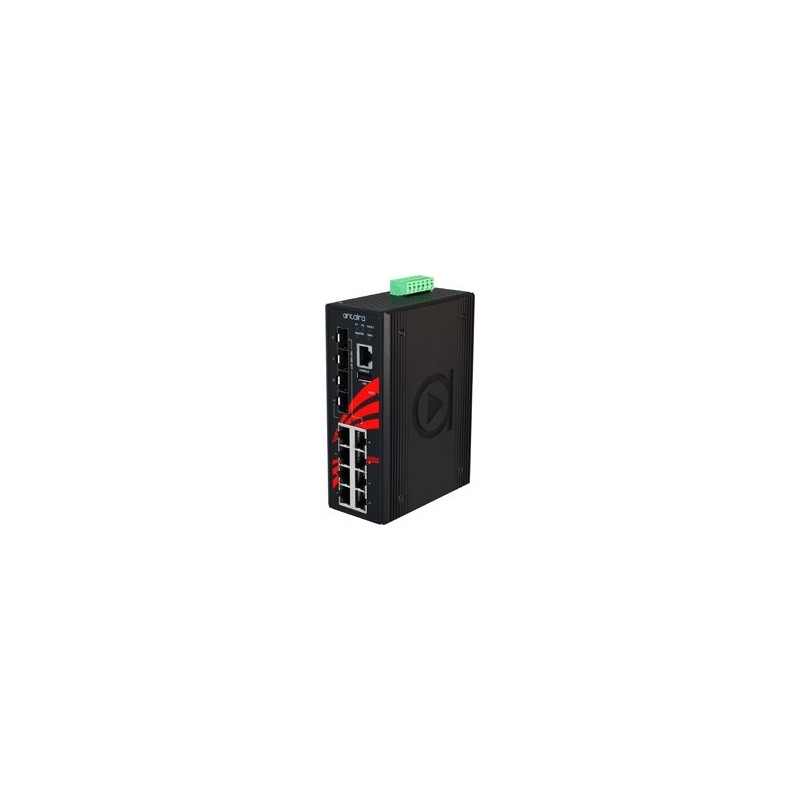

8 ports Industrial 10/100 / 1000Mbit PoE + 4 x 100 / 1000Mbit SFP switch, DIN rail, -40 - + 75 ° C, 48 - 55VDC

8 x 10/100/1000Mbps RJ45 med PoE+ (30W)
4 x 100/1000Mbps SFP slot
Netværk redundancy: STP/RSTP/MSTP, og G.8032 ERPS (Recovery Time <50ms)
IPv4/IPv6, og DHCP option 66/67/82
Modbus/TCP protocol for Device Management og monitoring
Konfiguration: Web Console, Telnet, CLI Command
PoE, ping alarm funktion for PoE porte
IGMP v1/v2 for Multicast Traffic Filtering
Udvidet netværk security med IEEE802.1X, SNMP v1/v2c/v3, HTTPS, og SSH/SSL
Port lock function for unauthoriserede address blokering
Automatisk advarsel via e-mail og via relæudgang
Temperatur: -40 - +75°C

ANR-LMP-1204G-SFP-T
8,504.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Antaira Technologies' LMP-1204G-SFP is a 12-port industrial PoE + managed Ethernet switch that is embedded with 8x10 / 100 / 1000Tx Ethernet ports that support IEEE802.3at / off for maximum or 30W / port, and 4 x 100 / 1000Fx SFP fiber ports that support either Single or Multi-Mode modules. The LMP-1204G-SFP is a fully manageable layer 2 ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market's open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X / HTTPS / SSH / SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMP-1204G-SFP is IP30 rated, DIN rail mountable, and has an extended operating temperature range of -40 ° C to 75 ° C. It also provides high EFT and ESD protection for industrial networking applications, such as, power / utility, water / wastewater, oil / gas / mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.

Dimensioner
54 x 142 x 99mm
Driftstemperatur
-40 - +75
Fiber
4 x 100/1000Mbps SFP slot
Forsyning
48 - 55VDC, redundant
Kabinet
Metal, IP30, DIN-beslag, vægbeslag
Maks. effekt
15 Watt system, 255 Watt ved PoE+ på alle porte
Netværk
8 x 10/100/1000Mbps RJ45, PoE+ (30 Watt per port)
Protokol
IGMP, SNMP, TFTP, SNTP, SMTP, Syslog, Modbus/TCP. IPv4/6
