KVM extender for VGA, USB K/M over Cat 5/5e/6 UTP
Up to 300 meters distance from a computer
1920 x 1440 @ 60Hz
2 users can share 1 computer, locally and remotely
Ideal for professional video applications
Only supports the standard USB HID keys
USB ONLY for keyboard and mouse (not touch)
No drivers needed or software required
Rotary knob adjustment of brightness and contrast (color)
Dimensions: 95 x 97 x 28mm
Supply voltage: 9~12VDC, PSU included
VGA + audio Extender set via cat 6A UTP cable.
A transmitter with VGA in and VGA out to local screen
1 x RJ45 connector to point to point cable to receiver
Receiver (remote- Unit) with 2 x VGA output
No software or drivers
Gain (Equalization) Control selector for optimal image
2 sets can provide a total distance of 250m
resolution: 1280 x 1024 with cat 6A cable of high quality.
Ideal for exhibitions, shops, courtroom, bus station, etc.
Support sound AUX
Do not connect to network switch

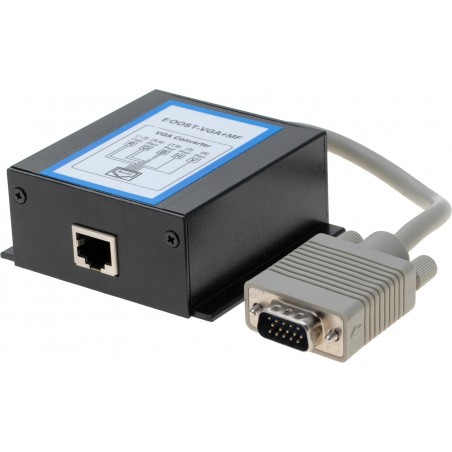

Passive VGA Extender Over Point to Point Network Cable
Complete Set With Sender and Receiver Box
Up to 100m. Just through PDS cable (paired cable) - Do not connect network switch
Max. 1280 x 1024 pixel
Balun principle - unbalanced / balanced
Critical with network cable quality.
Supports only UTP network cables, cat. 6 or better
More noise immunity than active extenders.
No power required
VGA Extender over TCP / IP or Point to Point.
Up to 200 meters over CAT 5e / 6 patch cable.
1920 x 1080 @ 60Hz
3.5mm Audio
USB for keyboard and mouse only!
Audio frequency: 32kHz, 44.1kHz, 48kHz
Sound format: DTS-HD / Dolby true HD / LPCM7.1 / DTS / DSD
Operating temperature: -5 ~ 70 ° C
Dimensions: 104 x 92 5 x 24 mm
Max. 1920 x 1200 pixels
1 x KVM Extender Console Unit - Remote module
1 x KVM Extender Computer Unit - Local module
1 x 12V DC Power supply included for remote module
1 x KVM cable ( VGA)
USB (2 on Console Unit, 2 on PC Unit)
Only VGA and USB Mouse / Keyboard Transfer
Does Not Transmit Touch from Monitor
USB is only for mouse and keyboard
For point RJ45 network cable up to 200 meters
with Edid Emulation
2 controls for the same PC
Video adjustment
